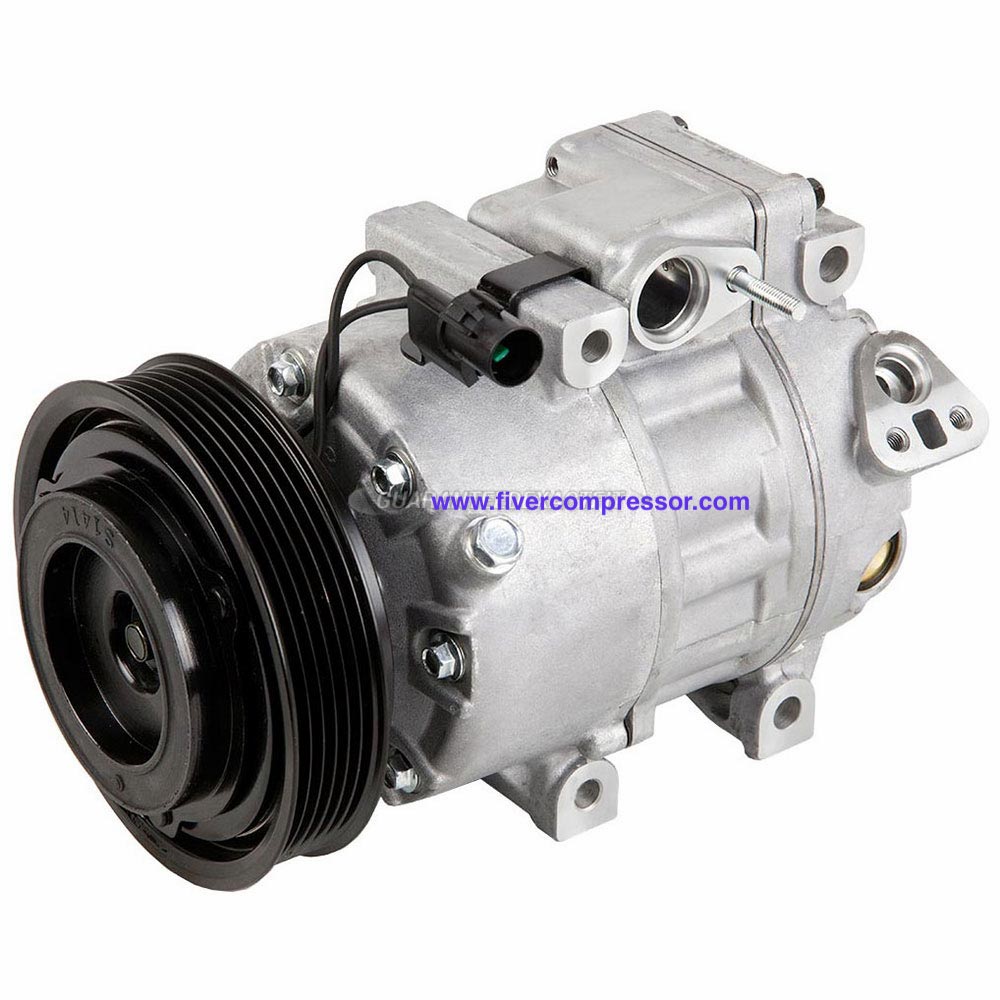

A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
Auto Compressor Assembly 97701-2B200; Hyundai A/C Compressor; ac compressor for Hyundai Santa Fe GLA V6 2.7L 2006-2009
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
VS18M 6PK Auto Compressor Assembly 97701-2B200 F500-BP8AA-01 for Hyundai Santa Fe GLS 2.7L V6 2006-2009

| Specifications | |
|---|---|
| Compressor Oil | PAG 46 |
| Compressor Pulley Diam. | 4 15/16" |
| Compressor Pulley Nr. Of Grooves | 6 |
| Compressor Refrigerant | R134a |
| Compressor Style | VS18 |
| Specialty | PREFILLED PAG OIL |
| Year | Make | Model | Body & Trim Engine & Transmission | |
|---|---|---|---|---|
| 2009 | Hyundai | Santa Fe | GLS 2.7L V6-Gas | |
| 2008 | Hyundai | Santa Fe | GLS 2.7L V6-Gas | |
| 2007 | Hyundai | Santa Fe | GLS 2.7L V6-Gas | |
| 2006 | Hyundai | Santa Fe | GLS 2.7L V6-Gas |
Alternate/OEM Part Number(s): 977011U100, 977011U100RU, 977011U200, 977011U250, 977012B200, 977012B201, 977012B202, 977012B252, 977012B300, 977012B350, 977013F400, 977013F400RU, 977013K120, 977013K220
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
