Hyundai A/C compressor

Type VS18E Hyundai Santa Fe and Kia Sorento Auto A/C Compressor 977011U600, 977011U650 6PV · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

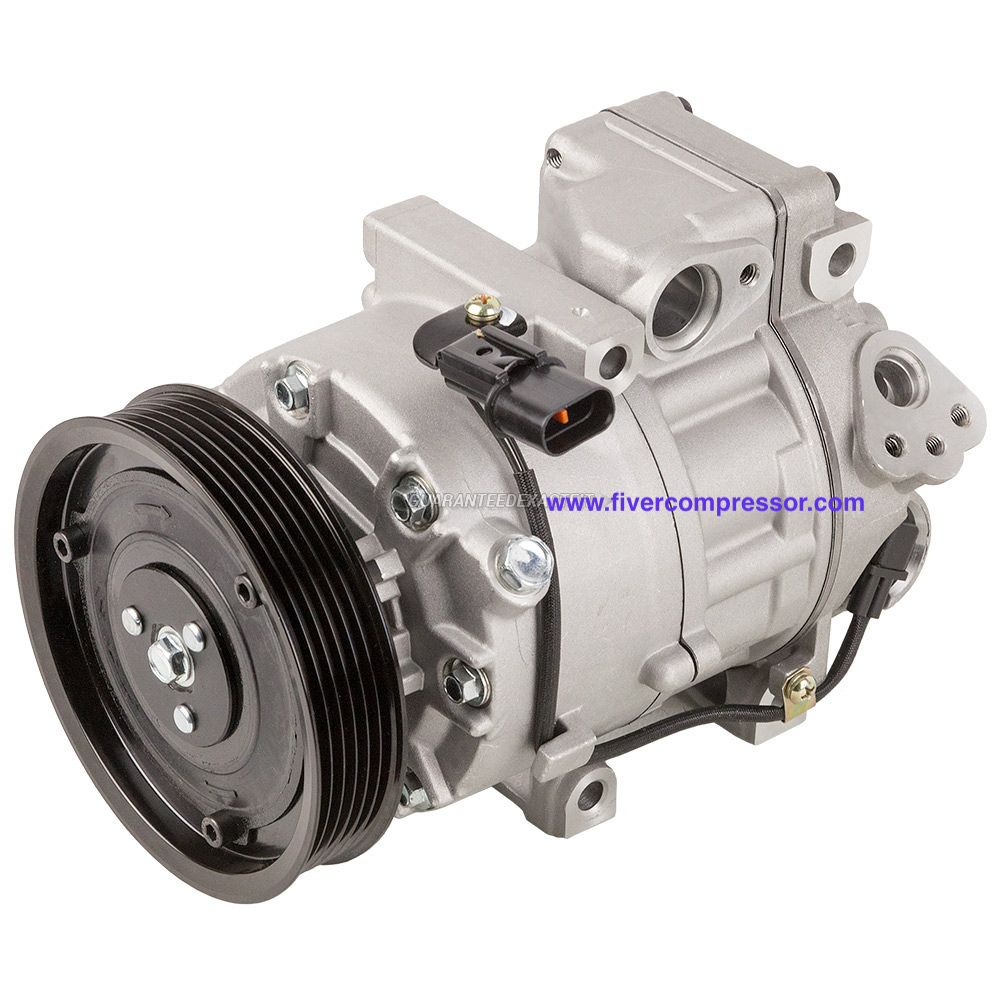

Hyundai VS18E A/C compressor

Hyundai Santa Fe and Kia Sorento Auto A/C Compressor 977011U600, 977011U650

OE / Part number
977011U600, 977011U650

Car AC Compressor Supplier; A/C Compressor for Hyundai Santa Fe; Kia Sorento ac compressor; Compressor Assy for Car

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS18E
Pulley Grooves6PV

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS18E
Pulley Grooves6PV
Coil Voltage12V
OE / Part number977011U600, 977011U650

§ 04

Product details

Hyundai Santa Fe and Kia Sorento Auto A/C Compressor 977011U600, 977011U650

Specifications
Clutch Maximum Diameter 119.0 MM
Compressor Mount Hole Quantity 4
Compressor Type VS18
Mounting Type Bolt Tangent
Oil Included in Compressor (cc) 120 cc
Oil Included in Compressor (oz) 4.1 oz
Oil Type FD48X6
Pulley Belt Type Serpentine
Refrigerant Type R134a

Vehicle Fitment


2012 Kia Sorento 2.4L Engine - with Rear AC

2014 Kia Sorento 2.4L Engine

2015 Kia Sorento 2.4L Engine

2013 Kia Sorento 2.4L Engine - with Rear AC


2013 Hyundai Santa Fe Sport 2.0L Eng.

2014 Hyundai Santa Fe Sport 2.0L Eng.
2015 Hyundai Santa Fe Sport 2.0L Eng.
2016 Hyundai Santa Fe Sport 2.0L Eng.

2017 Hyundai Santa Fe Sport 2.0L Eng.

2018 Hyundai Santa Fe Sport 2.0L Eng.

2013 Hyundai Santa Fe Sport 2.4L Eng.

2014 Hyundai Santa Fe Sport 2.4L Eng.

2015 Hyundai Santa Fe Sport 2.4L Eng.

2016 Hyundai Santa Fe Sport 2.4L Eng.

2017 Hyundai Santa Fe Sport 2.4L Eng.

2018 Hyundai Santa Fe Sport 2.4L Eng.

Alternate/OEM Part Number(s): 977011U600, 977011U650
