Hyundai A/C compressor

Type 6SES14C 6SES14C Type 6PK Auto AC Compressor 97701C2000 for Hyundai Sonata 2015-2018 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

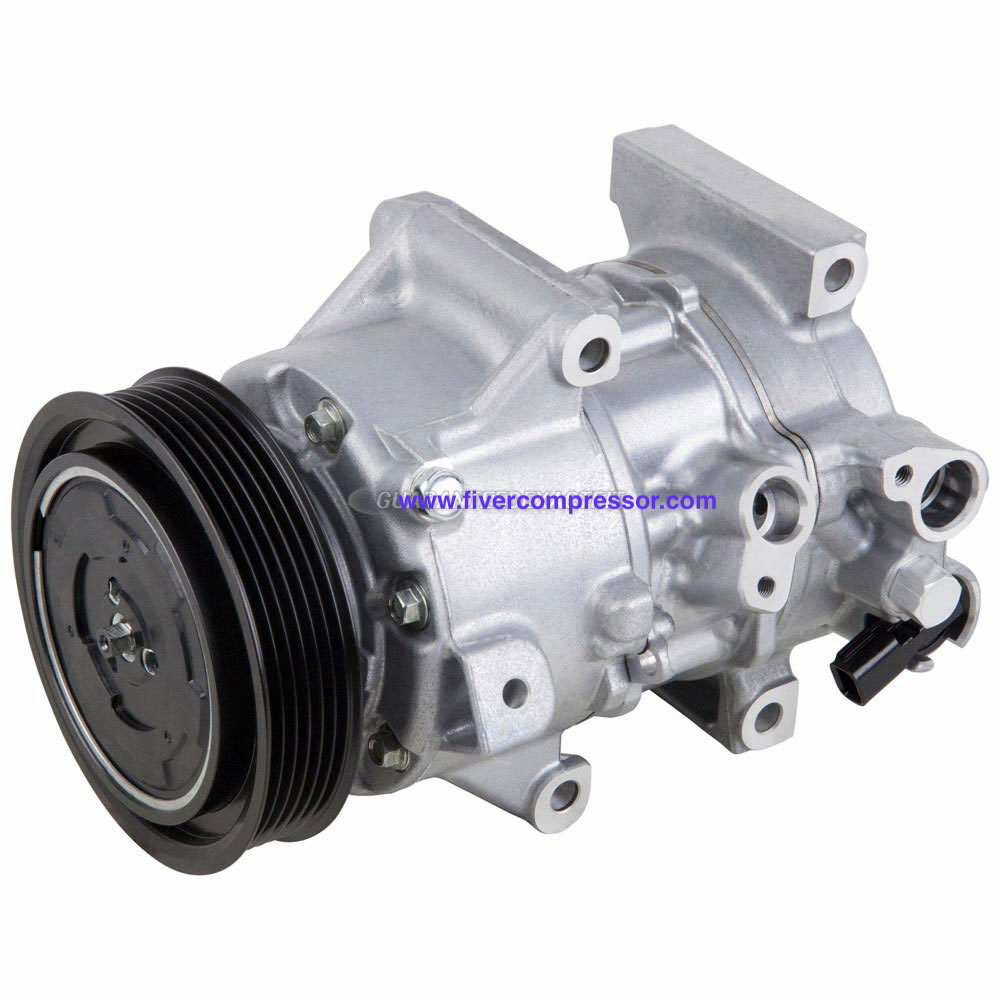

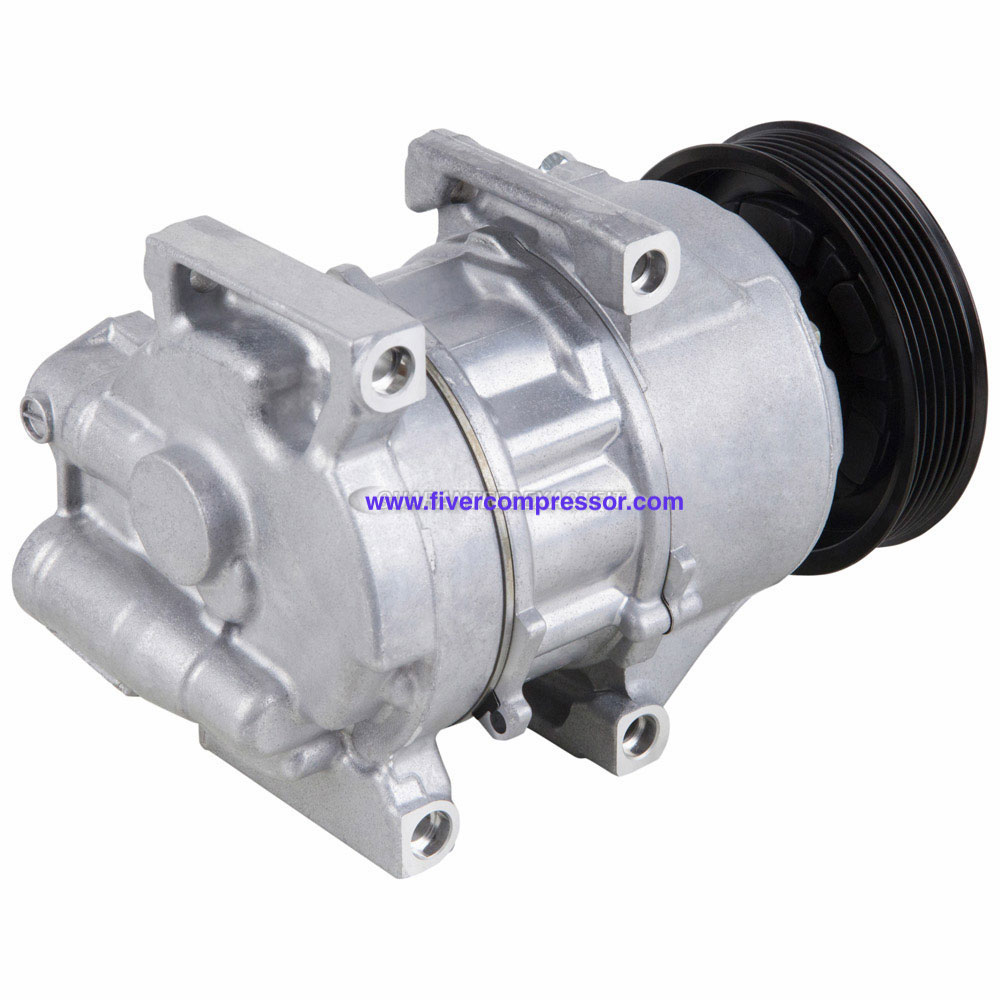

Hyundai 6SES14C A/C compressor

6SES14C Type 6PK Auto AC Compressor 97701C2000 for Hyundai Sonata 2015-2018

OE / Part number
97701C2000

This 6PK Auto A/C Compressor is an OE quality replacement for 97701C2000 Hyundai Sonata

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type6SES14C
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type6SES14C
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701C2000

§ 04

Product details

6SES14C Type 6PK Auto AC Compressor 97701C2000 for Hyundai Sonata 2015-2018

 Specifications
Compressor MountDirect
Compressor Style6SEU14C
Discharge Port (MM)16
Grooves6
Suction Port Diameter (MM)18

Switch Port (Y/ N)

Pulley Diameter

Compatible Refrigerant Oil Type

Refrigerant Type

Yes

115MM

PAG46

R134a

Vehicle Fitment


2015 Hyundai Sonata Limited
2016 Hyundai Sonata Limited
2017 Hyundai Sonata Limited

2015 Hyundai Sonata Limited 2.0T

2016 Hyundai Sonata Limited 2.0T

2017 Hyundai Sonata Limited 2.0T

2015 Hyundai Sonata SE

2016 Hyundai Sonata SE

2017 Hyundai Sonata SE

2015 Hyundai Sonata Sport

2016 Hyundai Sonata Sport

2017 Hyundai Sonata Sport

2015 Hyundai Sonata Sport 2.0T

2016 Hyundai Sonata Sport 2.0T

2017 Hyundai Sonata Sport 2.0T


Alternated OE: 97701C2000
