A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
VS18M 6PK Auto A/C Compressor 977013K125 for Hyundai Veracruz and for Kia Amanti 2007-2009 — aftermarket A/C compressor OE 977013K125 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

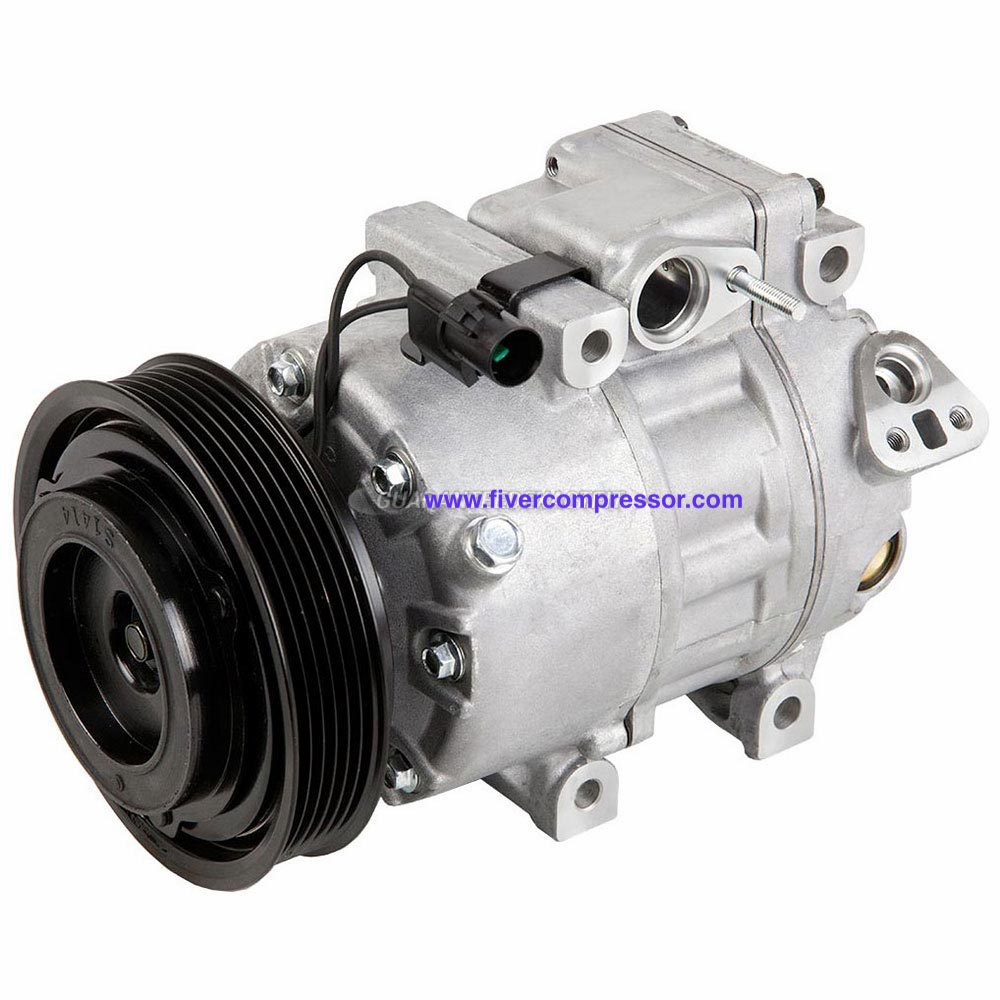

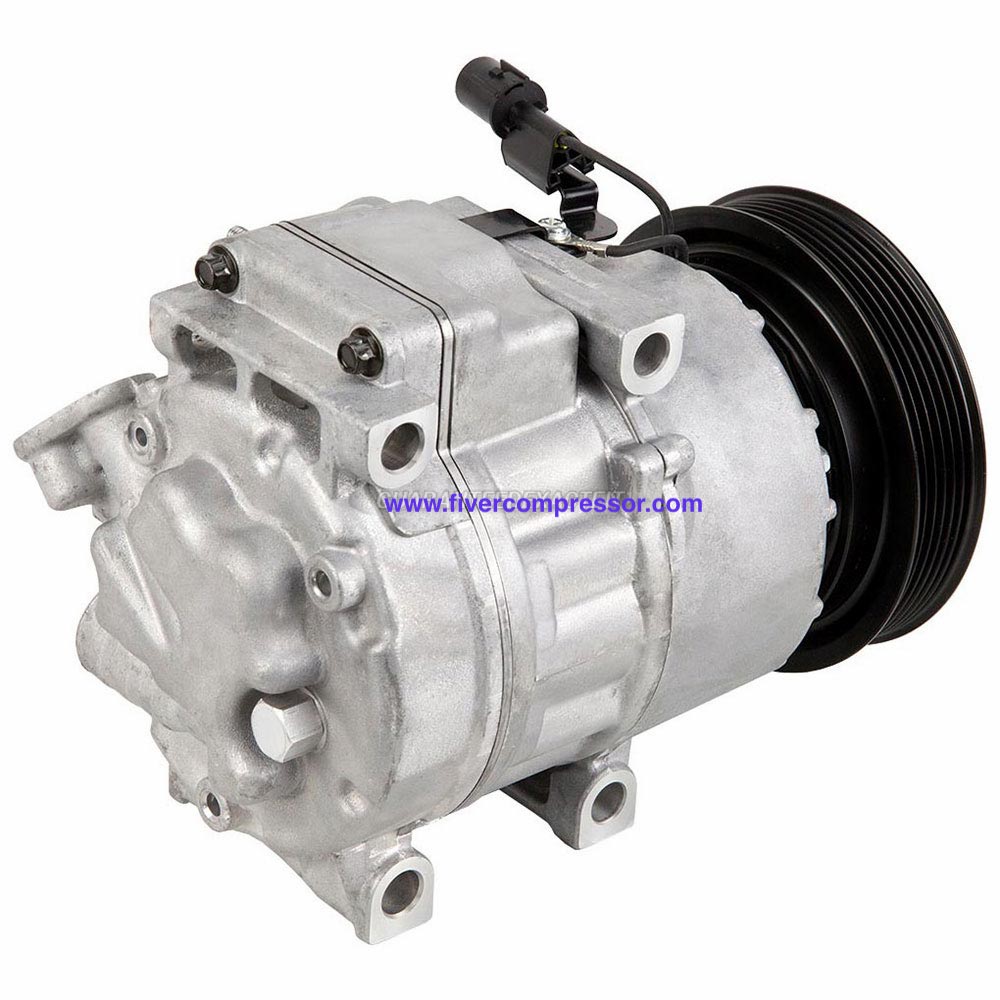

VS18M 6PK Auto A/C Compressor 977013K125 for Hyundai Veracruz and for Kia Amanti 2007-2009

| Specifications | |
|---|---|
| Clutch Maximum Diameter | 125.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Compressor Type | HS17 |
| Mounting Type | Bolt Tangent |
| Oil Included in Compressor (cc) | 150 cc |
| Oil Included in Compressor (oz) | 5.1 oz |
| Oil Type | PAG-FD46XG |
| Pulley Belt Type | Serpentine |
Refrigerant Type Pulley Grooves | R134a 6PK |
2006 Hyundai Azera All Models
2007 Hyundai Azera All Models
2008 Hyundai Azera All Models
2009 Hyundai Azera All Models
2010 Hyundai Azera All Models
2011 Hyundai Azera All Models
2007 Hyundai Santa Fe 2.7L Engine
2008 Hyundai Santa Fe 2.7L Engine
2009 Hyundai Santa Fe 2.7L Engine
2007 Hyundai Santa Fe 3.3L Engine
2008 Hyundai Santa Fe 3.3L Engine
2009 Hyundai Santa Fe 3.3L Engine
2006 Hyundai Sonata 2.4L Engine
2007 Hyundai Sonata 2.4L Engine
2008 Hyundai Sonata 2.4L Engine
2006 Hyundai Sonata 3.3L Engine
2007 Hyundai Sonata 3.3L Engine
2008 Hyundai Sonata 3.3L Engine
2007 Hyundai Veracruz All Models
2008 Hyundai Veracruz All Models
2009 Hyundai Veracruz All Models
2010 Hyundai Veracruz All Models
2011 Hyundai Veracruz All Models
2012 Hyundai Veracruz All Models
2007 Kia Amanti All Models
2008 Kia Amanti All Models
2009 Kia Amanti All Models
2006 Kia Optima 2.4L Engine - From Production Date 05/1/06
2006 Kia Optima 2.4L Engine - From Production Date 10/1/05 to 04/31/06
2006 Kia Optima 2.7L Engine - From Production Date 05/1/06
2006 Kia Optima 2.7L Engine - From Production Date 10/1/05 to 04/31/06
2007 Kia Optima All Models
2008 Kia Optima All Models
Alternate/OEM Part Number(s):9770138170, 9770138171, 9770138171RU, 977013K125, 977013K125RU
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
