Hyundai A/C compressor

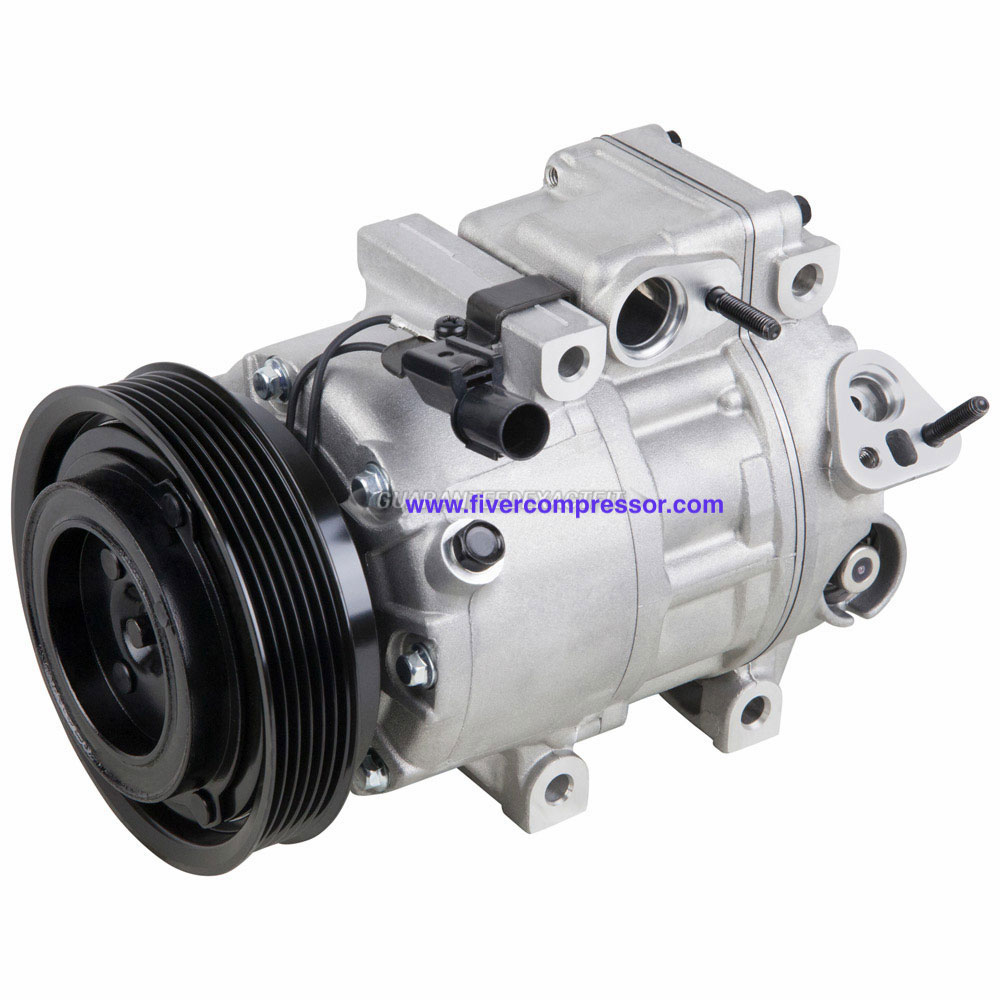

VS18M 6PK Auto A/C Compressor 97701-2B300 for Hyundai Azera Hyundai Sonata and Kia Optima PV6 · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Hyundai A/C compressor

VS18M 6PK Auto A/C Compressor 97701-2B300 for Hyundai Azera Hyundai Sonata and Kia Optima

OE / Part number
97701-2B300, 977011U200, 977011U250, 977012B100, 977012B101, 977012B201, 977012B250, 977012B251, 977012B300, 977012B350, 977013F400, 977013F400RU, 977013K125, 977013K220

VS18M 6PK Auto A/C Compressor 97701-2B300 for Hyundai Azera Hyundai Sonata and Kia Optima — aftermarket A/C compressor OE 97701-2B300 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Pulley GroovePV6
Coil Voltage12V

Clutch and fitment

modelCompressor Tpe VS18M

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Pulley GroovePV6
Coil Voltage12V
modelCompressor Tpe VS18M
OE / Part number97701-2B300, 977011U200, 977011U250, 977012B100, 977012B101, 977012B201, 977012B250, 977012B251, 977012B300, 977012B350, 977013F400, 977013F400RU, 977013K125, 977013K220
ApplicationModel: Compressor Tpe VS18M

§ 04

Product details

VS18M 6PK Auto A/C Compressor 97701-2B300 for Hyundai Azera Hyundai Sonata and Kia Optima

 Specifications
Clocking12
Compressor Mounttangent
Compressor StyleVS18
Control Valve (Y/ N)Y
Diode (Y/ N)N
Discharge Port (MM)14
Gauge Line (MM)91
Grooves6
Pulley Diameter (MM)120
Suction Port (MM)20
Voltage12
Vehicle Fitment

2006 Hyundai Azera All Models
2007 Hyundai Azera All Models
2008 Hyundai Azera All Models
2009 Hyundai Azera All Models

2010 Hyundai Azera All Models

2011 Hyundai Azera All Models


  • 2007 Hyundai Santa Fe 2.7L Engine
  • 2008 Hyundai Santa Fe 2.7L Engine
  • 2009 Hyundai Santa Fe 2.7L Engine
  • 2007 Hyundai Santa Fe 3.3L Engine
  • 2008 Hyundai Santa Fe 3.3L Engine
  • 2009 Hyundai Santa Fe 3.3L Engine
  • 2006 Hyundai Sonata 2.4L Engine
  • 2007 Hyundai Sonata 2.4L Engine
  • 2008 Hyundai Sonata 2.4L Engine
  • 2006 Hyundai Sonata 3.3L Engine
  • 2007 Hyundai Sonata 3.3L Engine
  • 2008 Hyundai Sonata 3.3L Engine
  • 2007 Hyundai Veracruz All Models
  • 2008 Hyundai Veracruz All Models
  • 2009 Hyundai Veracruz All Models
  • 2010 Hyundai Veracruz All Models
  • 2011 Hyundai Veracruz All Models
  • 2012 Hyundai Veracruz All Models

  • 2007 Kia Amanti All Models
  • 2008 Kia Amanti All Models
  • 2009 Kia Amanti All Models
  • 2006 Kia Optima 2.4L Engine - From Production Date 05/1/06
  • 2006 Kia Optima 2.4L Engine - From Production Date 10/1/05 to 04/31/06
  • 2006 Kia Optima 2.7L Engine - From Production Date 05/1/06
  • 2006 Kia Optima 2.7L Engine - From Production Date 10/1/05 to 04/31/06
  • 2007 Kia Optima All Models
  • 2008 Kia Optima All Models

Alternate/OEM Part Number(s): 977011U200, 977011U250, 977012B100, 977012B101, 977012B201, 977012B250, 977012B251, 977012B300, 977012B350, 977013F400, 977013F400RU, 977013K125, 977013K220
