Hyundai A/C compressor

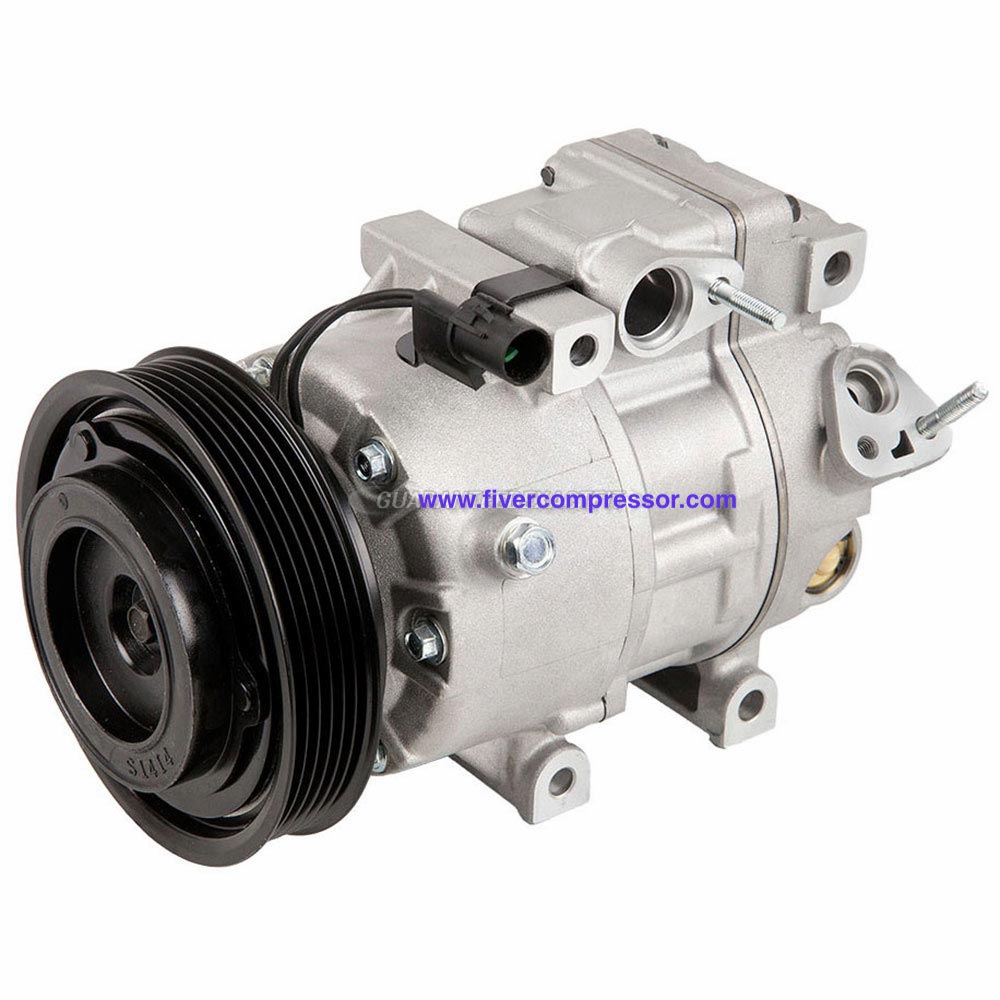

Type VS18M VS18M 6PK Auto A/C Compressor 97701-1U100, 977011U100 for Hyundai Santa Fe 2.4L 2010-2012 and for Kia Sorento 2.4L 2011-2013 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Hyundai VS18M A/C compressor

VS18M 6PK Auto A/C Compressor 97701-1U100, 977011U100 for Hyundai Santa Fe 2.4L 2010-2012 and for Kia Sorento 2.4L 2011-2013

OE / Part number
97701-1U100, 977011U100, 977011U100RU

VS18M 6PK Auto A/C Compressor 97701-1U100, 977011U100 for Hyundai Santa Fe 2.4L 2010-2012 and for Kia Sorento 2.4L 2011-2013 — aftermarket A/C compressor OE 97701-1U100 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS18M
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS18M
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701-1U100, 977011U100, 977011U100RU

§ 04

Product details

VS18M 6PK Auto A/C Compressor 97701-1U100, 977011U100 for Hyundai Santa Fe 2.4L 2010-2012 and for Kia Sorento 2.4L 2011-2013

Specifications
Clutch Maximum Diameter120.0 MM
Compressor Mount Hole Quantity4
Compressor TypeVS18
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine
Refrigerant TypeR134a
Vehicle Fitment

2010 Hyundai Santa Fe 2.4L Engine
2011 Hyundai Santa Fe 2.4L Engine
2012 Hyundai Santa Fe 2.4L Engine

2011 Kia Sorento 2.4L Engine

2012 Kia Sorento 2.4L Engine - without Rear AC

2013 Kia Sorento 2.4L Engine - without Rear AC


Alternate/OEM Part Number(s): 977011U100, 977011U100RU
