Hyundai A/C compressor

Type VS18E VS18E 6PK Hyundai AC Compressor Assy 977013M000 977013M001 for Hyundai Equus and for Hyundai Genesis 4.6L 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

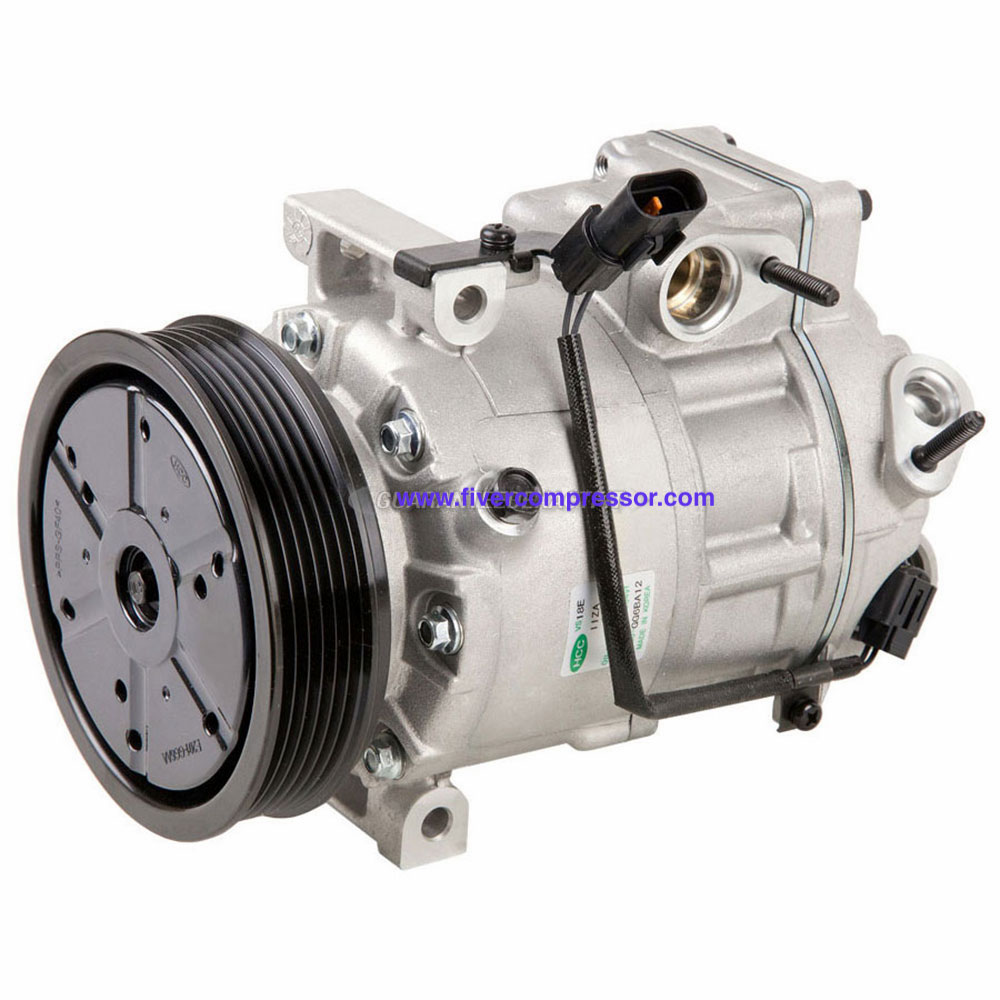

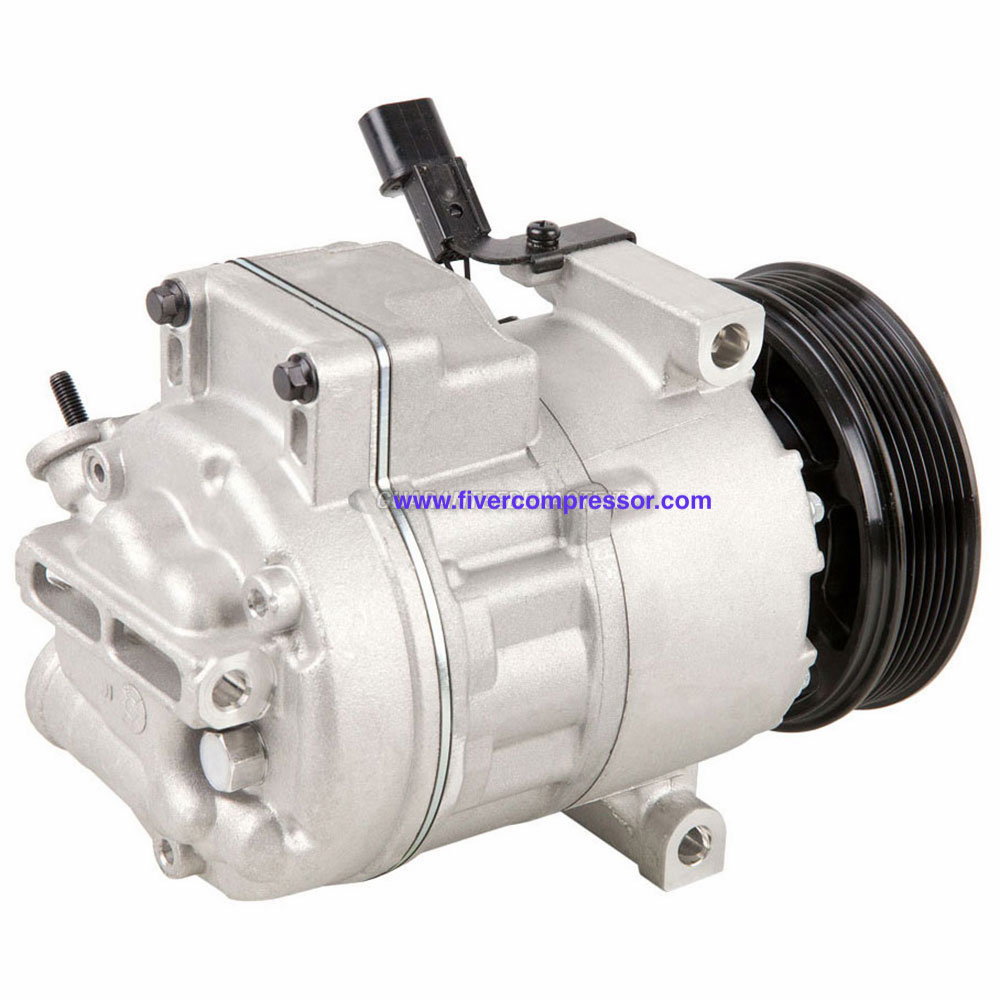

Hyundai VS18E A/C compressor

VS18E 6PK Hyundai AC Compressor Assy 977013M000 977013M001 for Hyundai Equus and for Hyundai Genesis 4.6L

OE / Part number
977013M000, 977013M001, F500-GG6BA03

Compresor de aire acondionado; A/C Compressor for vehicle; ac compressor for Hyundai Equus; Hyundai Genesis a/c compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS18E
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS18E
Pulley Grooves6PK
Coil Voltage12V
OE / Part number977013M000, 977013M001, F500-GG6BA03

§ 04

Product details

VS18E 6PK Hyundai AC Compressor Assy 977013M000 977013M001 for Hyundai Equus 2011-2014 and for Hyundai Genesis 4.6L/5.0L 2009-2014

 Specifications
Clutch IncludedYes
Coil Voltage12 2H
Compressor TypeVS18
Pulley Groove Quantity6

Vehicle Fitment

2011 Hyundai Equus All Models
2012 Hyundai Equus All Models
2013 Hyundai Equus All Models

2014 Hyundai Equus All Models


2009 Hyundai Genesis 4.6L Engine

2010 Hyundai Genesis 4.6L Engine

2011 Hyundai Genesis 4.6L Engine

2012 Hyundai Genesis 4.6L Engine

2012 Hyundai Genesis 5.0L Engine

2013 Hyundai Genesis 5.0L Engine

2014 Hyundai Genesis 5.0L Engine


OEM Number:977013M000 977013M001,F500-GG6BA03
