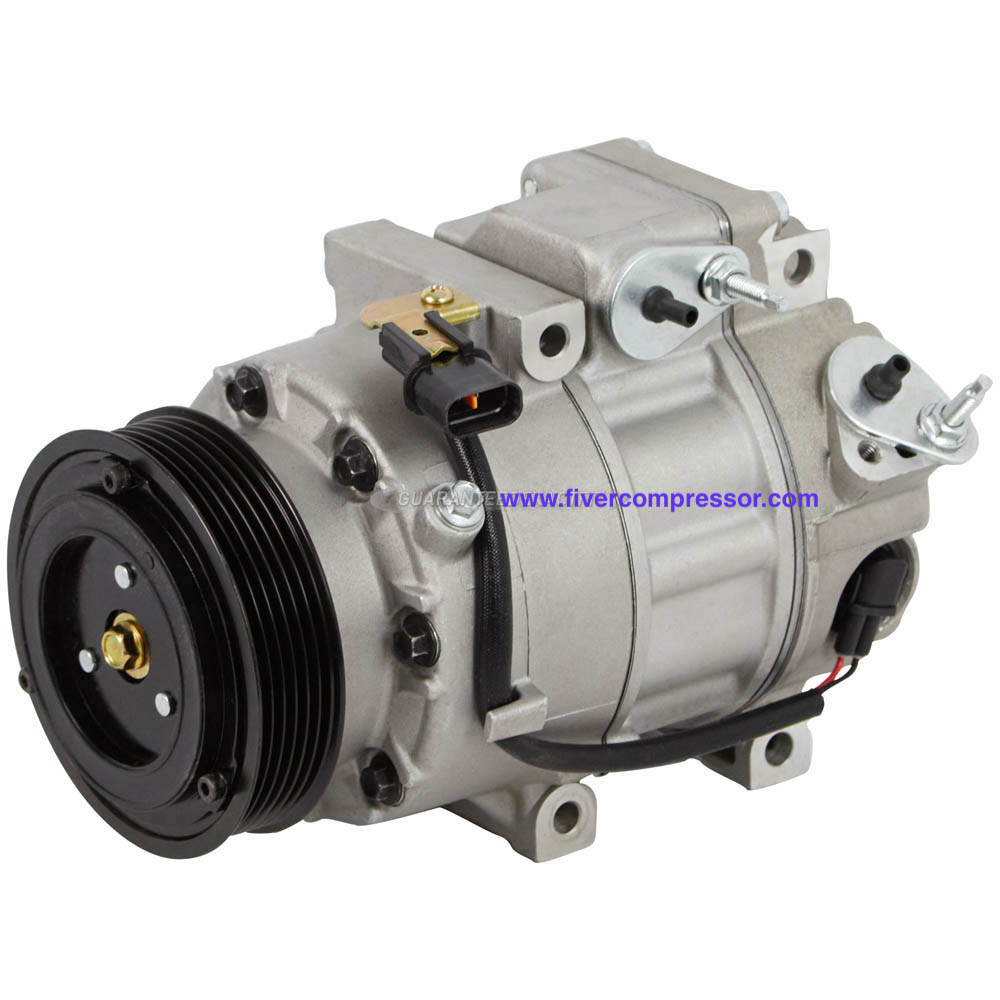

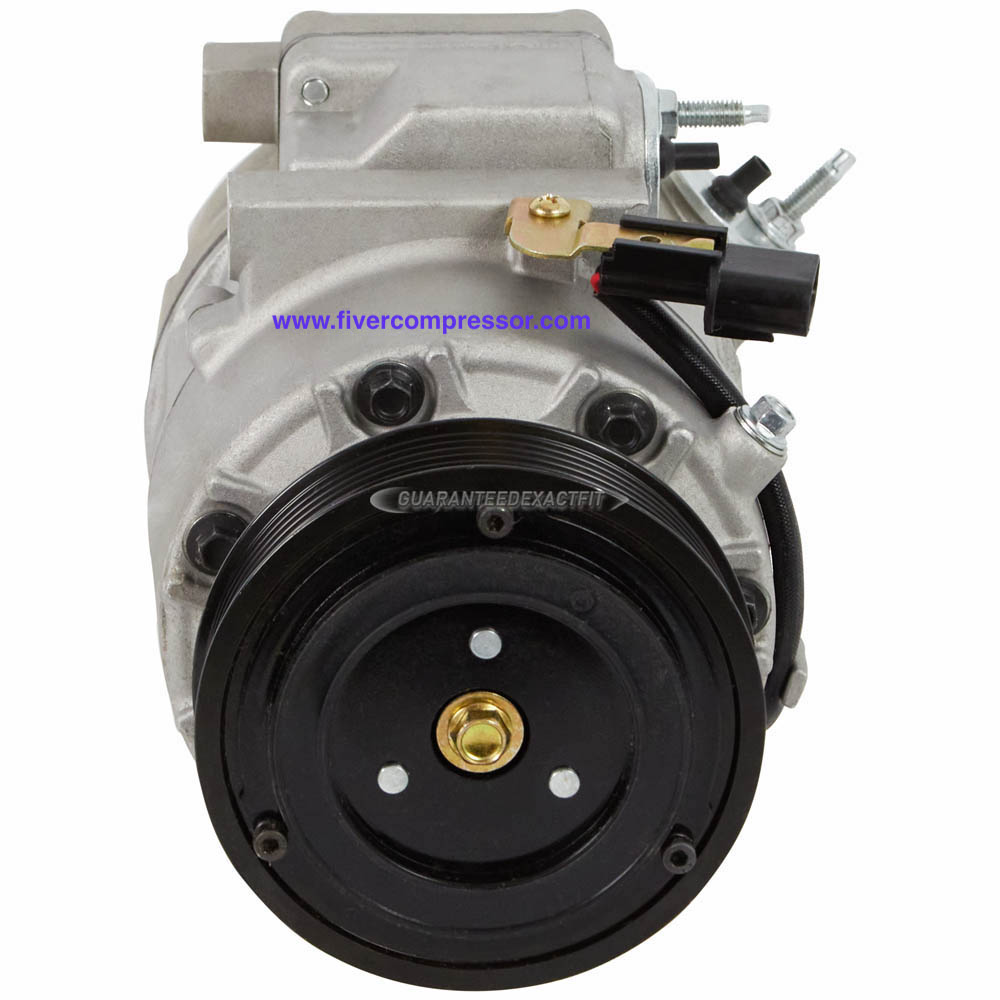

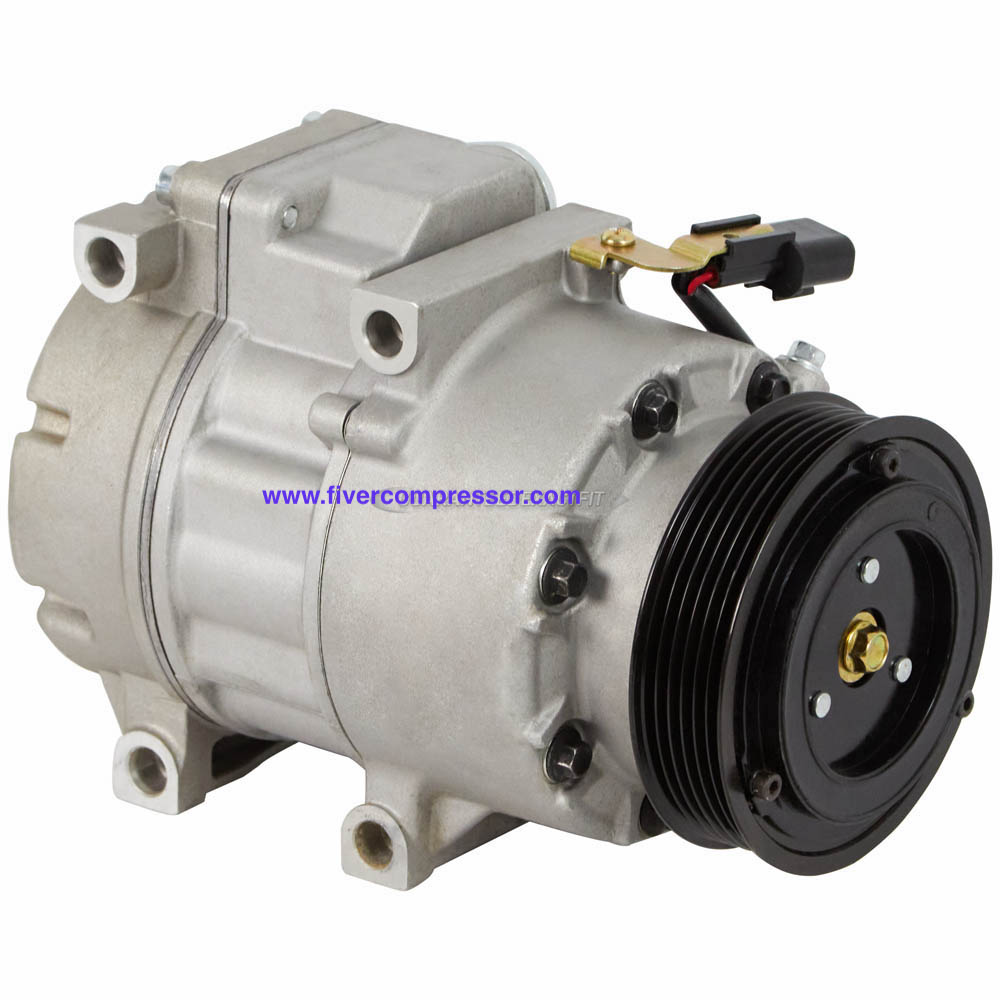

Hyundai A/C compressor

Type VS18E VS18E 6PK Automotive A/C Compressor 97701B1000, TSR5327 for Hyundai Genesis 3.8L and for Genesis G80/ G90 3.8L 2017-2019 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Hyundai VS18E A/C compressor

VS18E 6PK Automotive A/C Compressor 97701B1000, TSR5327 for Hyundai Genesis 3.8L and for Genesis G80/ G90 3.8L 2017-2019

OE / Part number
97701B1000, TSR5327, 97701B100

VS18E 6PK Automotive A/C Compressor 97701B1000, TSR5327 for Hyundai Genesis 3.8L and for Genesis G80/ G90 3.8L 2017-2019 — aftermarket A/C compressor OE 97701B1000 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS18E
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS18E
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701B1000, TSR5327, 97701B100

§ 04

Product details

VS18E 6PK Automotive A/C Compressor 97701B1000, TSR5327 for Hyundai Genesis 3.8L and for Genesis G80/ G90 3.8L 2017-2019

 Specifications
[A/C Compressor] - Control Valve (Y/ N)Y
[A/C Compressor] - Diode (Y/ N)N
[A/C Compressor] - Discharge Port (MM)14
[A/C Compressor] - Gauge Line (MM)91
[A/C Compressor] - Grooves6
[A/C Compressor] - Pulley Diameter (MM)105
[A/C Compressor] - StyleVS18E
[A/C Compressor] - Suction Port (MM)20
[A/C Compressor] - Voltage12
[A/C Compressor] - [A/C Compressor] Mounttangent
[A/C Condenser] - Depth (MM)22
[A/C Condenser] - Inlet (MM)17
[A/C Expansion Valve] - Liquid Inlet (MM)12


Vehicle Fitment

2016 Hyundai Genesis 3.8L Engine

2015 Hyundai Genesis 3.8L Engine


2017 Genesis G80 3.8 - 3.8L Eng.
2018 Genesis G80 3.8 - 3.8L Eng.


2017 Genesis G90 3.3L Engine

2018 Genesis G90 3.3L Engine

2019 Genesis G90 3.3L Engine


Alternate/OEM Part Number(s): 97701B100, 97701B1000
