Hyundai A/C compressor

Type VS16M VS16M 4PK Auto Air Conditioning Compressor 977012H100 977012H102 977012H140 977013X100 for Hyundai Elantra 2.0L 2007-2012 PV6 · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

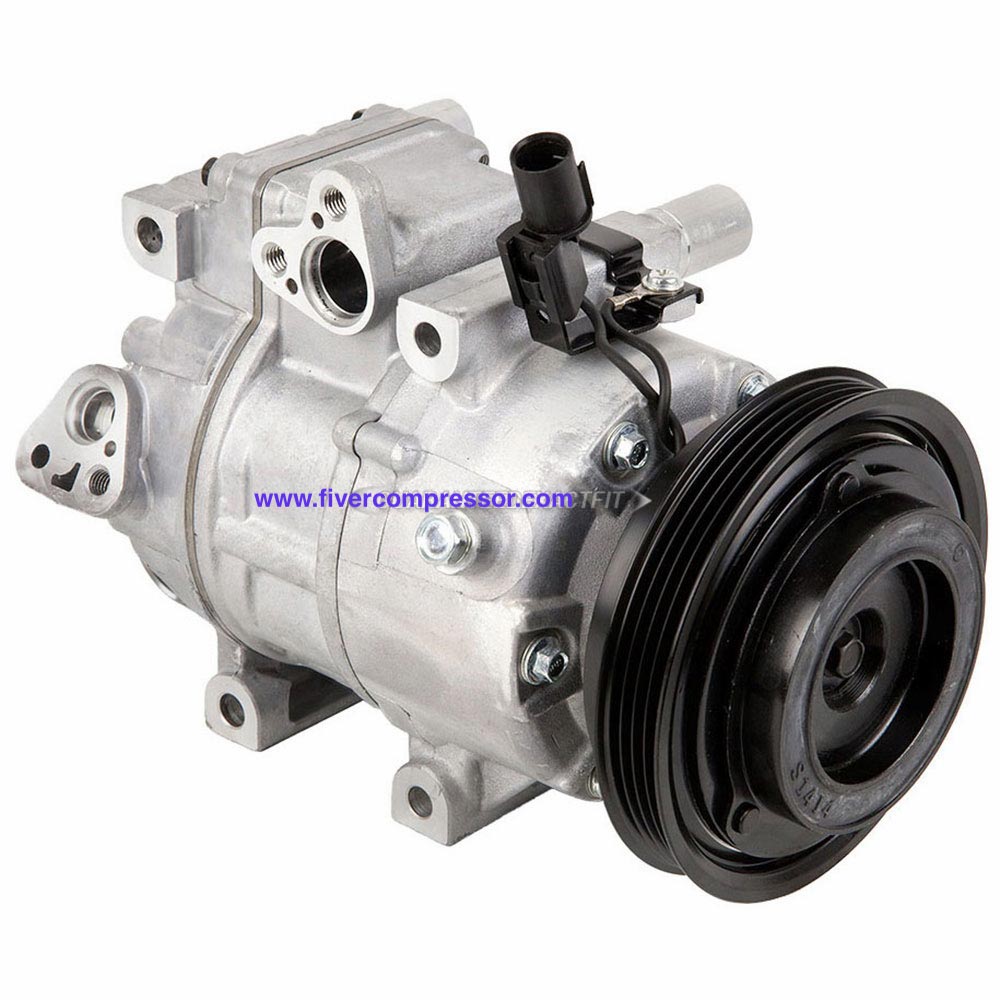

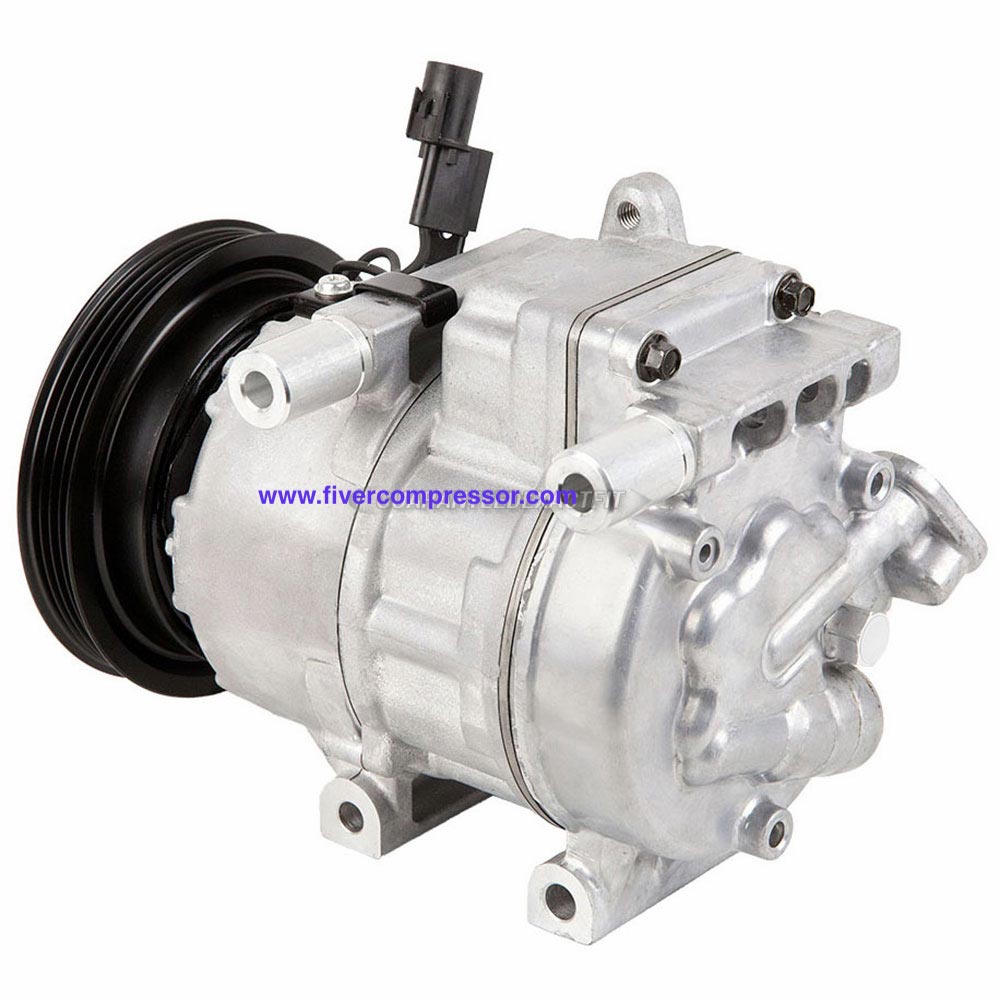

Hyundai VS16M A/C compressor

VS16M 4PK Auto Air Conditioning Compressor 977012H100 977012H102 977012H140 977013X100 for Hyundai Elantra 2.0L 2007-2012

OE / Part number
977012H100, 977012H102, 977012H140, 977013X100, 977013X101

VS16M 4PK Auto Air Conditioning Compressor 977012H100 977012H102 977012H140 977013X100 for Hyundai Elantra 2.0L 2007-2012 — aftermarket A/C compressor OE 977012H100 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS16M
Pulley GroovePV6

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS16M
Pulley GroovePV6
Coil Voltage12V
OE / Part number977012H100, 977012H102, 977012H140, 977013X100, 977013X101

§ 04

Product details

VS16M 4PK Auto Air Conditioning Compressor 977012H100 977012H102 977012H140 977013X100 for Hyundai Elantra 2.0L 2007-2012

DENSO 4716034 Specifications
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity4
Compressor TypeVS14
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine
Refrigerant TypeR134a
Vehicle Fitment

2007 Hyundai Elantra All Models

2008 Hyundai Elantra All Models

2009 Hyundai Elantra From Production Date 1/18/2009

2009 Hyundai Elantra To Production Date 1/18/2009

2010 Hyundai Elantra All Models

2011 Hyundai Elantra 2.0L Engine - Hatchback
2012 Hyundai Elantra 2.0L Engine - Hatchback


OE: 977012H100, 977012H102, 977012H140, 977013X100, 977013X101
