Hyundai A/C compressor

Type VS14E VS14E 6PK Auto AC Compressor 97701-A5800 97701F2800 for HYUNDAI ELANTRA and for KIA FORTE 2014-2017 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

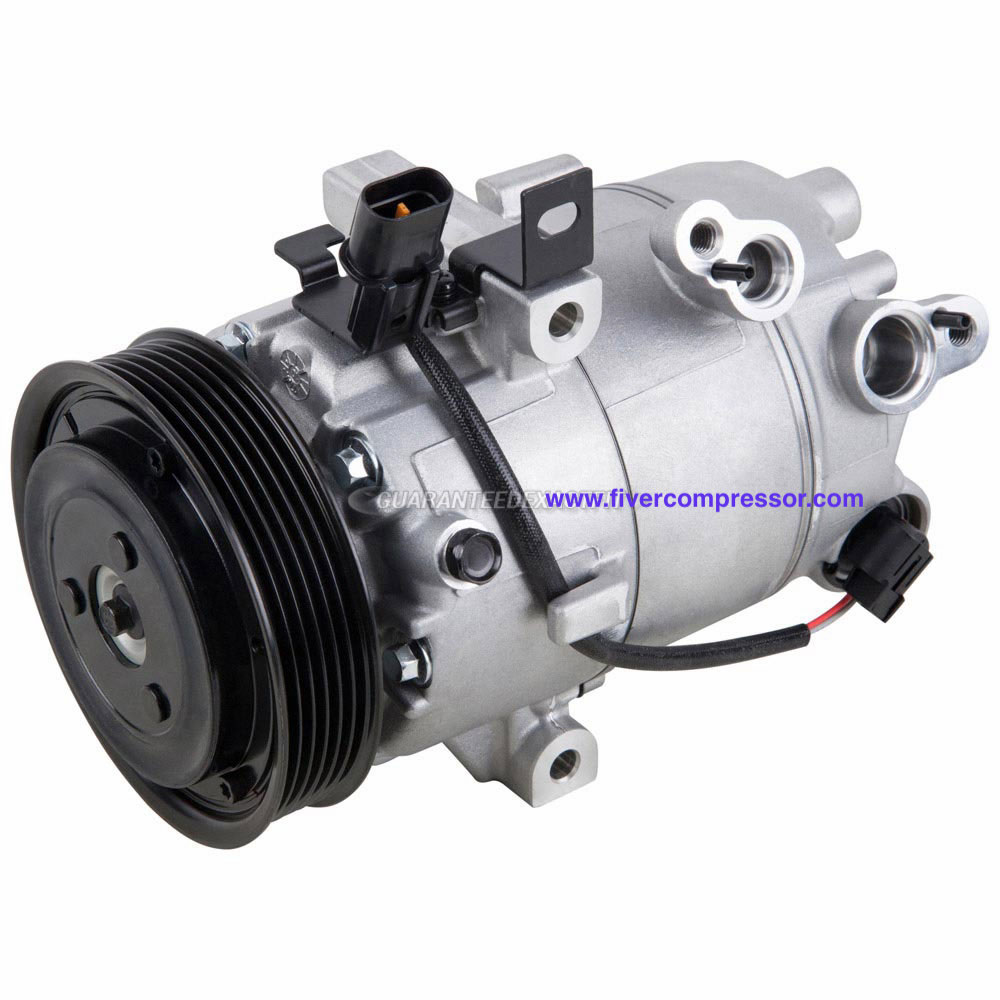

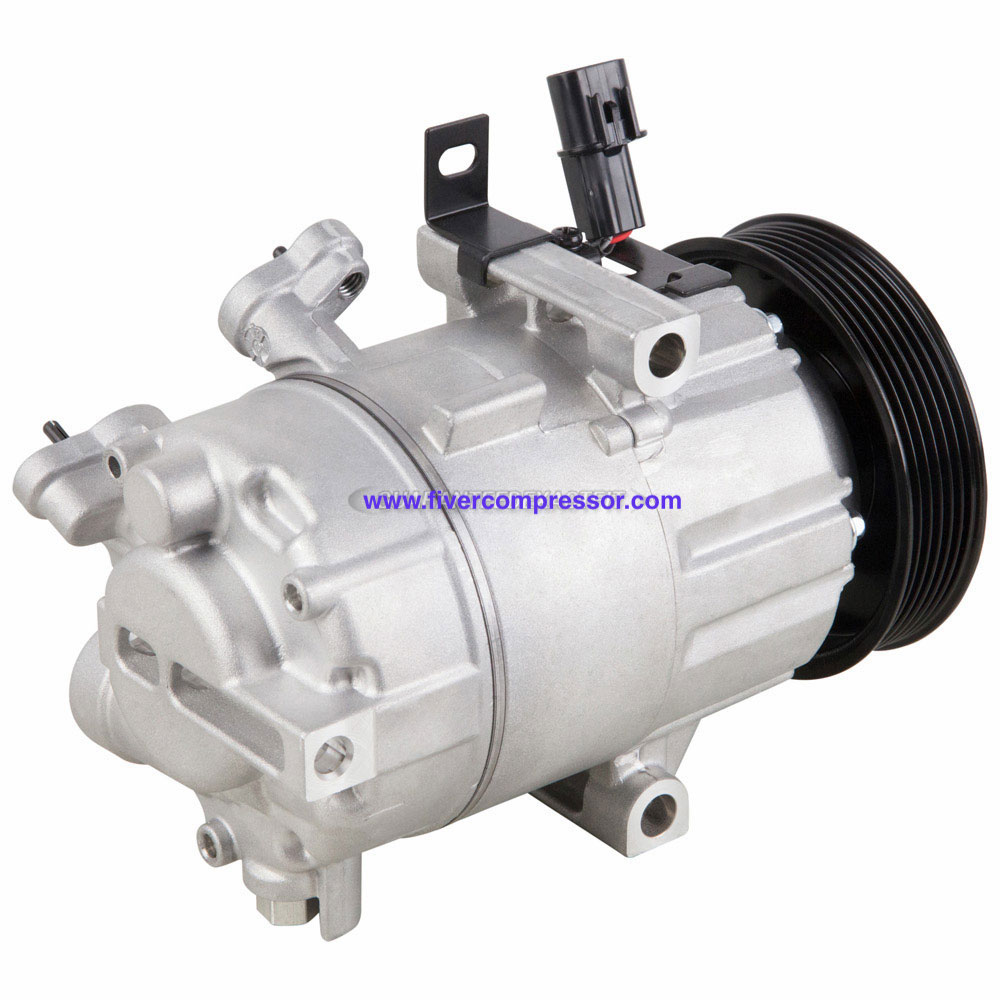

Hyundai VS14E A/C compressor

VS14E 6PK Auto AC Compressor 97701-A5800 97701F2800 for HYUNDAI ELANTRA and for KIA FORTE 2014-2017

OE / Part number
97701-A5800, 97701F2800, 97701A5800, 97701-F2800

This compressor is an aftermarket replacement for 97701-A5800 97701F2800 for HYUNDAI ELANTRA and for KIA FORTE 2014-2017, made meets or exceeding the original parts quality standard, perfect fit.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS14E
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS14E
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701-A5800, 97701F2800, 97701A5800, 97701-F2800

§ 04

Product details

VS14E 6PK Auto AC Compressor 97701-A5800 97701F2800 for HYUNDAI ELANTRA and for KIA FORTE 2014-2017

Specifications
Compressor Mounttangent
Compressor StyleVS14E
Control Valve (Y/ N)Y
Discharge Port (MM)13
Gauge Line (MM)78
Grooves6
Pulley Diameter (MM)115
Suction Port (MM)19
Voltage12



Vehicle Fitment

2014 Hyundai Elantra Coupe All Models

2018 Hyundai Elantra GT 2.0L Eng.


2014 Hyundai Elantra All Models
2015 Hyundai Elantra All Models
2016 Hyundai Elantra All Models

  • 2013 Hyundai Elantra GT w/ Automatic Temperature Control
  • 2014 Hyundai Elantra GT w/ Automatic Temperature Control
  • 2015 Hyundai Elantra GT w/ Automatic Temperature Control
  • 2016 Hyundai Elantra GT w/ Automatic Temperature Control
  • 2017 Hyundai Elantra GT w/ Automatic Temperature Control
  • 2014 Kia Forte 1.8L Eng. - w/ Automatic Temperature Control
  • 2015 Kia Forte 1.8L Eng. - w/ Automatic Temperature Control
  • 2016 Kia Forte 1.8L Eng. - w/ Automatic Temperature Control
  • 2014 Kia Forte 2.0L Eng. - w/ Automatic Temperature Control
  • 2015 Kia Forte 2.0L Eng. - w/ Automatic Temperature Control
  • 2016 Kia Forte 2.0L Eng. - w/ Automatic Temperature Control
  • 2017 Kia Forte 2.0L Eng. - w/ Automatic Temperature Control
  • 2016 Kia Forte Koup 2.0L Eng. - w/ Automatic Temperature Control
  • 2014 Kia Forte5 2.0L Engine - w/ Automatic Climate Control
  • 2015 Kia Forte5 2.0L Engine - w/ Automatic Climate Control
  • 2016 Kia Forte5 2.0L Engine - w/ Automatic Climate Control
  • 2017 Kia Forte5 2.0L Engine - w/ Automatic Climate Control
  • 2018 Kia Forte5 2.0L Engine - w/ Automatic Climate Control
  • 2014 Kia Soul 2.0L Eng.
  • 2015 Kia Soul 2.0L Eng.
  • 2016 Kia Soul 2.0L Eng.
  • 2017 Kia Soul 2.0L Eng.
  • 2018 Kia Soul 2.0L Eng.
  • 2019 Kia Soul 2.0L Eng.


OEM Number: 97701-A5800 97701F2800 ;97701A5800 97701-F2800
