Hyundai A/C compressor

Type VS12N VS12N 4PK Compressor Assembly with Clutch 977011E100 97701-1E100 for Hyundai Accent 1.6L 2010-2011 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

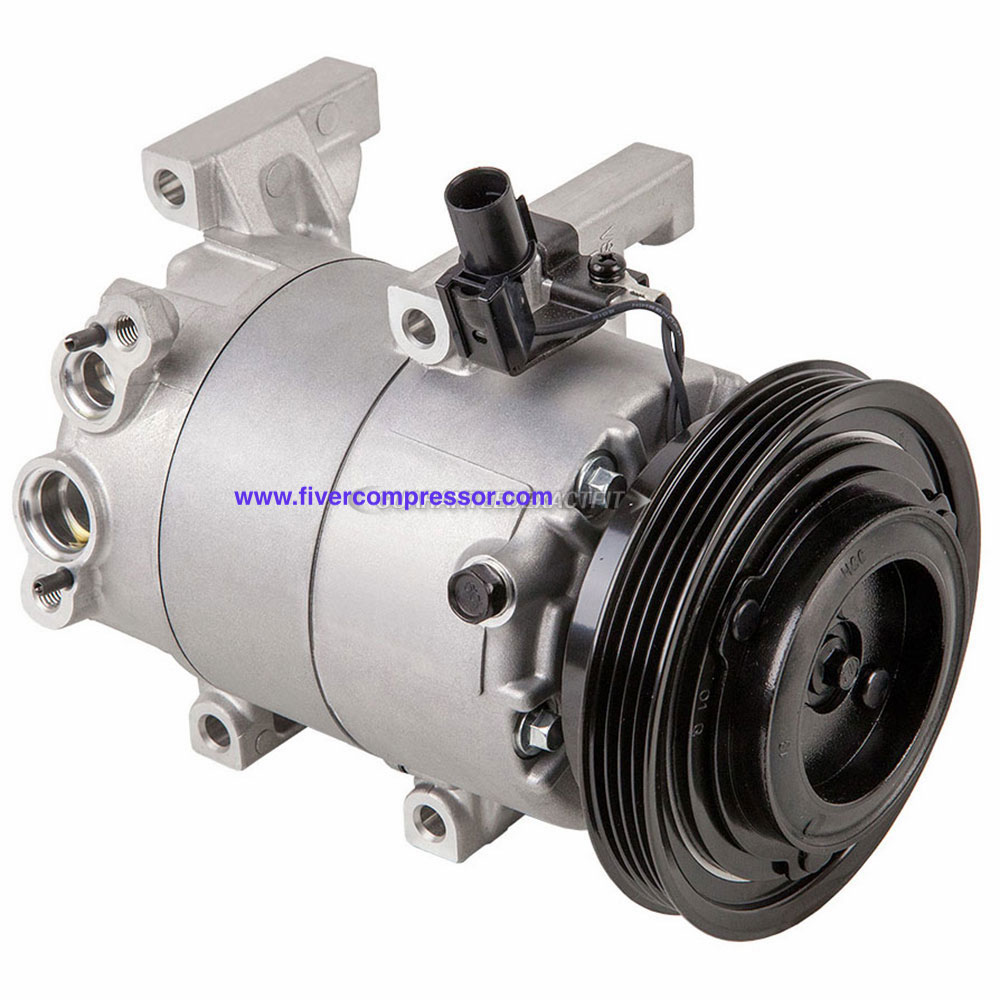

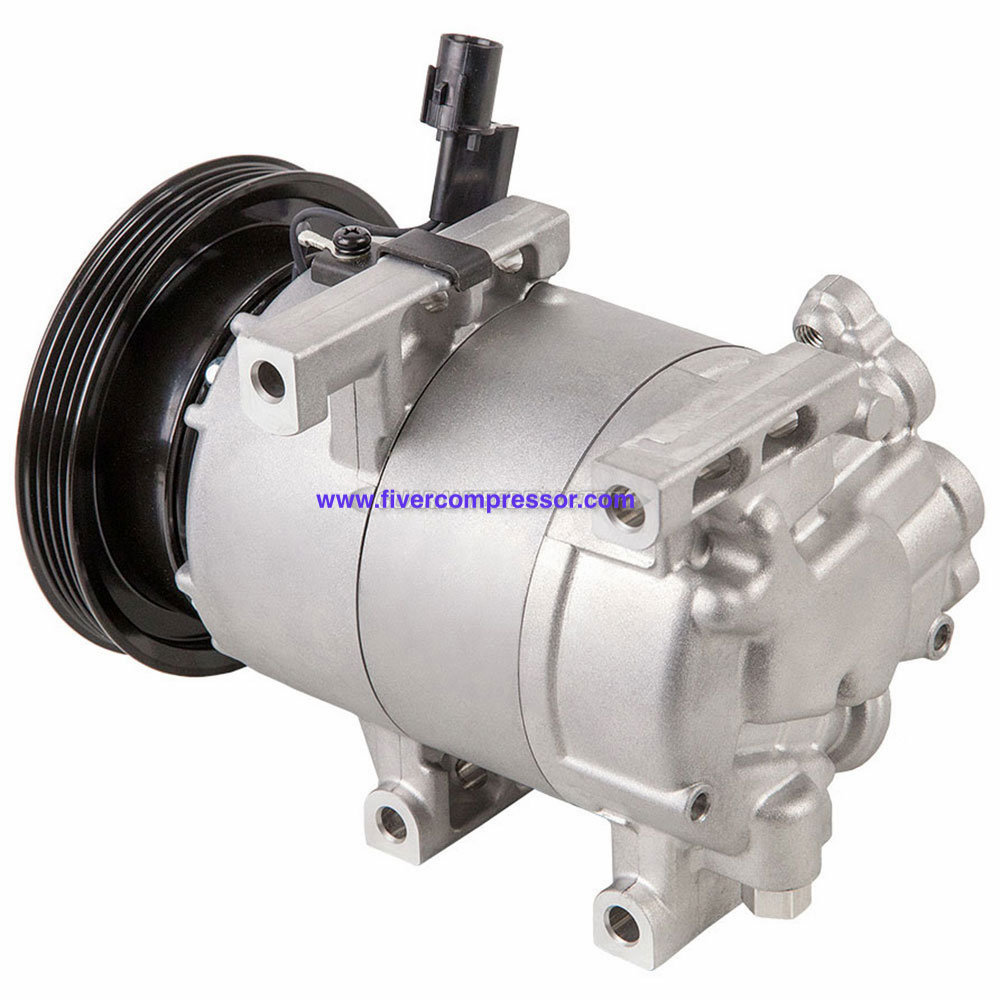

Hyundai VS12N A/C compressor

VS12N 4PK Compressor Assembly with Clutch 977011E100 97701-1E100 for Hyundai Accent 1.6L 2010-2011

OE / Part number
977011E100, 97701-1E100

auto a/c compressor for Hyundai Accent; Compressor Assembly with Clutch 977011E100; Compressor 97701-1E100

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS12N
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS12N
Pulley Groove4PK
Coil Voltage12V
OE / Part number977011E100, 97701-1E100

§ 04

Product details

VS12N 4PK Compressor Assembly with Clutch 977011E100 97701-1E100 for Hyundai Accent 1.6L 2010-2011

DENSO 4716033 Specifications
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity4
Compressor TypeVS12
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)100 cc
Oil Included in Compressor (oz)3.4 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine
Refrigerant TypeR134a

VEHICLE FITMENT

YearMakeModelBody & TrimEngine & Transmission
2011HyundaiAccentGL, GLS, GS, SE1.6L L4 - Gas
2010HyundaiAccentBlue, GLS, GS, SE1.6L L4 - Gas

Alternate/OEM Part Number(s): 977011E100,97701-1E100
