Hyundai A/C compressor

Type VS12E VS12E - 6PK Auto A/C Compressor 97701-3X601 977013X601 for Hyundai Elantra 2011-2013 PV6 · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

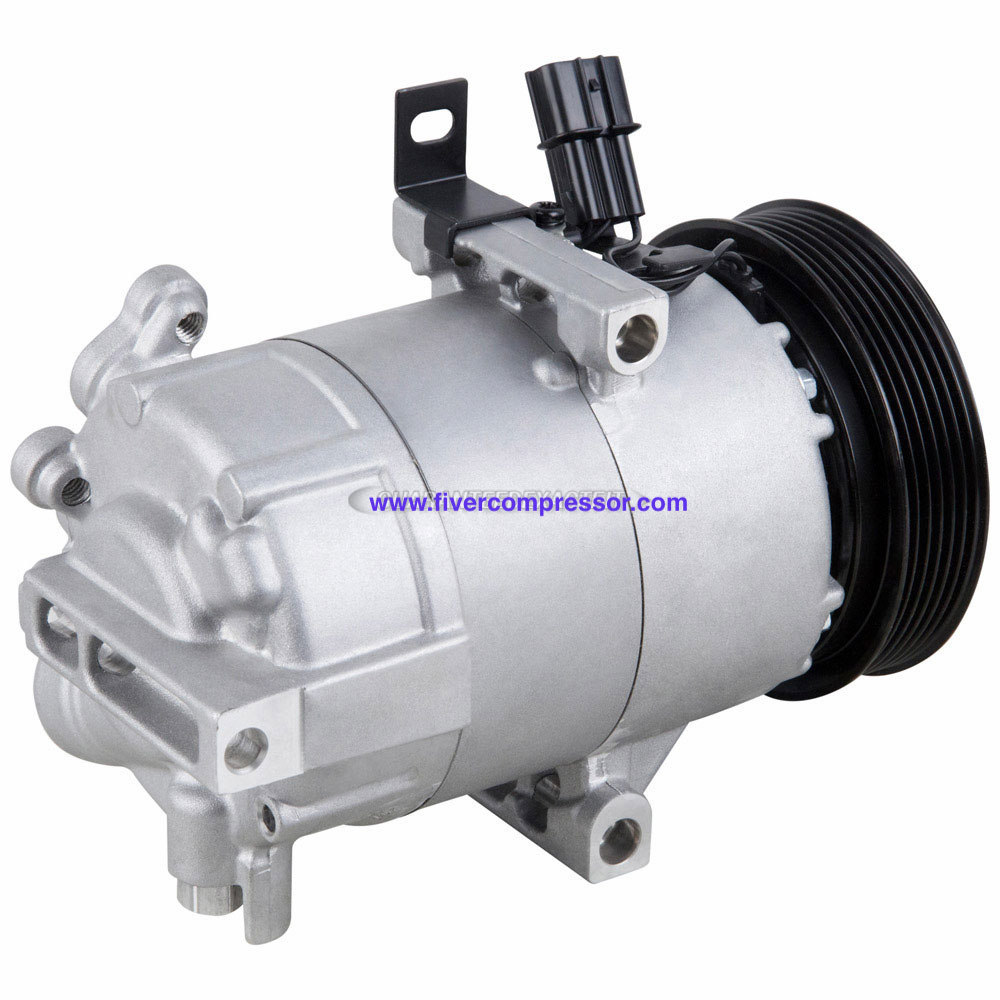

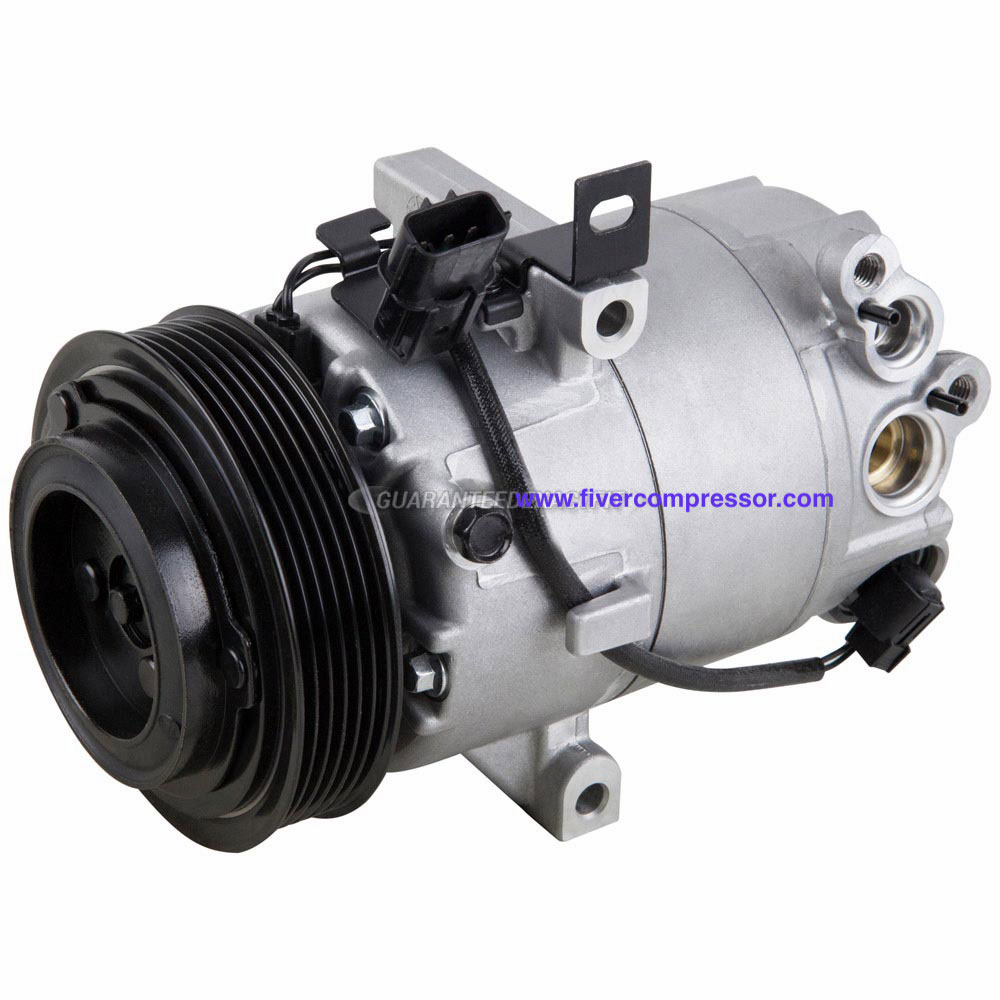

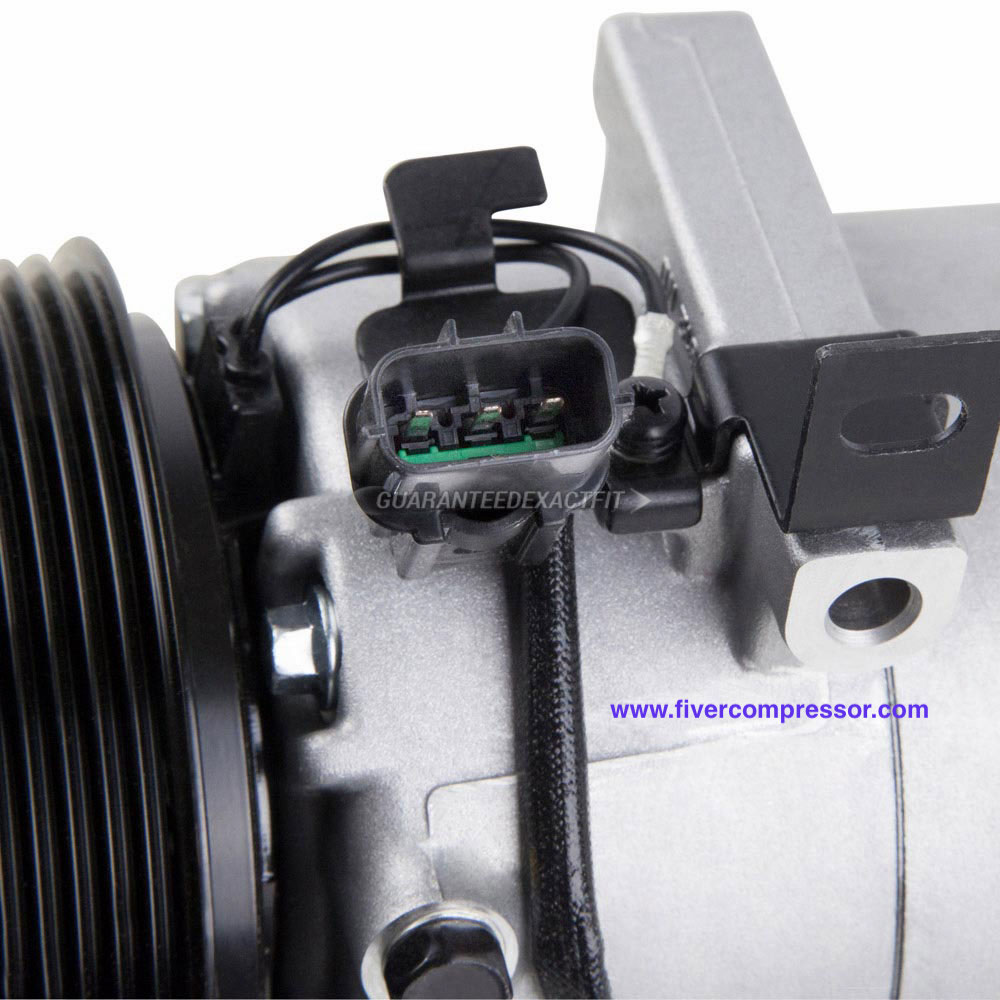

Hyundai VS12E A/C compressor

VS12E - 6PK Auto A/C Compressor 97701-3X601 977013X601 for Hyundai Elantra 2011-2013

OE / Part number
97701-3X601, 977013X601

VS12E - 6PK Auto A/C Compressor 97701-3X601 977013X601 for Hyundai Elantra 2011-2013 — aftermarket A/C compressor OE 97701-3X601 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS12E
Pulley GroovePV6

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS12E
Pulley GroovePV6
Coil Voltage12V
OE / Part number97701-3X601, 977013X601

§ 04

Product details

VS12E - 6PK Auto A/C Compressor 97701-3X601 977013X601 for Hyundai Elantra 1.8L 2011-2013

 Specifications
Compressor StyleVS12
Control Valve (Y/ N)Y
Diode (Y/ N)N
Discharge Port (MM)17
Gauge Line (MM)80
Grooves6
Pulley Diameter (MM)115
Suction Port (MM)23
Voltage12

Vehicle Fitment

2011 Hyundai Elantra 1.8L Engine - Sedan - with Automatic Temperature Control - From Production Date 03/29/112012 Hyundai Elantra 1.8L Engine - Sedan - with Automatic Temperature Control

2013 Hyundai Elantra with Automatic Temperature Control - Korean Built
2013 Hyundai Elantra with Automatic Temperature Control - USA Built

OE: 97701-3X601 977013X601
