Hyundai A/C compressor

Type SD709 SD709 Type 1PK Auto A/C Compressor 97701-24001 9770124001 for Hyundai SCoupe Base/ LS/Turbo 1.5L 1991-1995 for Hyundai Excel… 1PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

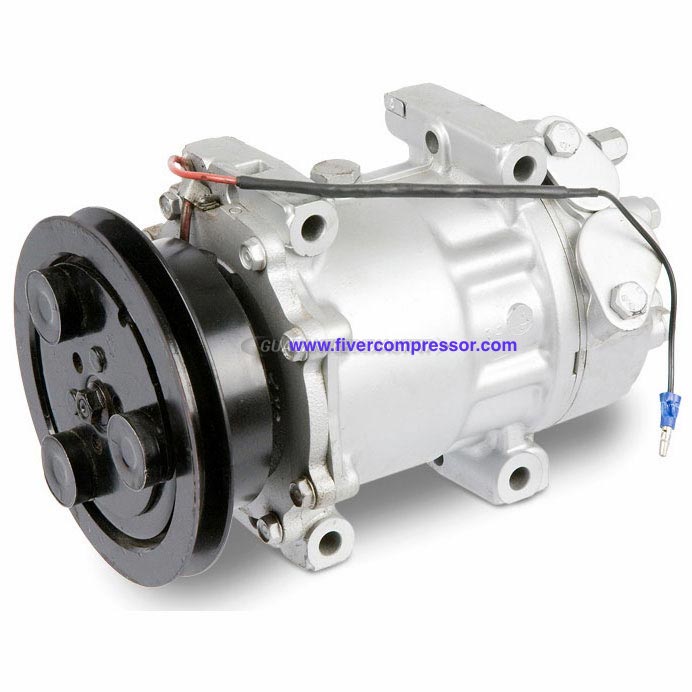

Hyundai SD709 A/C compressor

SD709 Type 1PK Auto A/C Compressor 97701-24001 9770124001 for Hyundai SCoupe Base/ LS/Turbo 1.5L 1991-1995 for Hyundai Excel Base/GL/GLS/GS 1.5L 1990-1993

OE / Part number
97701-24001, 9770124001, 19192307, 88918990, 9770124A00

Auto A/C Compressor for Hyundai Coupe; Hyundai Excel AC Compressor; Compressor Assy 97701-24001; 9770124001

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeSD709
Pulley Groove1PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeSD709
Pulley Groove1PK
Coil Voltage12V
OE / Part number97701-24001, 9770124001, 19192307, 88918990, 9770124A00

§ 04

Product details

SD709 Type 1PK Auto A/C Compressor 97701-24001 for Hyundai SCoupe Base/ LS/Turbo 1.5L 1991-1995 for Hyundai Excel Base/GL/GLS/GS 1.5L 1990-1993

 Specifications
Belt Width IN0.500 in
Clutch IncludedIncluded
Clutch Maximum Diameter5.500 in
Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Comp Head Prt ConfigTop-Vert-Pad
Compatible Refrigerant Oil TypePAG 100
Compressor Head TypeWB
Compressor TypeSD709
Discharge Port TypeO-Ring
Distance From Clutch To Mounting Flange2.046875 in
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanRemanufactured
O-Ring A Number/Desc[24613] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24622] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeV-Belt
Pulley Diameter MM139.700 MM
Pulley Groove Quantity1
Pulley Lip Diameter5.500 in
Pulley Ridge Diameter5.500 in
Refrigerant TypeR134a
Suction Port TypeO-Ring
Switch IncludedHigh Pressure
Switch TypePressure Switch
Terminal TypeSpade
TypeSanden/Sankyo

VEHICLE FITMENT

YearMakeModelBody & TrimEngine & Transmission
1993HyundaiExcelBase, GL, GS1.5L L4 - Gas
1993HyundaiScoupeBase, LS, Turbo1.5L L4 - Gas
1992HyundaiExcelBase, GL, GS1.5L L4 - Gas
1992HyundaiScoupeBase, LS1.5L L4 - Gas
1991HyundaiExcelBase, GL, GLS, GS1.5L L4 - Gas
1991HyundaiScoupeBase, LS1.5L L4 - Gas
1990HyundaiExcelBase, GL, GLS1.5L L4 - Gas
Alternate/OEM Part Number(s): 19192307, 88918990, 9770124001, 9770124A00
