A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
4PK · 12V
Automotive A/C Compressor Supplier; Hyundai Tucson ac compressor; compressor assy for Kia Sportage 2.0L 2005-2007; 97701-2D700, 977012F500
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

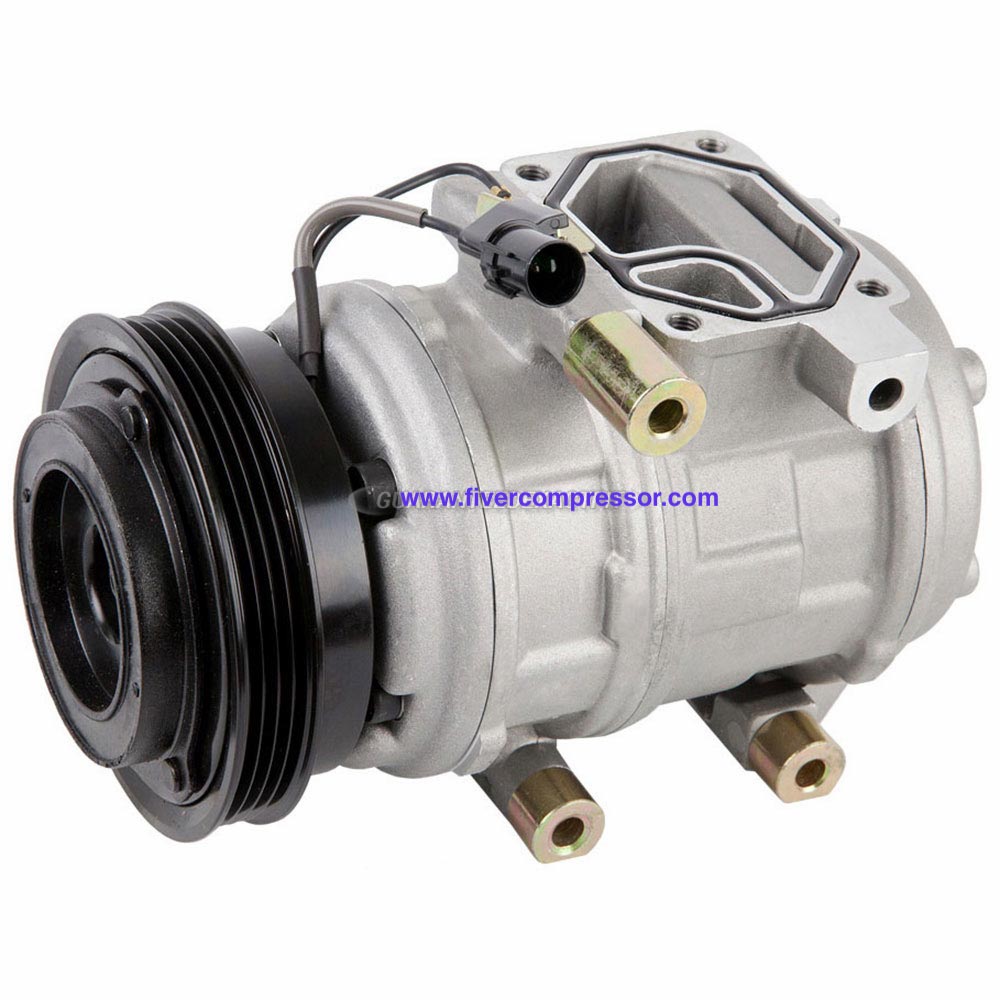

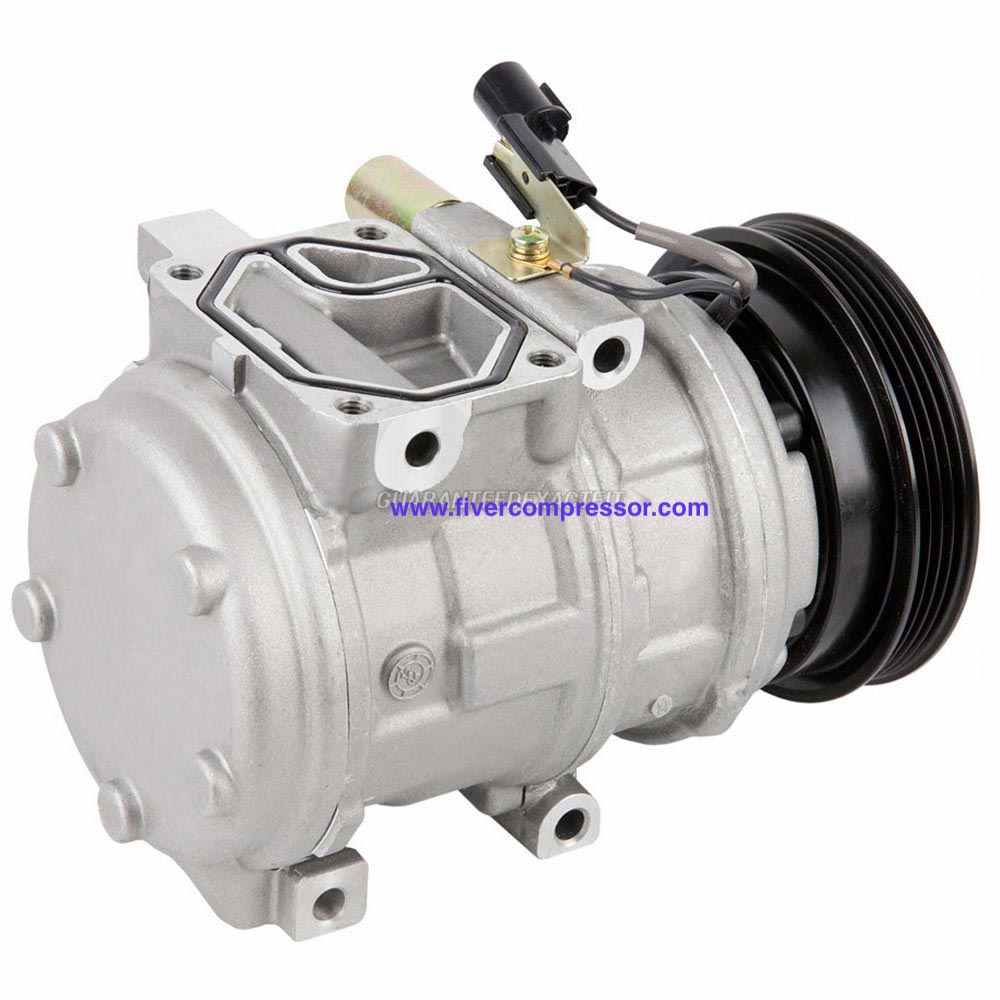

Hyundai Tucson 2.0 Auto A/C Compressor 97701-2D700 977012F500 10PA15C Compressor Assy for Kia Sportage 2.0L 2005-2007

| Specifications | |
|---|---|
| Compressor Fitting | Pad |
| Compressor Mount | Direct |
| Compressor Style | 10PA15C |
| Discharge Port (MM) | 16 |
| Grooves | 4 |
| Pulley Diameter (MM) | 120 |
| Suction Port Diameter (MM) | 18 |
VEHICLE FITMENT
2005 Hyundai Tucson 2.0L Engine with Doowon 10P Compressor
2006 Hyundai Tucson 2.0L Engine with Doowon 10P Compressor
2007 Hyundai Tucson 2.0L Engine with Doowon 10P Compressor
Alternate/OEM Part Number(s): 977012D700, 977012D700DR, 977012F100, 977012F110
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
