Hyundai A/C compressor

Type DVE16 Hyundai Tucson 2.4L 2010-2015 and Kia Sportage 2011-2017 Auto A/C Compressors 977012S500, 977012S502 DVE16 6 Groove Pulley PV6 · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

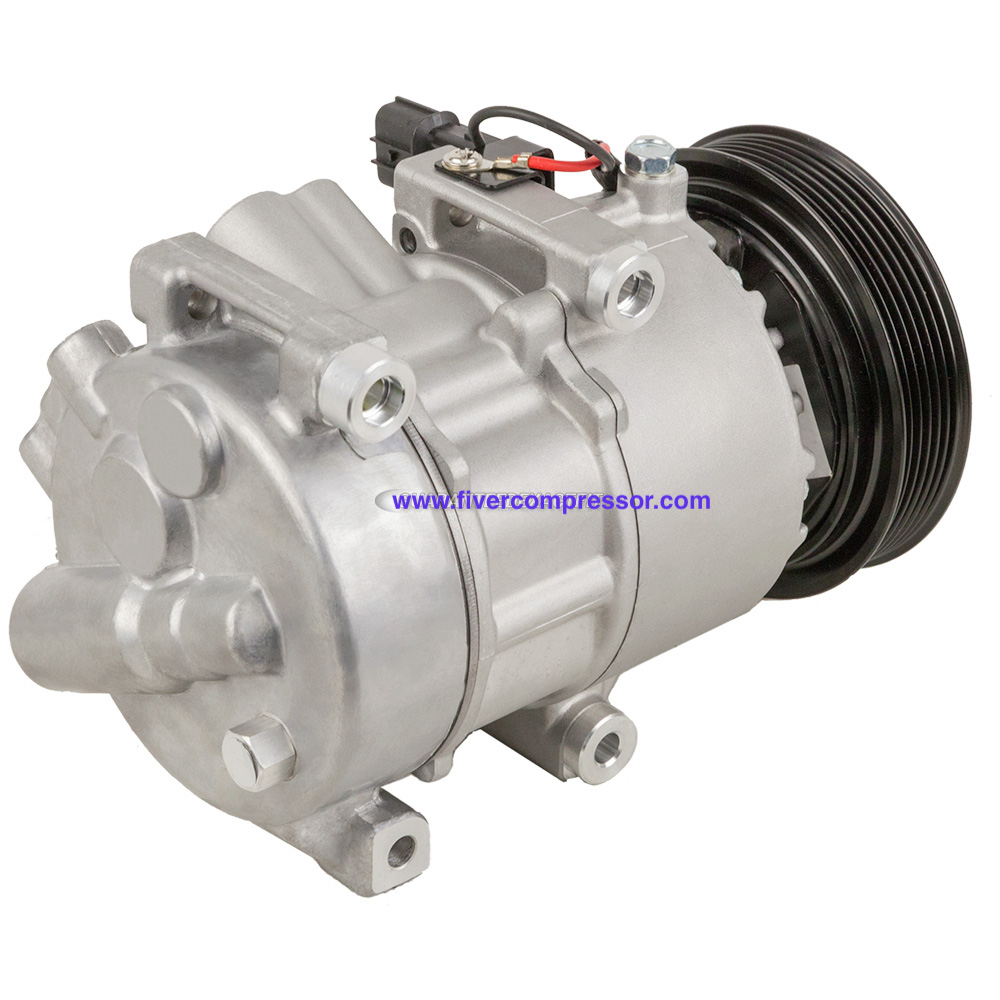

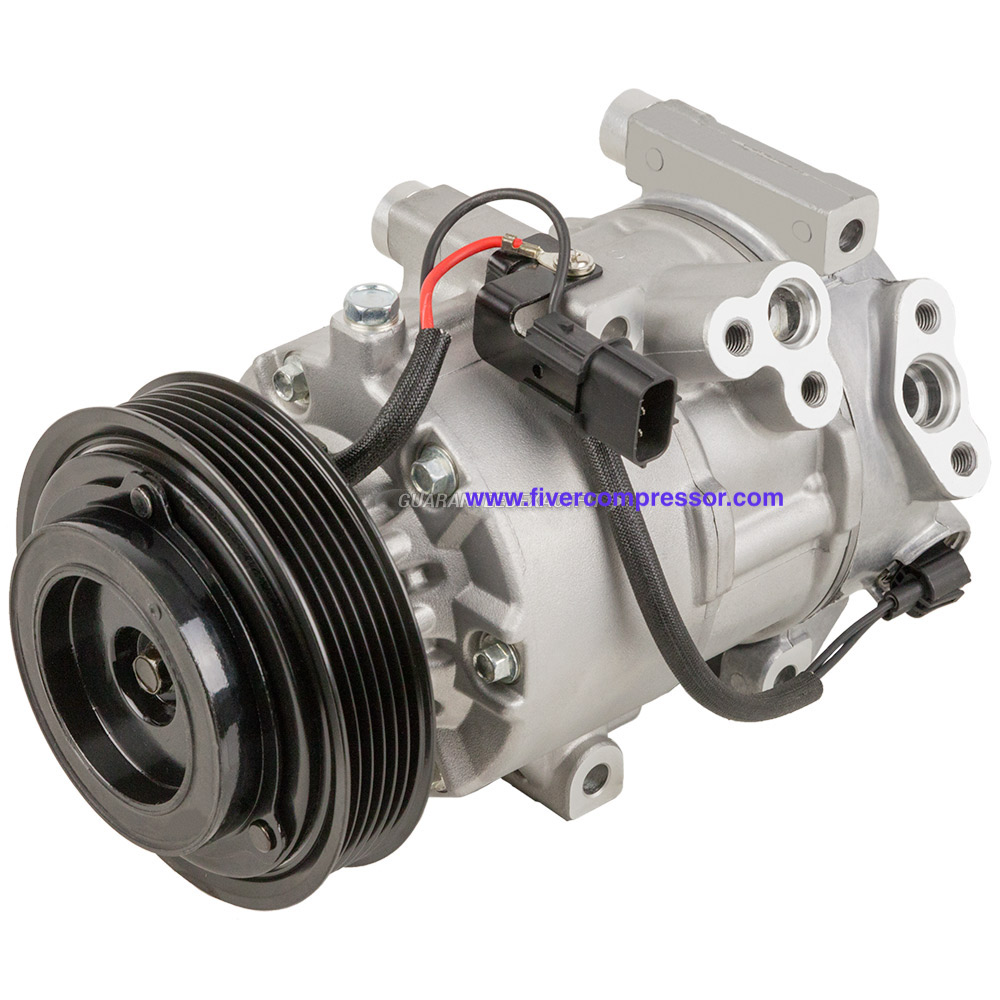

Hyundai DVE16 A/C compressor

Hyundai Tucson 2.4L 2010-2015 and Kia Sportage 2011-2017 Auto A/C Compressors 977012S500, 977012S502 DVE16 6 Groove Pulley

OE / Part number
977012S500, 977012S502

Hyundai Tucson 2.4L 2010-2015 and Kia Sportage 2011-2017 Auto A/C Compressors 977012S500, 977012S502 DVE16 6 Groove Pulley — aftermarket A/C compressor OE 977012S500 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDVE16
Pulley GroovePV6

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDVE16
Pulley GroovePV6
Coil Voltage12V
OE / Part number977012S500, 977012S502

§ 04

Product details

Hyundai Tucson 2.4L 2010-2015 and Kia Sportage 2011-2017 Auto A/C Compressors 977012S500, 977012S502 DVE16 6 Groove Pulley

 Specifications
Clocking12
Compressor Mounttangent

Compressor TypeDVE16
Control Valve (Y/ N)Yes
Discharge Port (MM)17
Gauge Line (MM)86
Grooves6
Pulley Diameter (MM)120
Suction Port (MM)19
Voltage12V/PWM
Vehicle Fitment

2010 Hyundai Tucson All Models

2011 Hyundai Tucson All Models

2012 Hyundai Tucson All Models

2013 Hyundai Tucson All Models

2014 Hyundai Tucson 2.4L Engine
2015 Hyundai Tucson 2.4L Engine


2011 Kia Sportage All Models

2012 Kia Sportage All Models

2013 Kia Sportage All Models

2014 Kia Sportage All Models

2015 Kia Sportage 2.0L Engine

2016 Kia Sportage 2.0L Engine

2017 Kia Sportage 2.0L Engine

2015 Kia Sportage 2.4L Engine

2016 Kia Sportage 2.4L Engine

2017 Kia Sportage 2.4L Engine


Alternate/OEM Part Number(s): 977012S500, 977012S502
