Hyundai A/C compressor

Type 10PA17C Hyundai Tucson 2.7L 2006-2009 Air Conditioning Compressor 10PA17C 6PK 977012E100, 977012E300 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

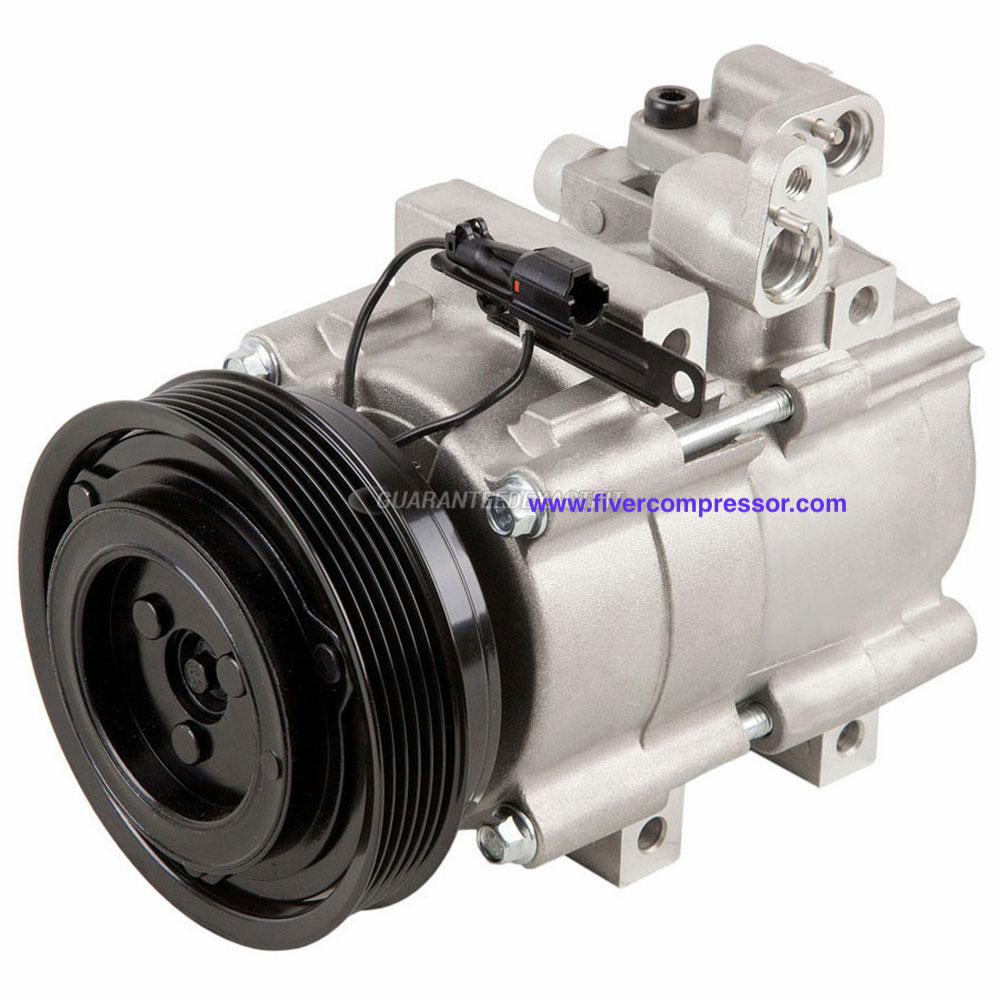

Hyundai 10PA17C A/C compressor

Hyundai Tucson 2.7L 2006-2009 Air Conditioning Compressor 10PA17C 6PK 977012E100, 977012E300

OE / Part number
977012E100, 977012E300, 977012E200

Hyundai Tucson A/C Compressor; Auto Air Conditioning Compressor; 977012E100 977012E300

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA17C
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA17C
Pulley Groove6PK
Coil Voltage12V
OE / Part number977012E100, 977012E300, 977012E200

§ 04

Product details

Hyundai Tucson 2.7L 2006-2009 Air Conditioning Compressor 10PA17C 6PK 977012E100 977012E300

 Specifications
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity4
Compressor Type10PA17C
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Grooves

R134a

6

VEHICLE FITMENT

2006 Hyundai Tucson 2.7L Engine With Hala HS Compressor
2005 Hyundai Tucson 2.7L Engine With Hala HS Compressor
2007 Hyundai Tucson 2.7L Engine With Hala HS Compressor
2008 Hyundai Tucson 2.7L Engine With Hala HS Compressor

2008 Hyundai Tucson 2.7L Engine With Hala HS Compressor

Alternate/OEM Part Number(s): 977012E100, 977012E200
