Hyundai A/C compressor

Type HS15 Hyundai Tiburon GT 2.7L V6 2003-2008 HS15 6PK Auto A/C Compressor 977012C600 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

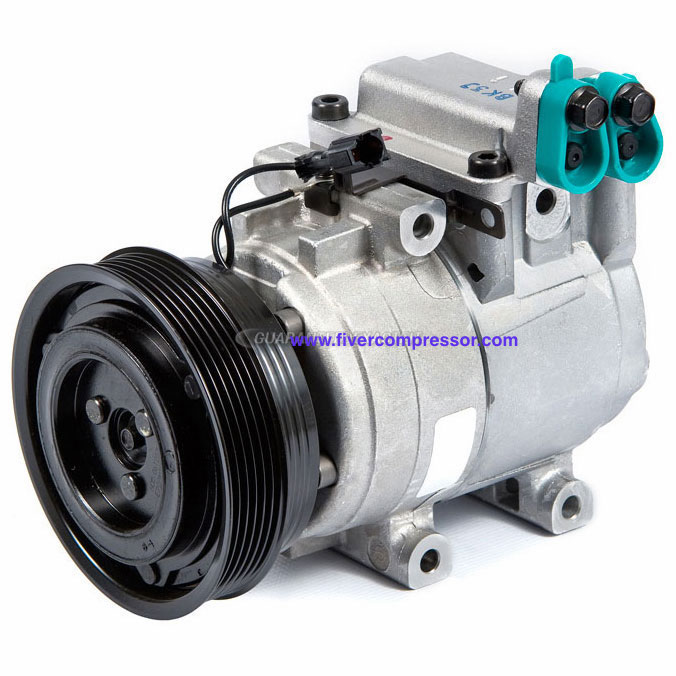

Hyundai HS15 A/C compressor

Hyundai Tiburon GT 2.7L V6 2003-2008 HS15 6PK Auto A/C Compressor 977012C600

OE / Part number
977012C600, 97701-2C600, 255702, 274472

Auto A/C Compressor for Hyundai Tiburon; Hyundai Tiburon Air Conditioning Compressor; 977012C600,97701-2C600

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS15
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS15
Pulley Groove6PK
Coil Voltage12V
OE / Part number977012C600, 97701-2C600, 255702, 274472

§ 04

Product details

Hyundai Tiburon GT 2.7L V6 2003-2008 HS15 6PK Auto A/C Compressor 977012C600

 Specifications
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity4
Compressor TypeHS15
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Grooves

R134a

6PK

VEHICLE FITMENT

YearMakeModelBody & Trim Engine & Transmission
2008HyundaiTiburonGT, GT Limited, SE 2.7L V6 - Gas
2007HyundaiTiburonGT, GT Limited, SE 2.7L V6 - Gas
2006HyundaiTiburonGT, SE 2.7L V6 - Gas
2005HyundaiTiburonGT, SE 2.7L V6 - Gas
2004HyundaiTiburonGT 2.7L V6 - Gas
2003HyundaiTiburonGT 2.7L V6 - Gas

Alternate/OEM Part Number(s): 255702, 274472, 977012C600, 97701-2C600
