Hyundai A/C compressor

Type HS15 Hyundai Tiburon 2.0L L4 1997-2001 HS15 Type 4PK A/C Compressor 97701-27000 9770127000 for Hyundai Elantra GL/GLS 2.0L 1998-2000 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

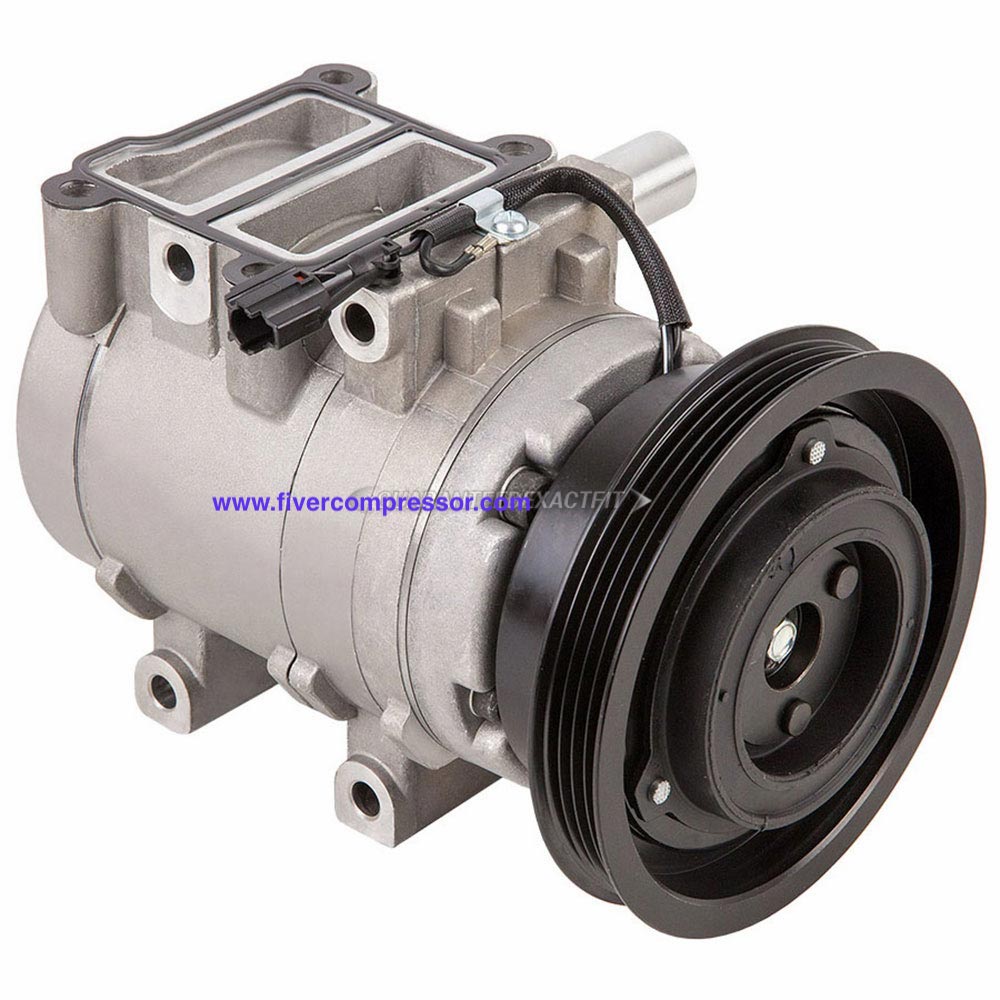

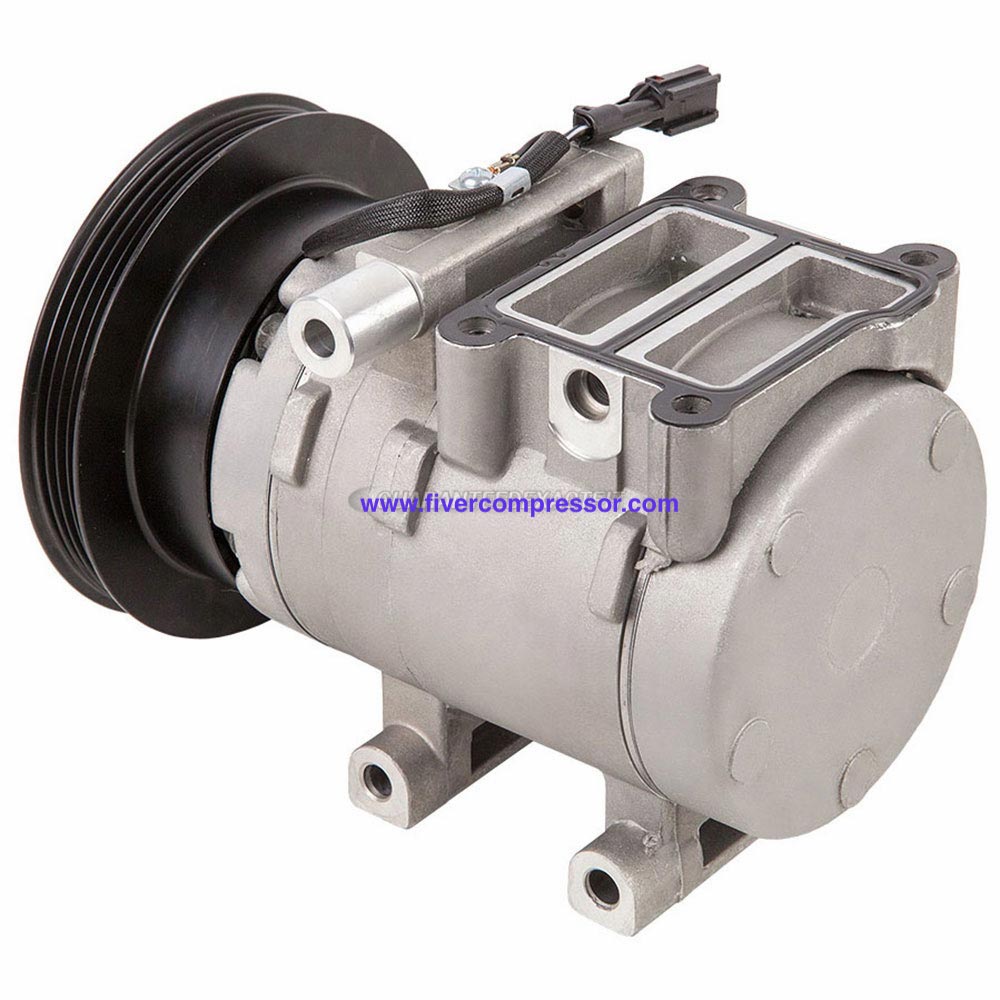

Hyundai HS15 A/C compressor

Hyundai Tiburon 2.0L L4 1997-2001 HS15 Type 4PK A/C Compressor 97701-27000 9770127000 for Hyundai Elantra GL/GLS 2.0L 1998-2000

OE / Part number
97701-27000, 9770127000, 254493, 275759, 471-6007

A/C Compressor for Hyundai Tiburon; AC Compressor for Hyundai Elantra; Automotive A/C Compressor Supplier; 97701-27000 9770127000

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS15
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS15
Pulley Groove4PK
Coil Voltage12V
OE / Part number97701-27000, 9770127000, 254493, 275759, 471-6007

§ 04

Product details

Hyundai Tiburon 2.0L L4 1997-2001 HS15 Type 4PK A/C Compressor 97701-27000 9770127000 for Hyundai Elantra GL/GLS 2.0L 1998-2000

 Specifications
Clutch Maximum Diameter135.0 MM
Compressor Mount Hole Quantity3
Compressor TypeHS15
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Grooves

R134a

4PK

VEHICLE FITMENT

YearMakeModelBody & TrimEngine & Transmission
2001HyundaiTiburonBase2.0L L4 - Gas
2000HyundaiElantraGLS2.0L L4 - Gas
2000HyundaiTiburonBase2.0L L4 - Gas
1999HyundaiElantraGL, GLS2.0L L4 - Gas
1999HyundaiTiburonBase, FX2.0L L4 - Gas
1998HyundaiElantraBase, GL, GLS1.8L L4 - Gas
1998HyundaiTiburonBase, FX2.0L L4 - Gas
1997HyundaiElantraBase, GL, GLS1.8L L4 - Gas

Alternate/OEM Part Number(s): 254493, 275759, 9770127000, 97701-27000,471-6007
