Hyundai A/C compressor

Type VS16M Hyundai Sonata 3.3L 2009-2010 Air Conditioning Compressor Replacement 977013K425, 977013K700 VS16M Type 6PK 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

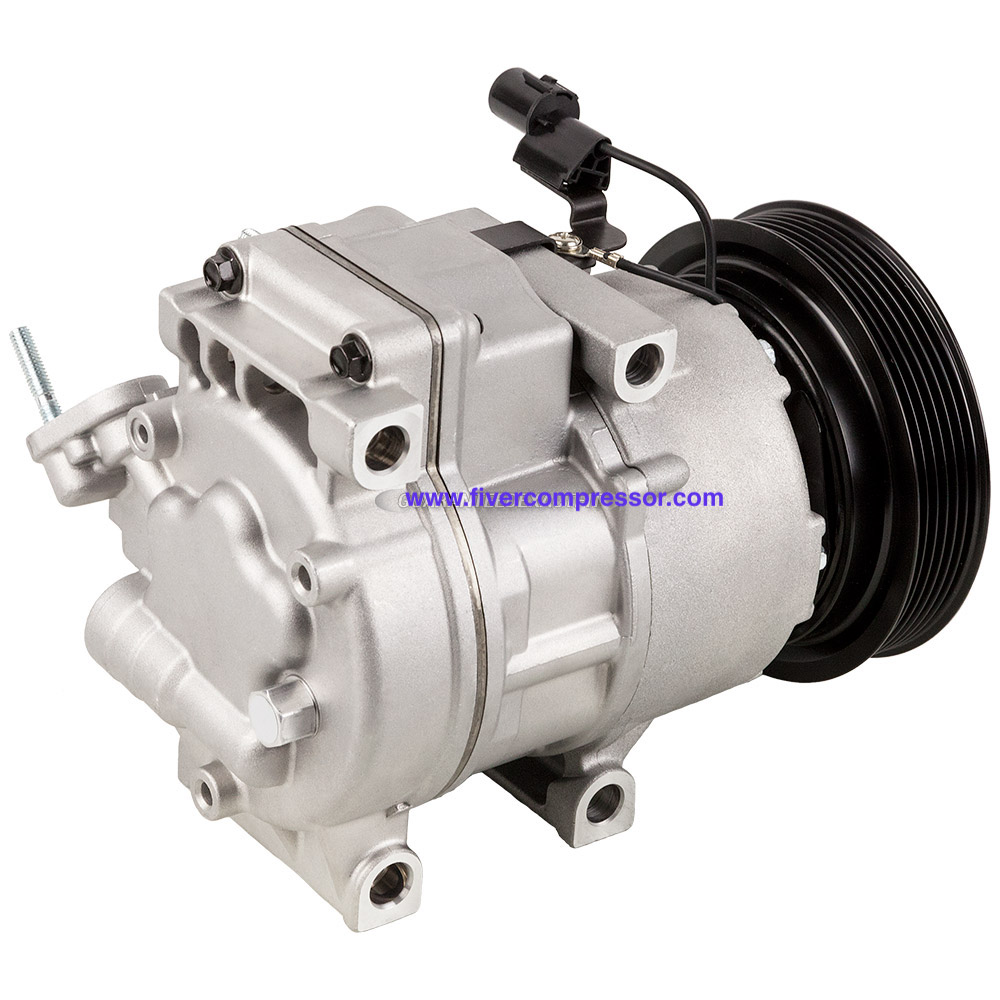

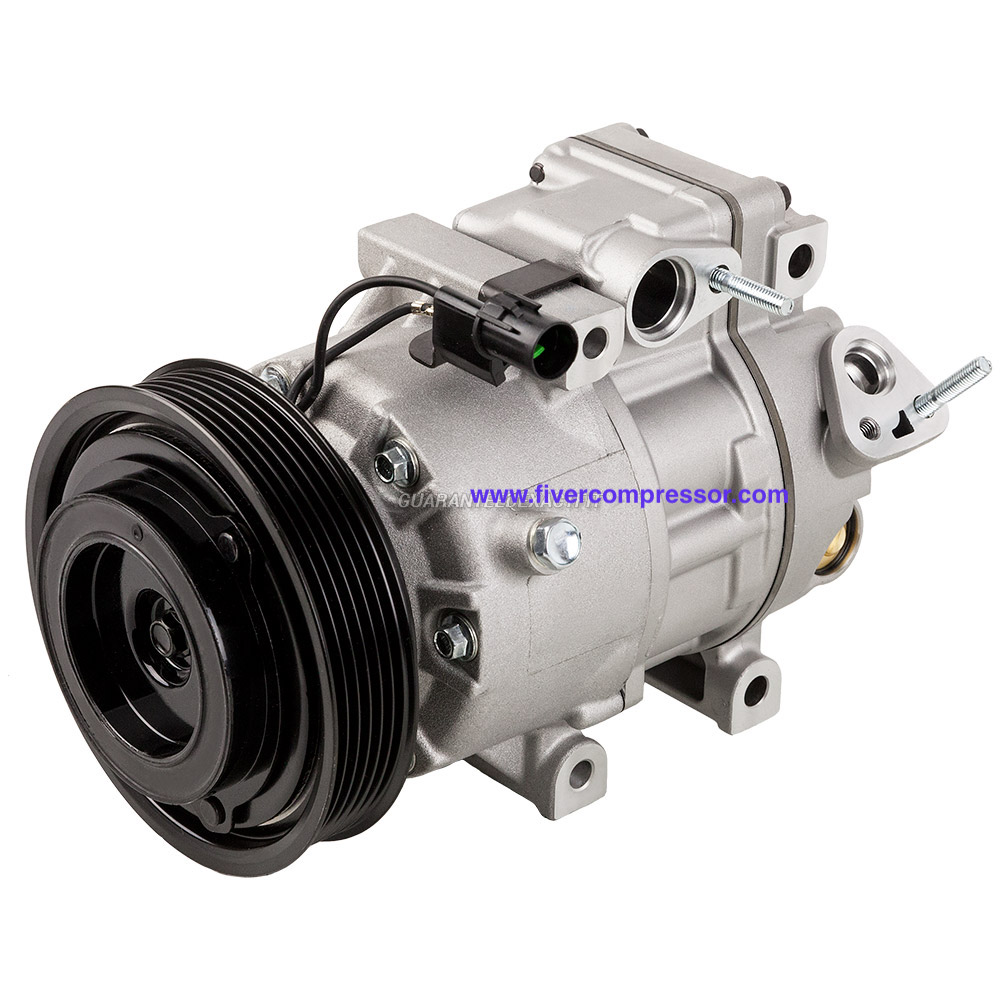

Hyundai VS16M A/C compressor

Hyundai Sonata 3.3L 2009-2010 Air Conditioning Compressor Replacement 977013K425, 977013K700 VS16M Type 6PK

OE / Part number
977013K425, 977013K700

This compressor is a brand new OEM replacement for Hyundai Sonata 3.3L 2009-2010 Air Conditioning Compressor Replacement 977013K425, 977013K700 VS16M Type 6PK, reliable quality and perfect fit.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS16M
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS16M
Pulley Groove6PK
Coil Voltage12V
OE / Part number977013K425, 977013K700

§ 04

Product details

Hyundai Sonata 3.3L 2009-2010 Air Conditioning Compressor Replacement 977013K425, 977013K700 VS16M Type 6PK

 Specifications
Clutch IncludedYes
Coil Voltage12 2H
Compressor TypeVS16

Pulley Groove Quantity

Pulley Diameter

6

125MM

Vehicle Fitment

2009 Hyundai Sonata 3.3L Engine
2010 Hyundai Sonata 3.3L Engine

Alternated OE Numbers:977013K425, 977013K700
