Hyundai A/C compressor

Type DVE16 12V 6PK DVE16 Car AC Compressor 97701D3200 97701-D3200 for Hyundai Tucson 2.0L 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

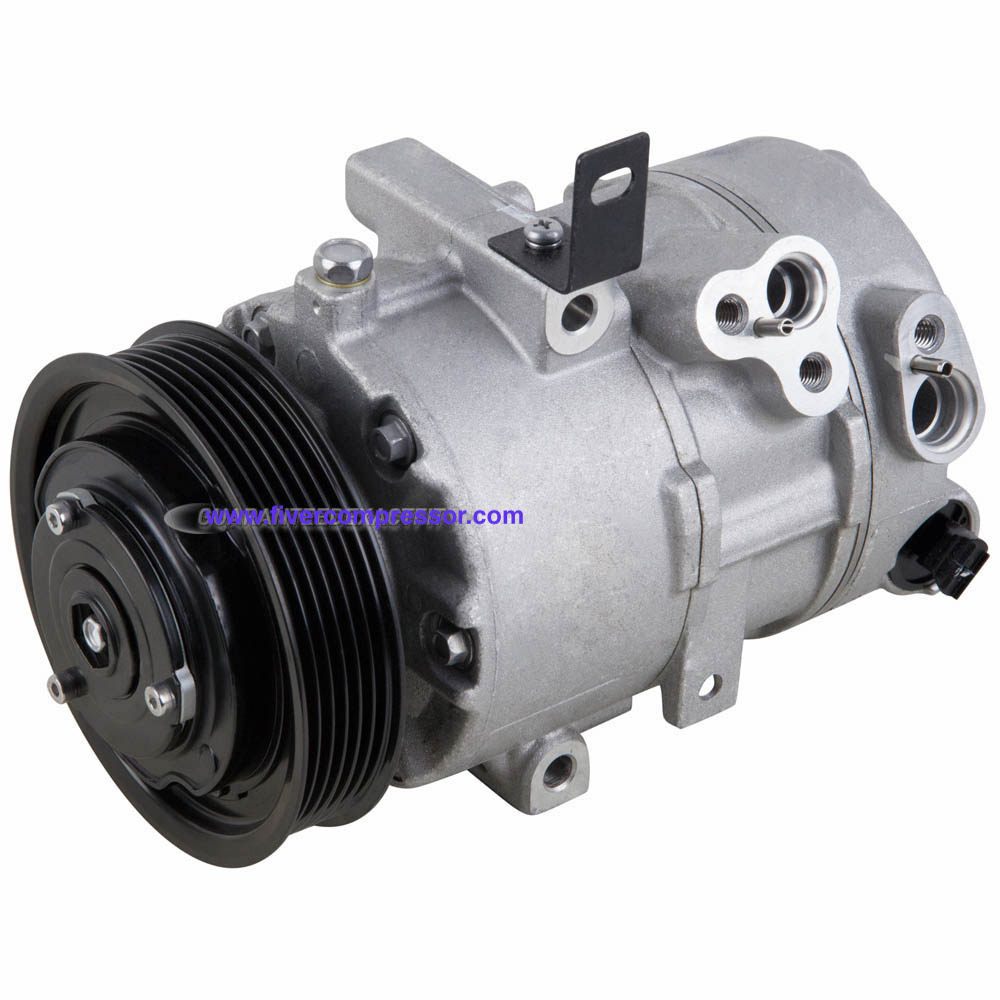

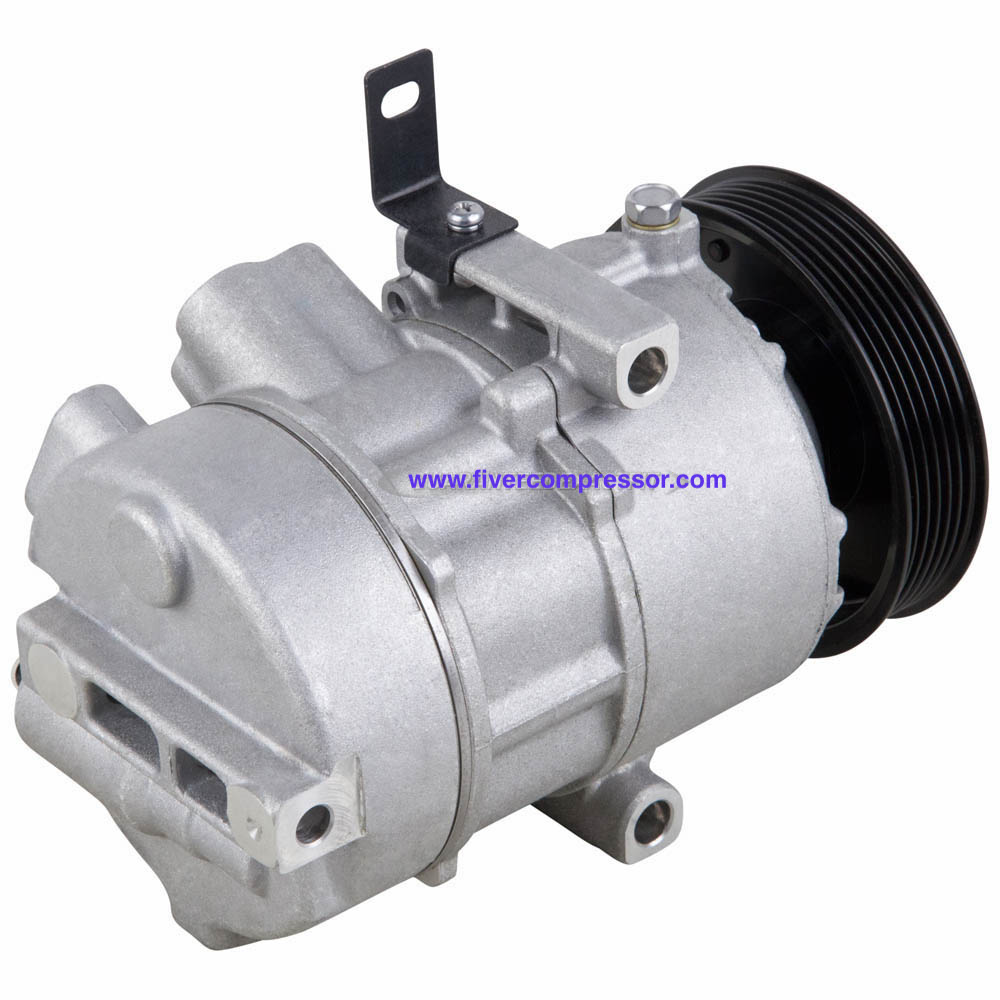

Hyundai DVE16 A/C compressor

12V 6PK DVE16 Car AC Compressor 97701D3200 97701-D3200 for Hyundai Tucson 2.0L

OE / Part number
97701D3200, 97701-D3200

Auto AC Compressor for Hyundai Tucson; Hyundai Tucson Air Conditioning Compressor; Compressor Assy for Car; Car AC Compressor Replacement

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDVE16
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDVE16
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701D3200, 97701-D3200

§ 04

Product details

12V 6PK DVE16 Car AC Compressor97701D3200 97701-D3200for Hyundai Tucson 2.0L Engine 2016-2017



 Specifications
Compressor StyleDVE16
Grooves6

Pulley Diameter (MM)

Compatible Refrigerant Oil Type

Refrigerant Type

115

PAG46

R134a


Vehicle Fitment

2017 Hyundai Tucson 2.0L Engine - To 01/03/2017
2016 Hyundai Tucson 2.0L Engine


Alternated OE: 97701D3200 97701-D3200
