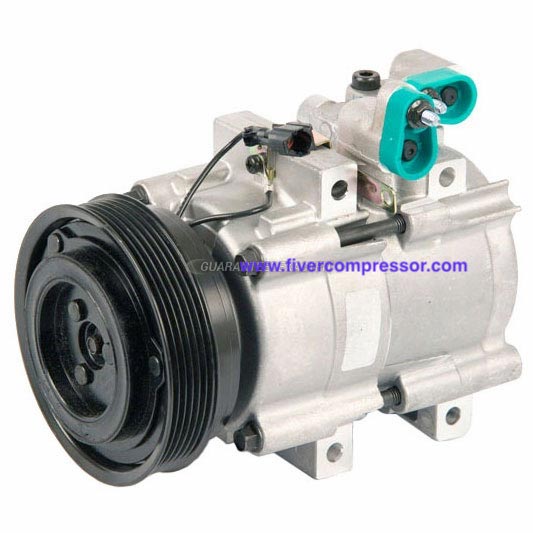

A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
Hyundai Santa Fe GLS A/C Compressor; Automotive A/C Compressor Supplier; 97701-26300 9770139180 9770139181
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
Hyundai Santa Fe GLS 2.7L V6 HS18 6PK Air Conditioning Compressor 97701-26300 9770139180 9770139181

| Specifications | |
|---|---|
| Clutch Maximum Diameter | 130.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Compressor Type | HS18 |
| Mounting Type | Bolt Tangent |
| Oil Included in Compressor (cc) | 150 cc |
| Oil Included in Compressor (oz) | 5.1 oz |
| Oil Type | PAG-FD46XG |
| Pulley Belt Type | Serpentine |
Refrigerant Type Pulley Grooves | R134a 6PK |
| Year | Make | Model | Body & Trim. Engine & Transmission | |
|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | GLS 2.7L V6 - Gas | |
| 2005 | Hyundai | Santa Fe | Base, GLS 2.7L V6 - Gas | |
| 2004 | Hyundai | Santa Fe | GLS 2.7L V6 - Gas | |
| 2003 | Hyundai | Santa Fe | GLS 2.7L V6 - Gas | |
| 2002 | Hyundai | Santa Fe | GLS, LX 2.7L V6 - Gas | |
| 2001 | Hyundai | Santa Fe | GL, GLS, LX 2.7L V6 - Gas |
Alternate/OEM Part Number(s): 275487, 97701-26300 9770139180 9770139181
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
