Hyundai A/C compressor

Type HS20 Hyundai ENTOURAGE GLS V6 3.8L 2007-2008 and HYUNDAI ENTOURAGE LIMITED V6 2007-2008 HS20 6PK AC Compressor 977014D900,977014D901 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

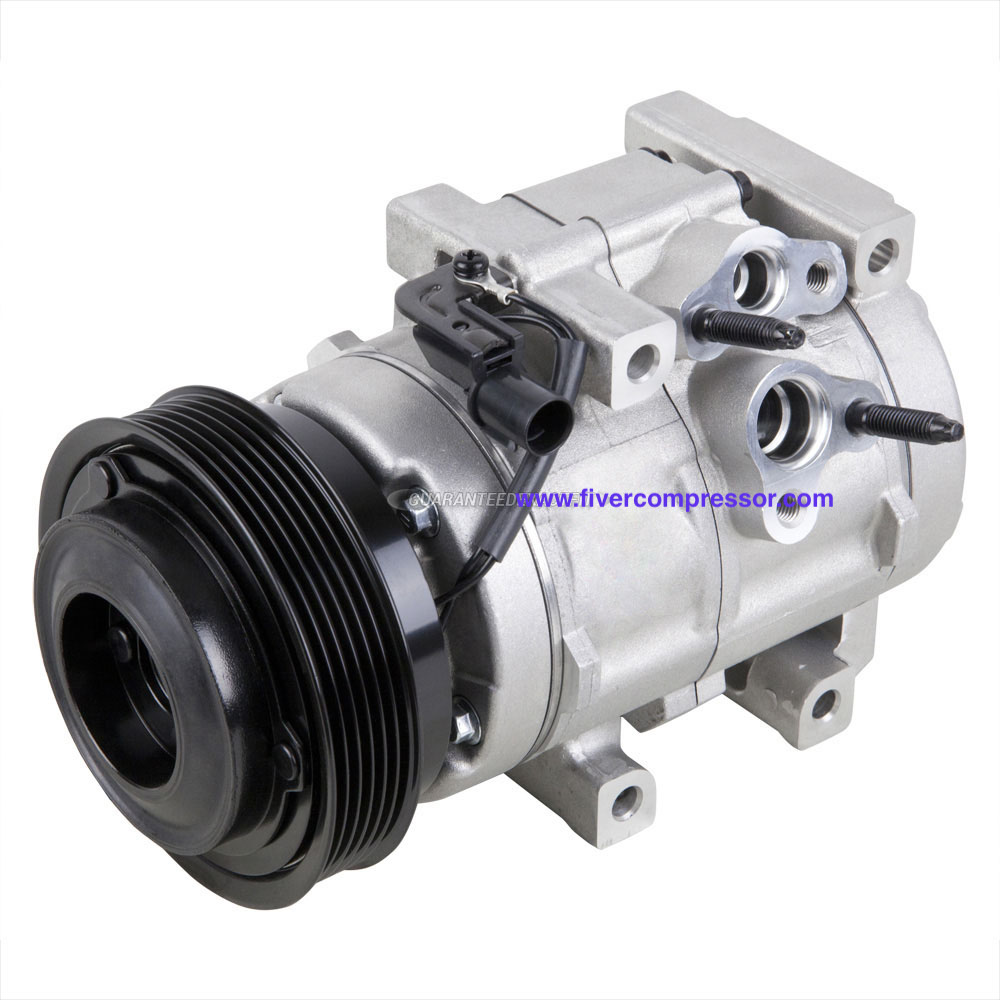

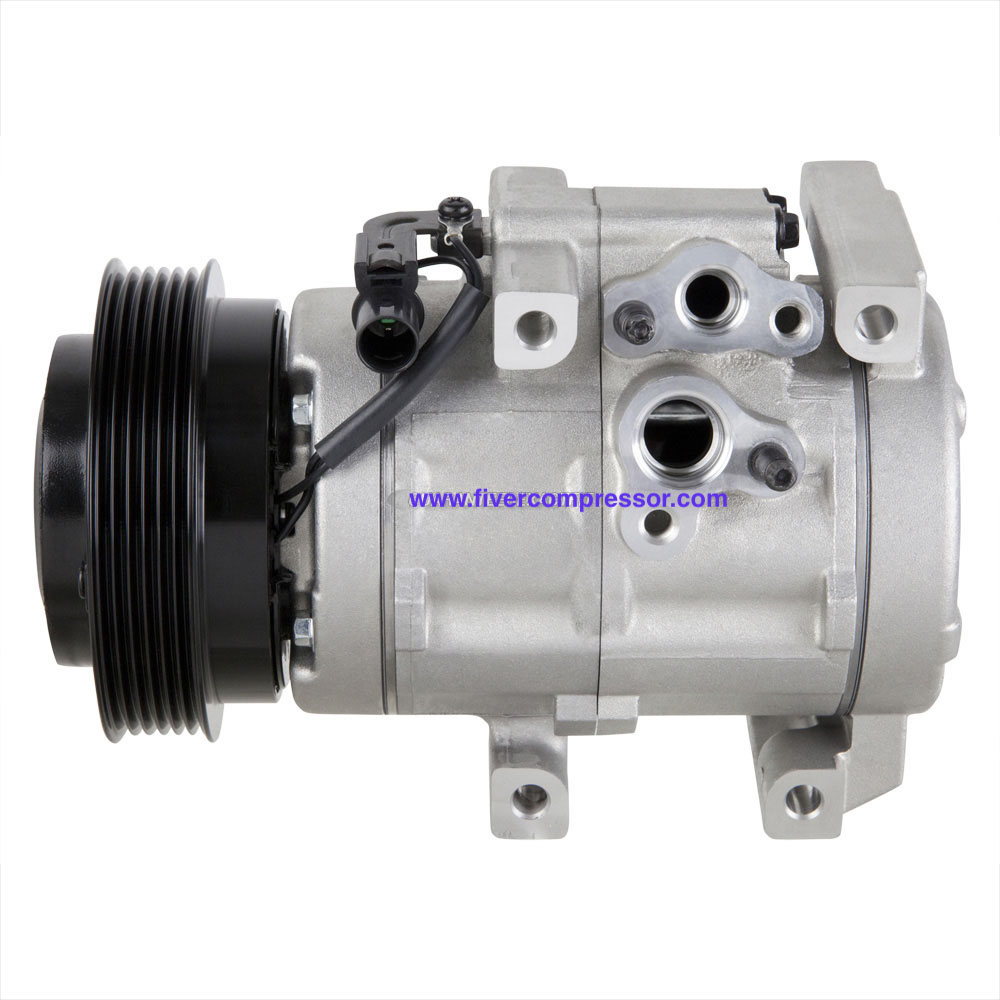

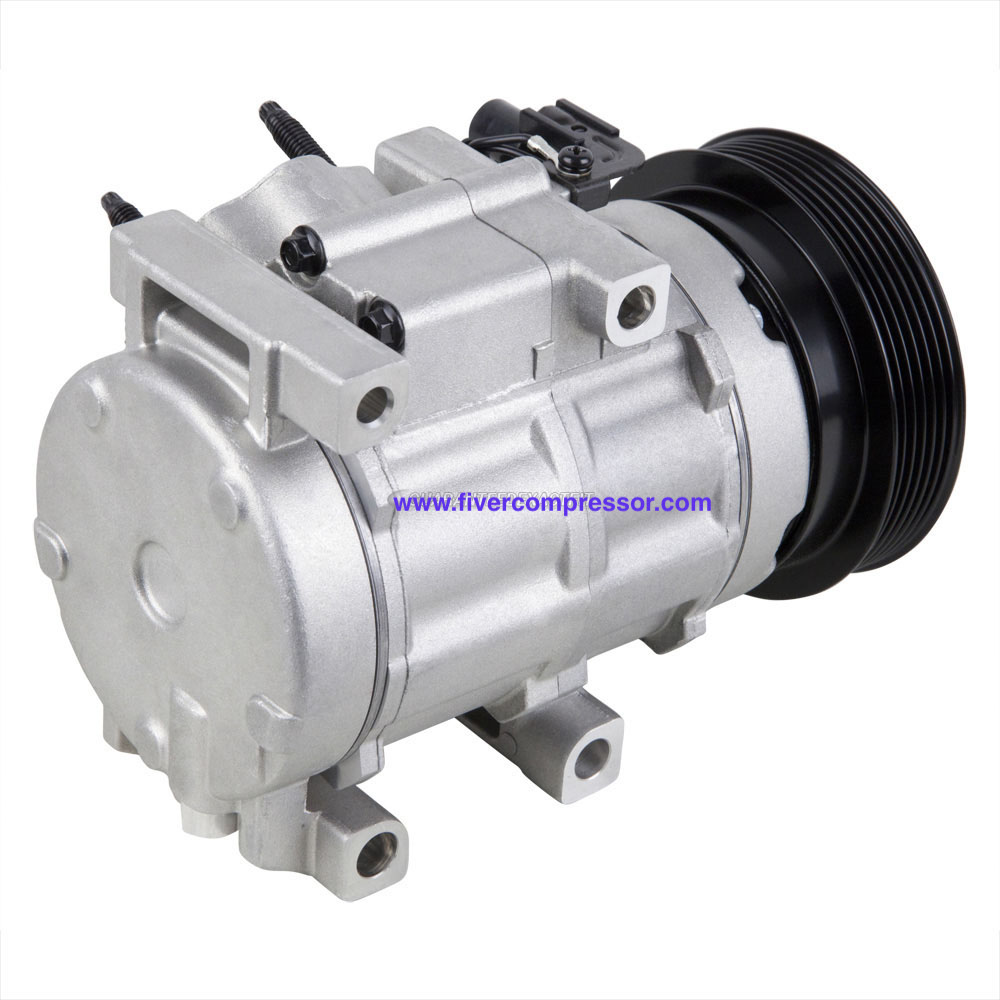

Hyundai HS20 A/C compressor

Hyundai ENTOURAGE GLS V6 3.8L 2007-2008 and HYUNDAI ENTOURAGE LIMITED V6 2007-2008 HS20 6PK AC Compressor 977014D900,977014D901

OE / Part number
977014D900, 977014D901, 255309, 274482, 977014D900RU

Hyundai A/C Compressor; Automotive A/C Compressor Supplier; AC Compressor for Hyundai Entourage; 977014D900,977014D901

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS20
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS20
Pulley Groove6PK
Coil Voltage12V
OE / Part number977014D900, 977014D901, 255309, 274482, 977014D900RU

§ 04

Product details

Hyundai ENTOURAGE GLS V6 3.8L 2007-2008 and HYUNDAI ENTOURAGE LIMITED V6 2007-2008 HS20 6PK AC Compressor 977014D900,977014D901

Specifications
Clutch Maximum Diameter119.0 MM
Compressor Mount Hole Quantity4
Compressor TypeHS20
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)230 cc
Oil Included in Compressor (oz)7.8 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Grooves

R134a

6PK

VEHICLE FITMENT

YearMakeModelBody & TrimEngine & Transmission
2008HyundaiEntourageGLS, Limited3.8L V6 - Gas
2007HyundaiEntourageGLS, Limited, SE3.8L V6 - Gas


Alternate/OEM Part Number(s): 255309, 274482, 977014D900, 977014D900RU, 977014D901
