A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
Auto AC Compressor for Hyundai Accent; A/C Compressor for Hyundai Veloster; Automotive A/C Compressor Supplier
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

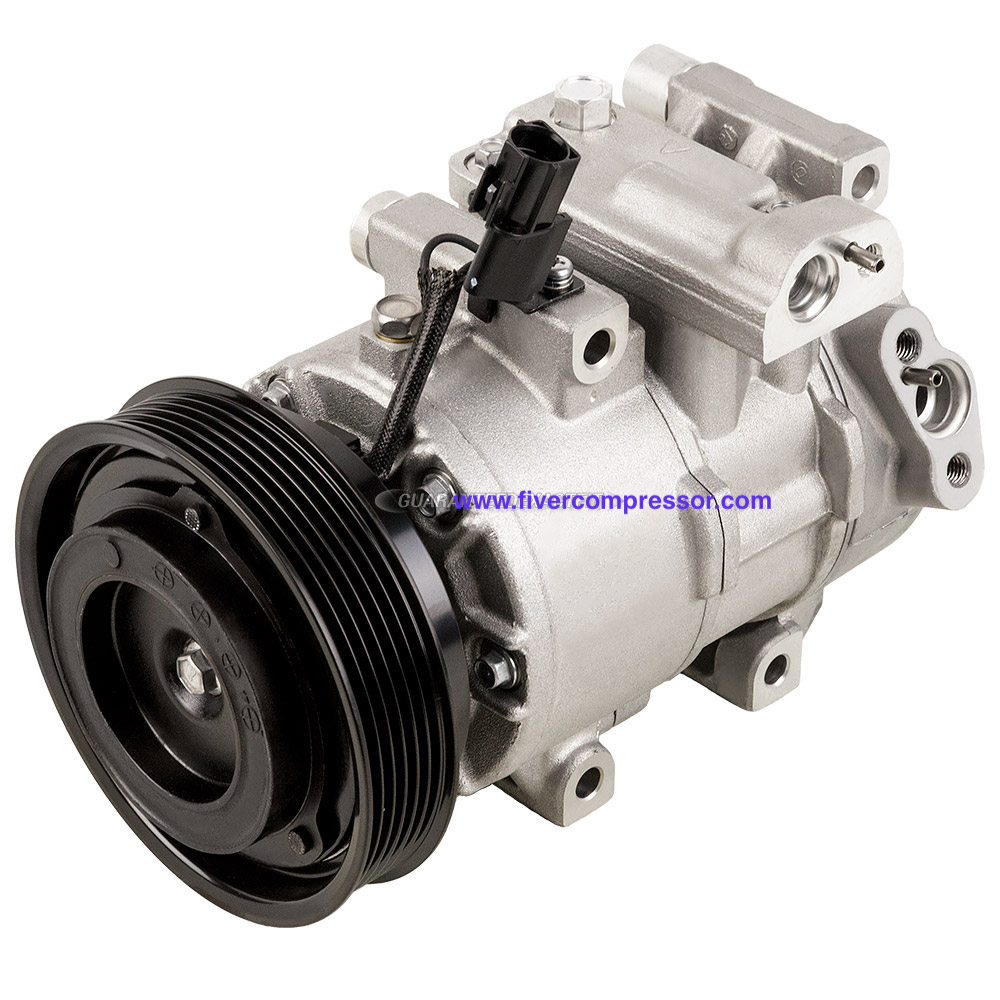

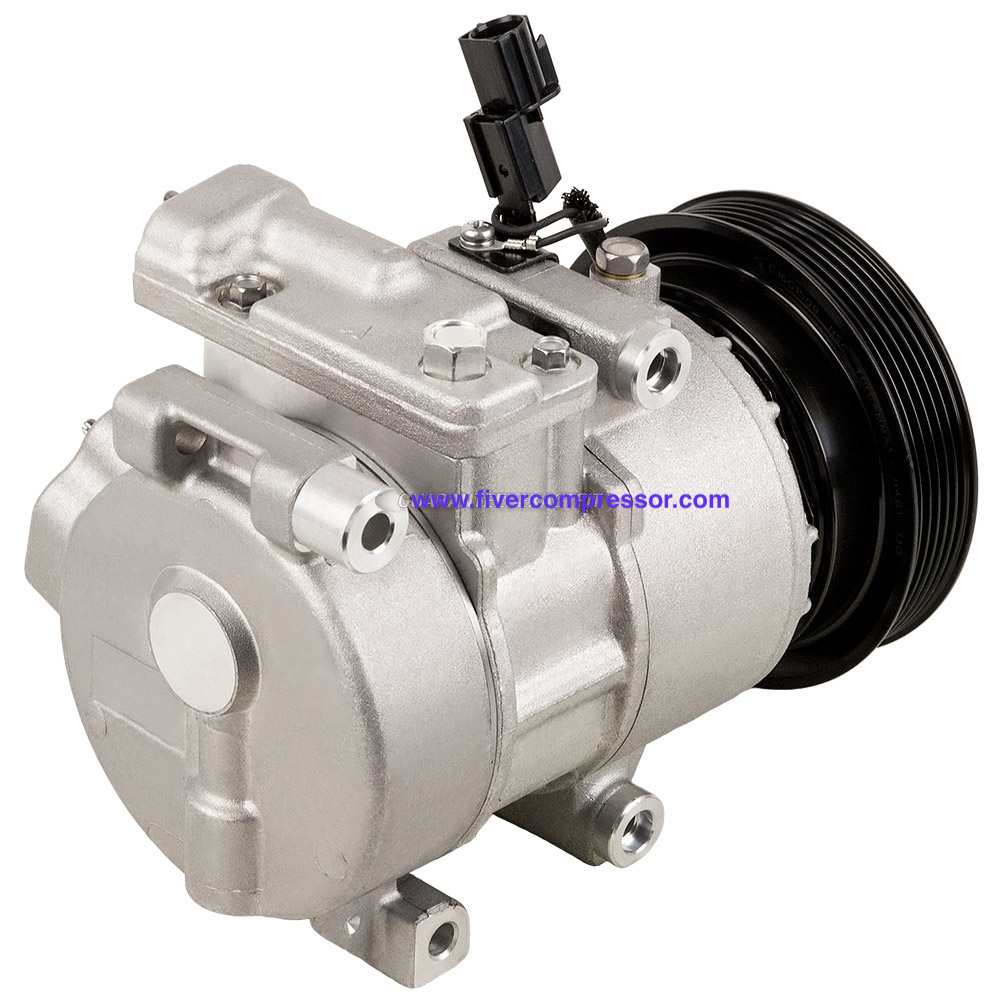

Hyundai A/C Compressor 977011J101 977011R000 977012V000 for Hyundai ACCENT 2012-2014 and Hyundai VELOSTER 2012-2017

| UAC CO11360C Specifications | |
|---|---|
| Compressor Fitting | Pad |
| Compressor Mount | tangent |
| Compressor Mount | Direct |
| Compressor Style | DV13 |
| Grooves | 6 |
Suction Port Diameter (MM) Pulley Diameter | 16 125MM |
2012 Hyundai Veloster Base
2013 Hyundai Veloster Base
2013 Hyundai Veloster Turbo
2014 Hyundai Veloster Naturally Aspirated - To 02/18/2014
2014 Hyundai Veloster Turbocharged - To 02/18/2014
OE: 977011J101 977011R000 977012V000
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
