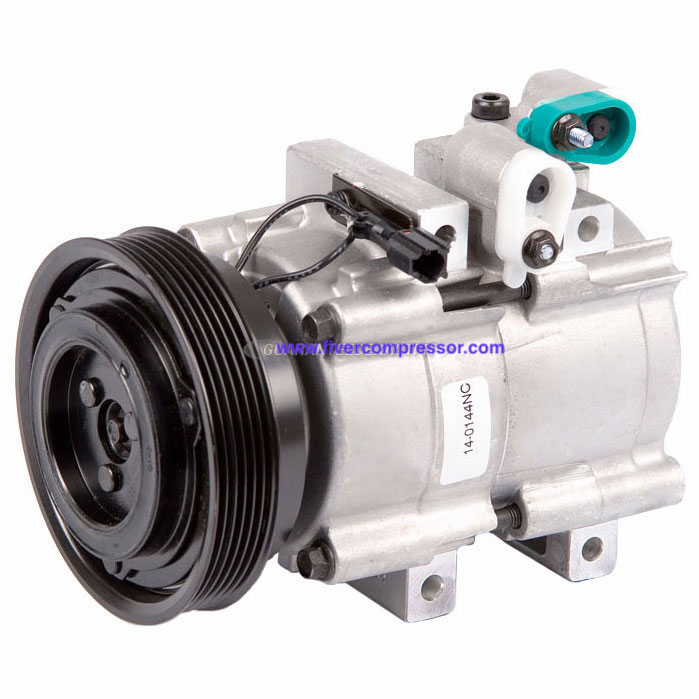

Hyundai A/C compressor

Type HS18 HS18 6PK Auto A/C Compressor 97701-39881 9770139881 9770139882 for Hyundai XG300 2001 and Hyundai XG350 2002-2005 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Hyundai HS18 A/C compressor

HS18 6PK Auto A/C Compressor 97701-39881 9770139881 9770139882 for Hyundai XG300 2001 and Hyundai XG350 2002-2005

OE / Part number
97701-39881, 9770139881, 9770139882, 255705, 274475, 9770139881RU, 471-6015

Auto A/C compressor manufacturer; AC Compressor for Hyundai XG300; Hyundai XG350 A/C Compressor; 97701-39881, 9770139881, 9770139882

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS18
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS18
Pulley Groove6PK
Coil Voltage12V
OE / Part number97701-39881, 9770139881, 9770139882, 255705, 274475, 9770139881RU, 471-6015

§ 04

Product details

HS18 6PK Auto A/C Compressor 97701-39881 9770139881 9770139882 for Hyundai XG300 2001 and Hyundai XG350 2002-2005

DENSO 4716015 Specifications
Clutch Maximum Diameter130.0 MM
Compressor Mount Hole Quantity4
Compressor TypeHS18
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Groove

R134a

6PK



VEHICLE FITMENT


2001 Hyundai XG300 All Models


2004 Hyundai XG350 From Production Date 5/18/04
2005 Hyundai XG350 From Production Date 5/18/04
2002 Hyundai XG350 Production Date from 11/12/02

2003 Hyundai XG350 Production Date from 11/12/02

2002 Hyundai XG350 To Production Date 11/11/02

2004 Hyundai XG350 To Production Date 5/17/04

2005 Hyundai XG350 To Production Date 5/17/04


2004 Kia Amanti All Models

2005 Kia Amanti All Models

2006 Kia Amanti All Models


Alternate/OEM Part Number(s): 255705, 274475, 9770139881, 9770139881RU, 9770139882, 471-6015

§ 05

Similar compressors

No.CompressorClutchPulley
