Hyundai A/C compressor

Type HS18 HS18 5PK A/C Compressor 97701-26010, 97701-26011 for Hyundai Santa Fe 2.4L for Hyundai Sonata 2.4L and Kia Optima 2.4L 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Hyundai HS18 A/C compressor

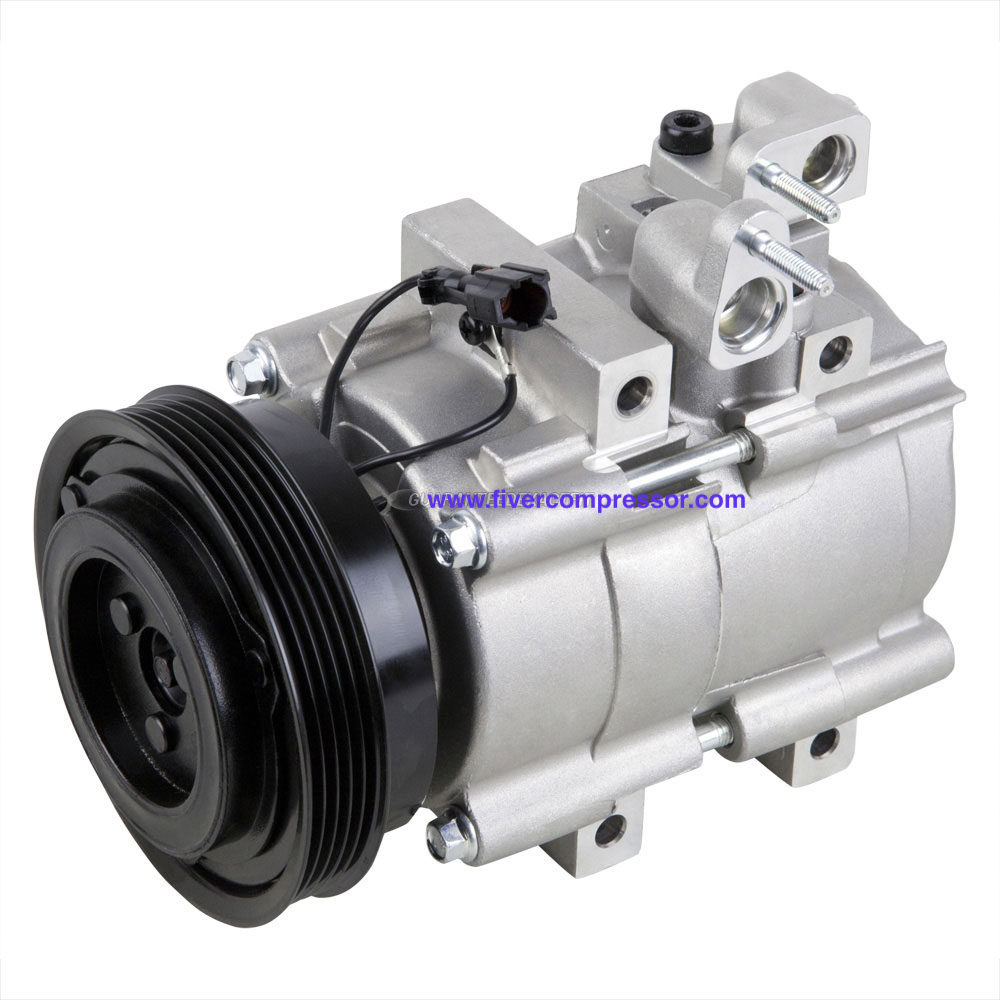

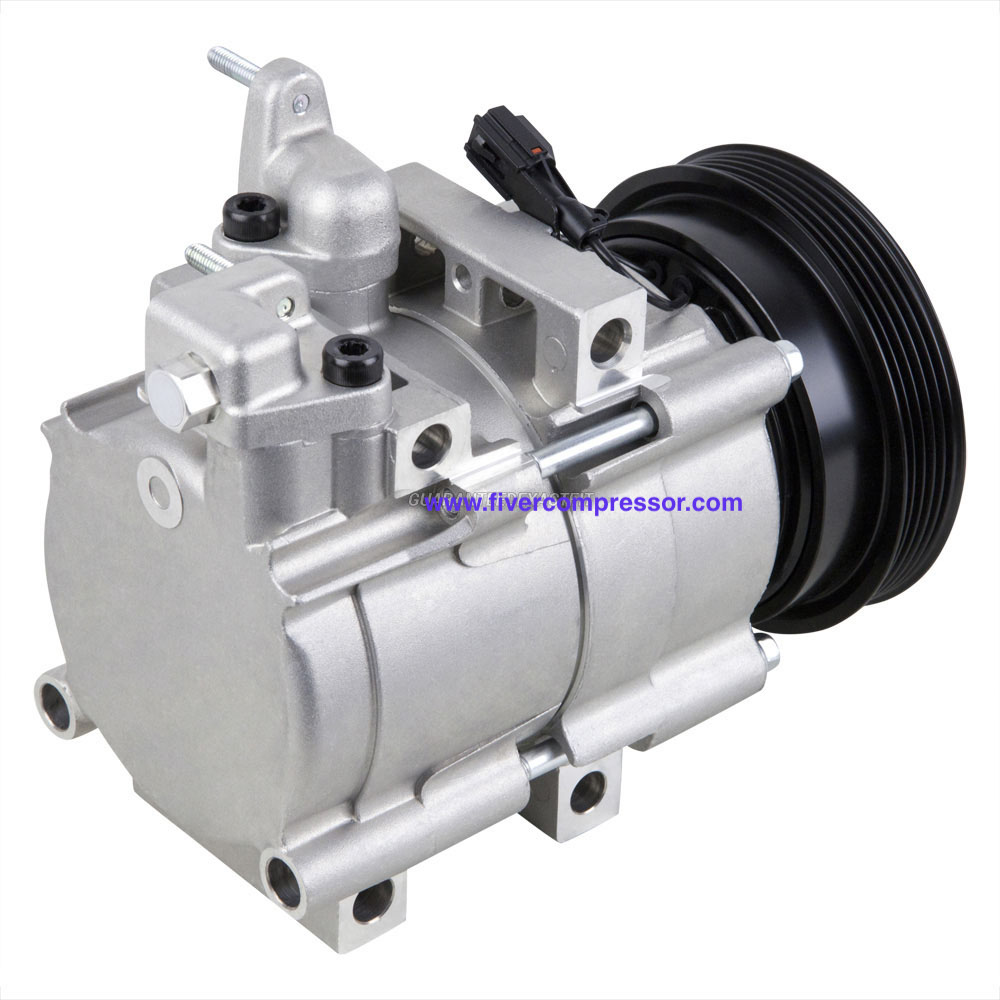

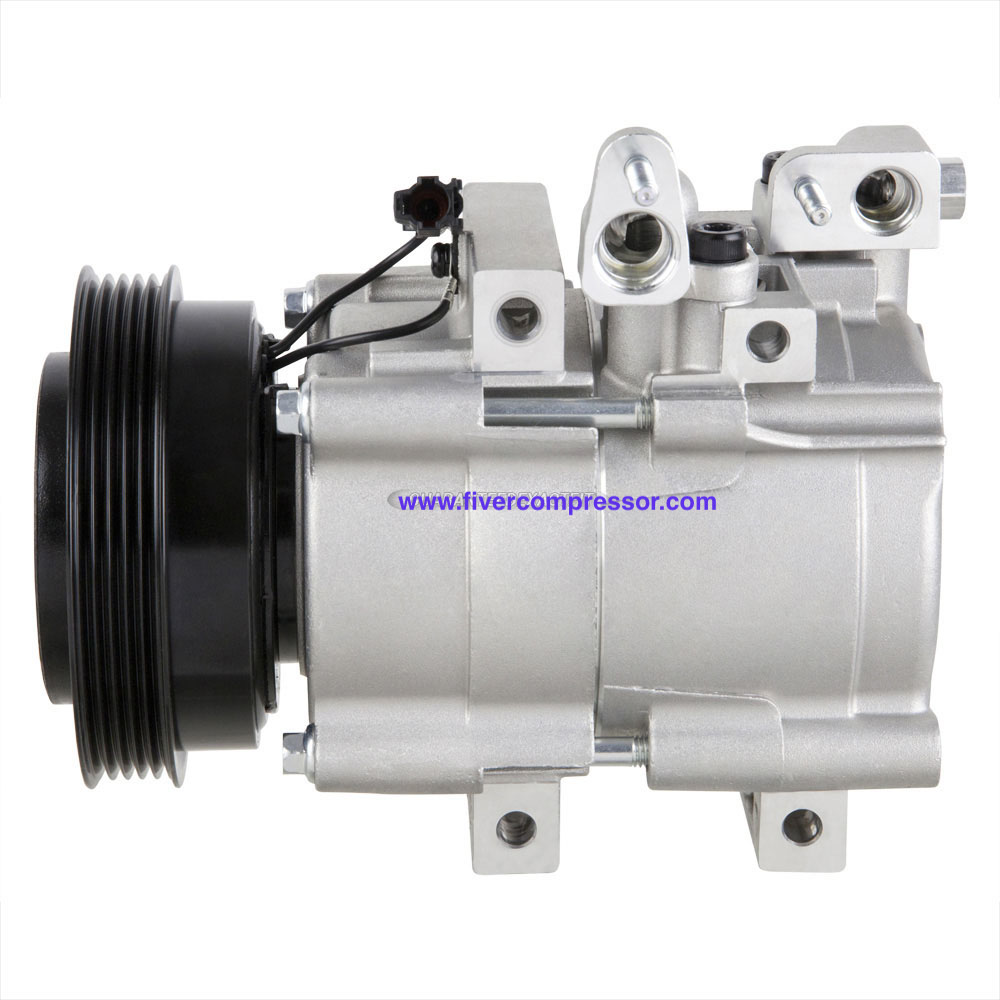

HS18 5PK A/C Compressor 97701-26010, 97701-26011 for Hyundai Santa Fe 2.4L for Hyundai Sonata 2.4L and Kia Optima 2.4L

OE / Part number
9770126010, 9770126011, 977013A570, 9770126300, 9770139180, 9770139181, 977013A571, 977013A580, 977013E400, 97701-26010, 97701-26011

Cheap auto A/C Compressor; AC Compressor for Hyundai; Air-Con compressor for Hyundai Santa Fe; ac compressor for Hyundai Sonata

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS18
Pulley Grooves5PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS18
Pulley Grooves5PK
Coil Voltage12V
OE / Part number9770126010, 9770126011, 977013A570, 9770126300, 9770139180, 9770139181, 977013A571, 977013A580, 977013E400, 97701-26010, 97701-26011

§ 04

Product details

HS18 5PK A/C Compressor 9770126010, 9770126011, 977013A570 for Hyundai Santa Fe 2.4L 2001-2006 for Hyundai Sonata 2.4L 1999-2005 and Kia Optima 2.4L 2001-2006

 Specifications
Compressor OilPAG 46
Compressor Pulley Diam.4 15/16"
Compressor Pulley Nr. Of Grooves5
Compressor RefrigerantR134a
Compressor StyleFS-10
SpecialtyPREFILLED PAG OIL
Vehicle Fitment

2001 Hyundai Santa Fe 2.4L Engine
2002 Hyundai Santa Fe 2.4L Engine
2003 Hyundai Santa Fe 2.4L Engine
2004 Hyundai Santa Fe 2.4L Engine

  • 2005 Hyundai Santa Fe 2.4L Engine
  • 2006 Hyundai Santa Fe 2.4L Engine
  • 1999 Hyundai Sonata 2.4L Engine
  • 2000 Hyundai Sonata 2.4L Engine
  • 2001 Hyundai Sonata 2.4L Engine
  • 2002 Hyundai Sonata 2.4L Engine
  • 2004 Hyundai Sonata 2.4L Engine
  • 2005 Hyundai Sonata 2.4L Engine
  • 2003 Hyundai Sonata Before November 2002 - 2.4L Engine
  • 2003 Hyundai Sonata From November 2002 - 2.4L Engine
  • 2001 Kia Optima 2.4L Engine
  • 2002 Kia Optima 2.4L Engine
  • 2004 Kia Optima 2.4L Engine
  • 2005 Kia Optima 2.4L Engine
  • 2003 Kia Optima 2.4L Engine - From 11/14/2002
  • 2003 Kia Optima 2.4L Engine - To 11/14/2002
  • 2006 Kia Optima 2.4L Engine - To Production Date 09/30/05

Alternate/OEM Part Number(s): 9770126010, 9770126011, 9770126300, 9770139180, 9770139181, 977013A570, 977013A571, 977013A580, 977013E400
