Hyundai A/C compressor

Type HS15 HS15 4PK Hyundai AC Compressor 9770125100 97701FD000RU for Hyundai Accent 1.6L 2001-2005 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

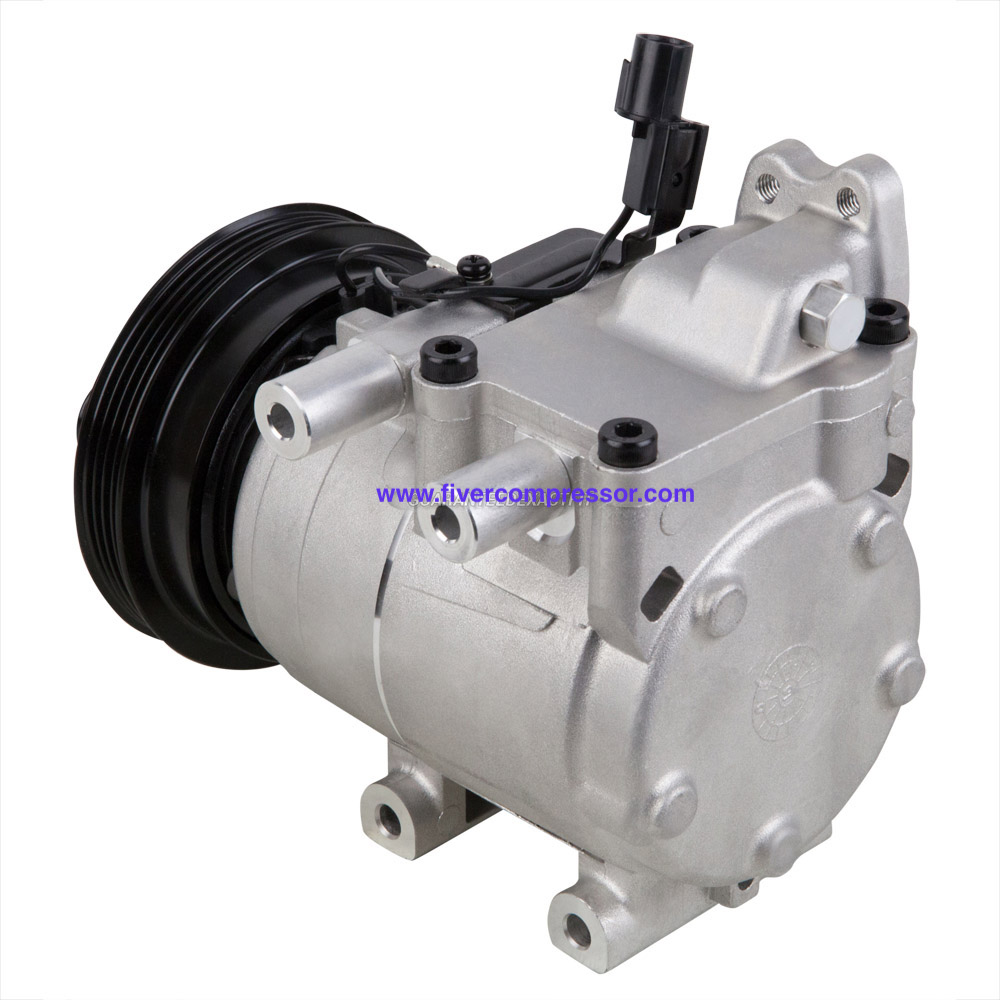

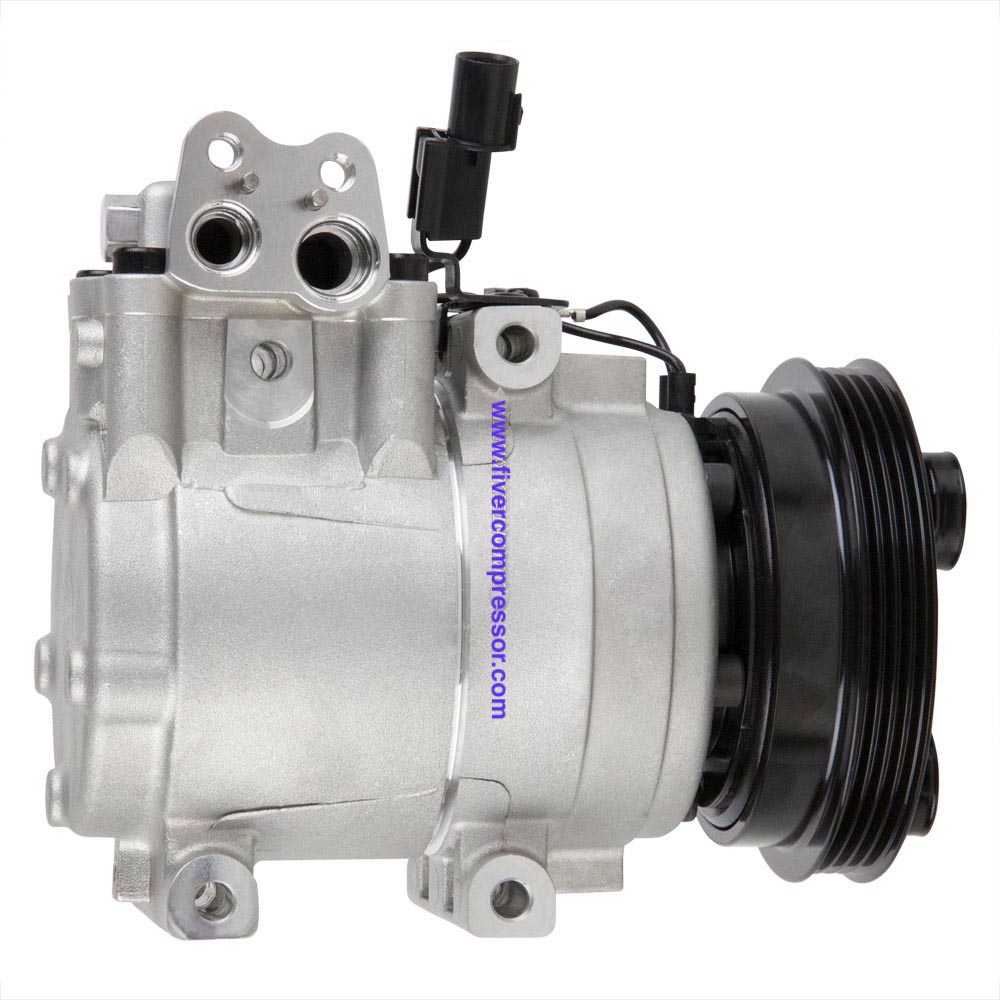

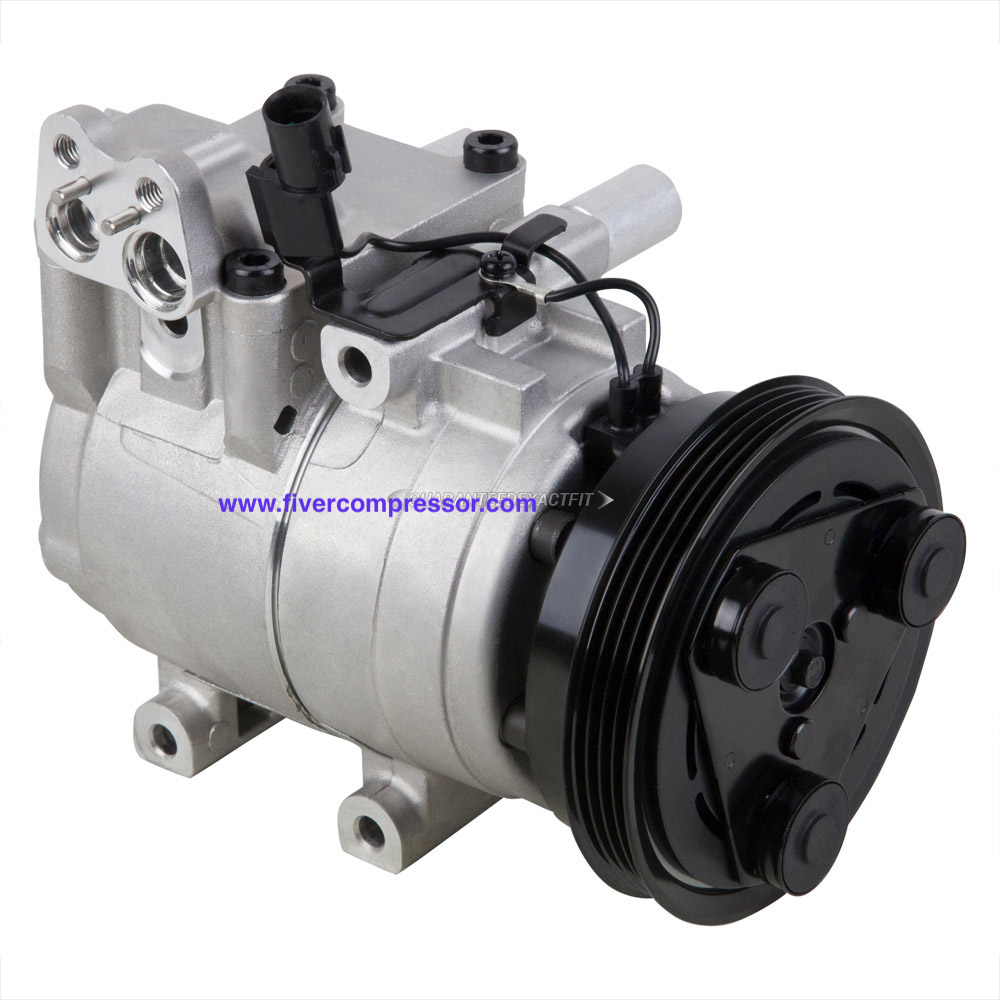

Hyundai HS15 A/C compressor

HS15 4PK Hyundai AC Compressor 9770125100 97701FD000RU for Hyundai Accent 1.6L 2001-2005

OE / Part number
9770125100, 97701FD000RU, 255461, 274473, 471-6005

Automotive A/C Compressor Supplier; Hyundai Accent AC Compressor; 9770125100, 97701FD000RU

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS15
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS15
Pulley Groove4PK
Coil Voltage12V
OE / Part number9770125100, 97701FD000RU, 255461, 274473, 471-6005

§ 04

Product details

HS15 4PK Hyundai AC Compressor 9770125100 97701FD000RU for Hyundai Accent 1.6L 2001-2005

 Specifications
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity4
Compressor TypeHS15
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Grooves

R134a

4PK


VEHICLE FITMENT

2001 Hyundai Accent 1.6L Engine

2002 Hyundai Accent 1.6L Engine

2003 Hyundai Accent 1.6L Engine

2004 Hyundai Accent All Models

2005 Hyundai Accent All Models

Alternate/OEM Part Number(s): 255461, 274473, 9770125100,97701FD000RU, 471-6005
