Hyundai A/C compressor

Type HS15 HS15 4PK Auto Compressor Assembly 97701-22261, 97701-22200, 97701-29510 for Hyundai Accent GS/GL/L 1995-1998 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

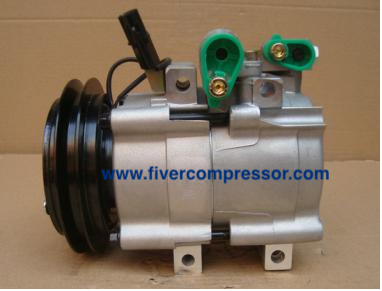

Hyundai HS15 A/C compressor

HS15 4PK Auto Compressor Assembly 97701-22261, 97701-22200, 97701-29510 for Hyundai Accent GS/GL/L 1995-1998

OE / Part number
97701-22261, 97701-22200, 97701-29510, 967254, 9770122200, 9770122261, 9770129510, 471-6009

Buy A/C Compressor Online; AC Compressor for Hyundai Accent; 97701-22261, 97701-22200, 97701-29510

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS15
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS15
Pulley Groove4PK
Coil Voltage12V
OE / Part number97701-22261, 97701-22200, 97701-29510, 967254, 9770122200, 9770122261, 9770129510, 471-6009

§ 04

Product details

HS15 4PK Auto Compressor Assembly 97701-22261, 97701-22200, 97701-29510 for Hyundai Accent GS/GL/L 1995-1998

 Specifications
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity3
Compressor TypeHS15
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine

Refrigerant Type

Pulley Grooves

R134a

4PK

VEHICLE FITMENT

YearMakeModelBody & TrimEngine & Transmission
1999HyundaiAccentGL, GS, L1.5L L4 - Gas
1998HyundaiAccentGL, GS, GSi, L1.5L L4 - Gas

Alternate/OEM Part Number(s): 967254, 9770122200, 9770122261, 9770129510, 471-6009
