A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
4PK · 12V
AC Compressor for Hyundai; Hyundai Tiburon A/C Compressor; Air Conditioning Compressor for Hyundai Elantra; 977012C100, 977012D100, 977012E000
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

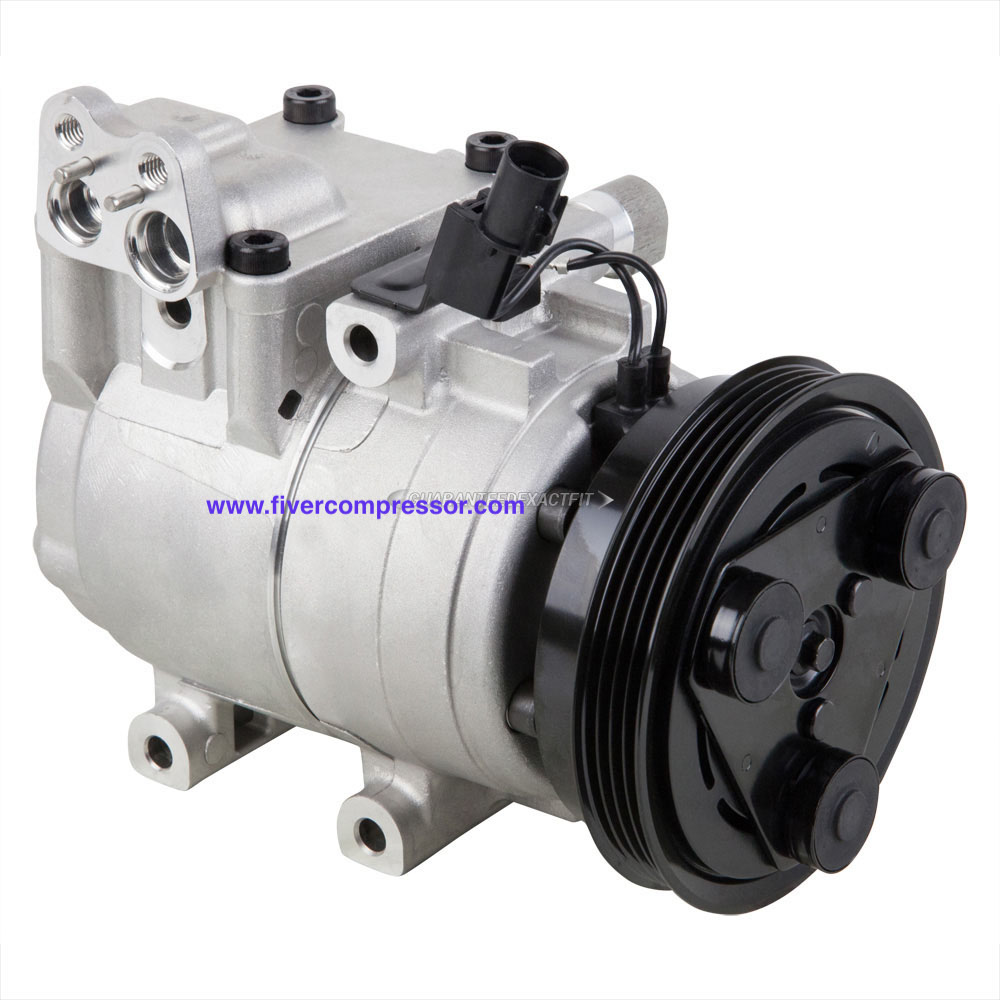

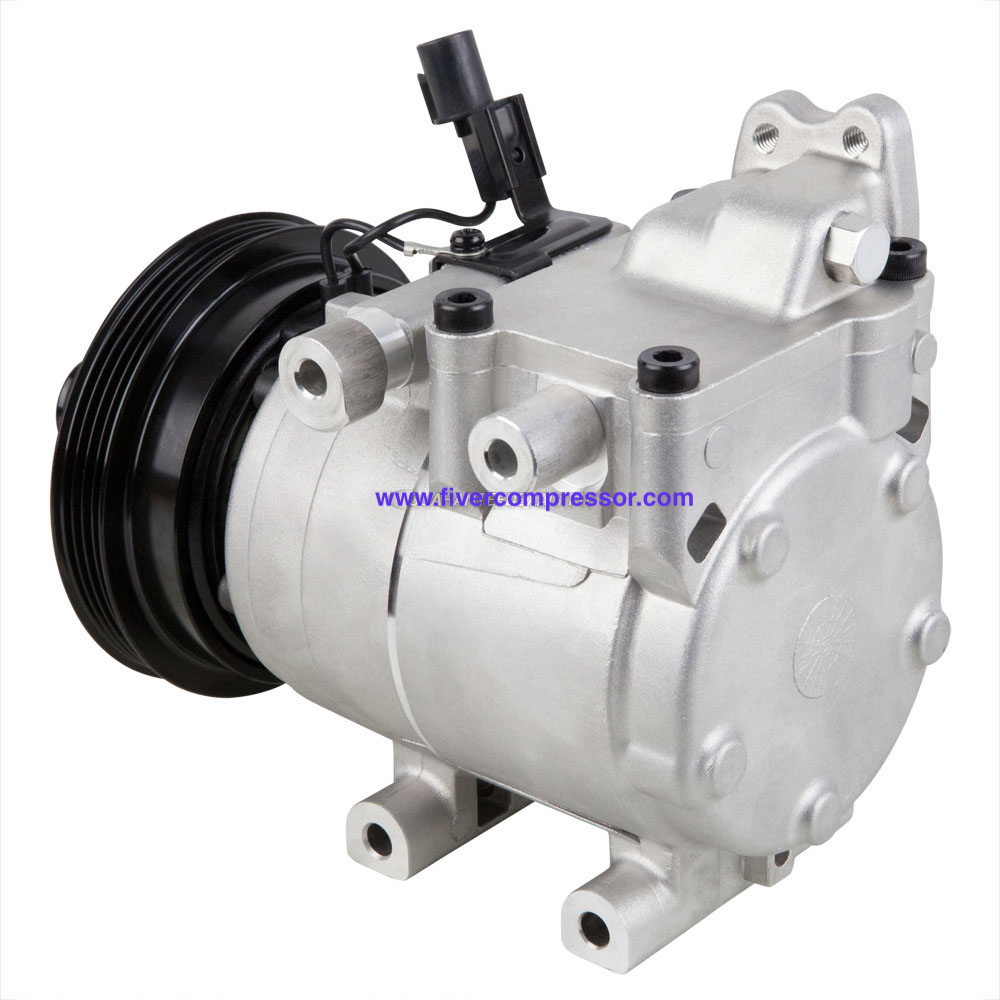

HS15 4PK 12V Auto A/C Compressor 977012C100 977012D100 977012E000 for Hyundai Tiburon 2.0L 2001-2008 and for Hyundai Elantra 2001-2006

| Specifications | |
|---|---|
| Clutch Maximum Diameter | 125.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Compressor Type | HS15 |
| Mounting Type | Bolt Tangent |
| Oil Included in Compressor (cc) | 150 cc |
| Oil Included in Compressor (oz) | 5.1 oz |
| Oil Type | PAG-FD46XG |
| Pulley Belt Type | Serpentine |
Refrigerant Type Pulley Grooves | R134a 4PK |
| Year Make Model | Trim & Engine | Important vehicle option details |
|---|---|---|
| 2000-2006 Hyundai Elantra | High Grade, Middle Grade | 4 Door Sedan, 5 Door Sedan |
| 2001-2008 Hyundai Tiburon | High Grade, Middle Grade|DOHC - MPI | 2 Door Coupe, Coupe - 2Door 4P |
| 2004-2006 Hyundai Tucson | High Grade, Middle Grade | 5 Door Wagon |
Alternate/OEM Part Number(s): 977012, 977012C100, 977012D100, 977012E000
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
