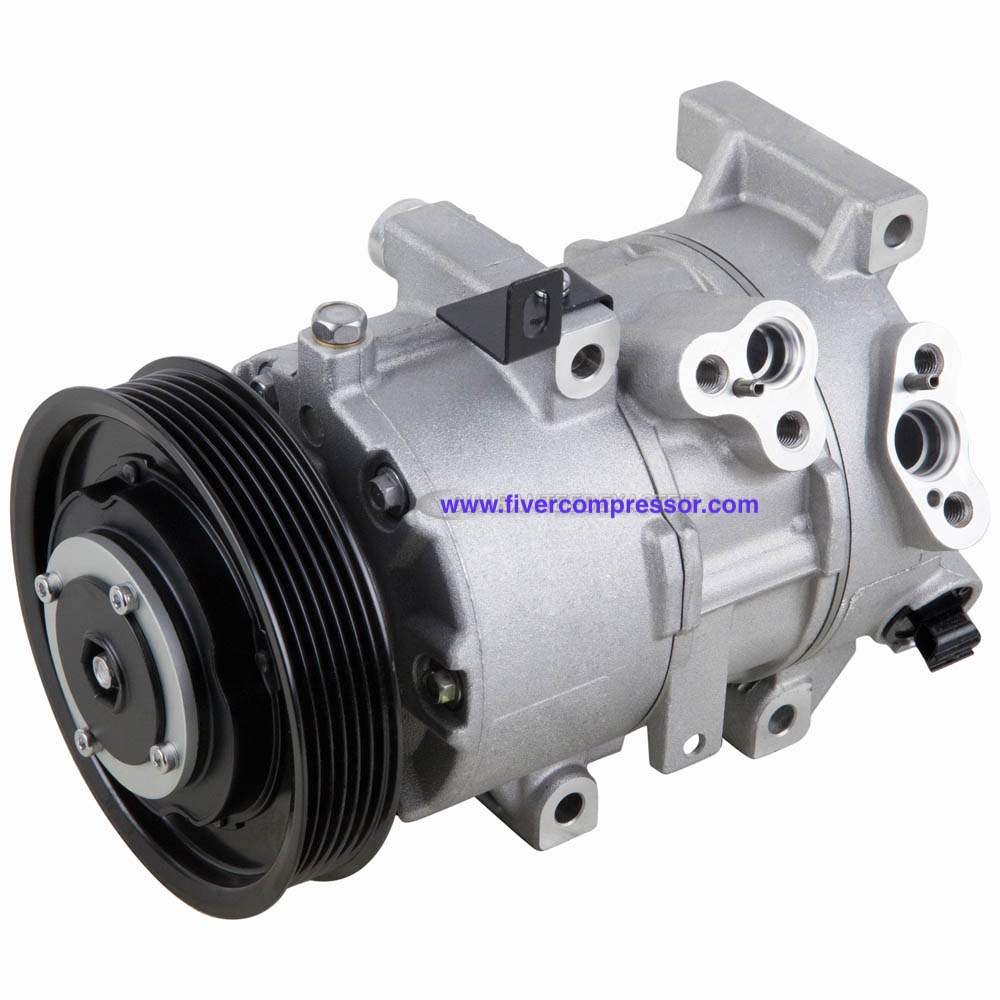

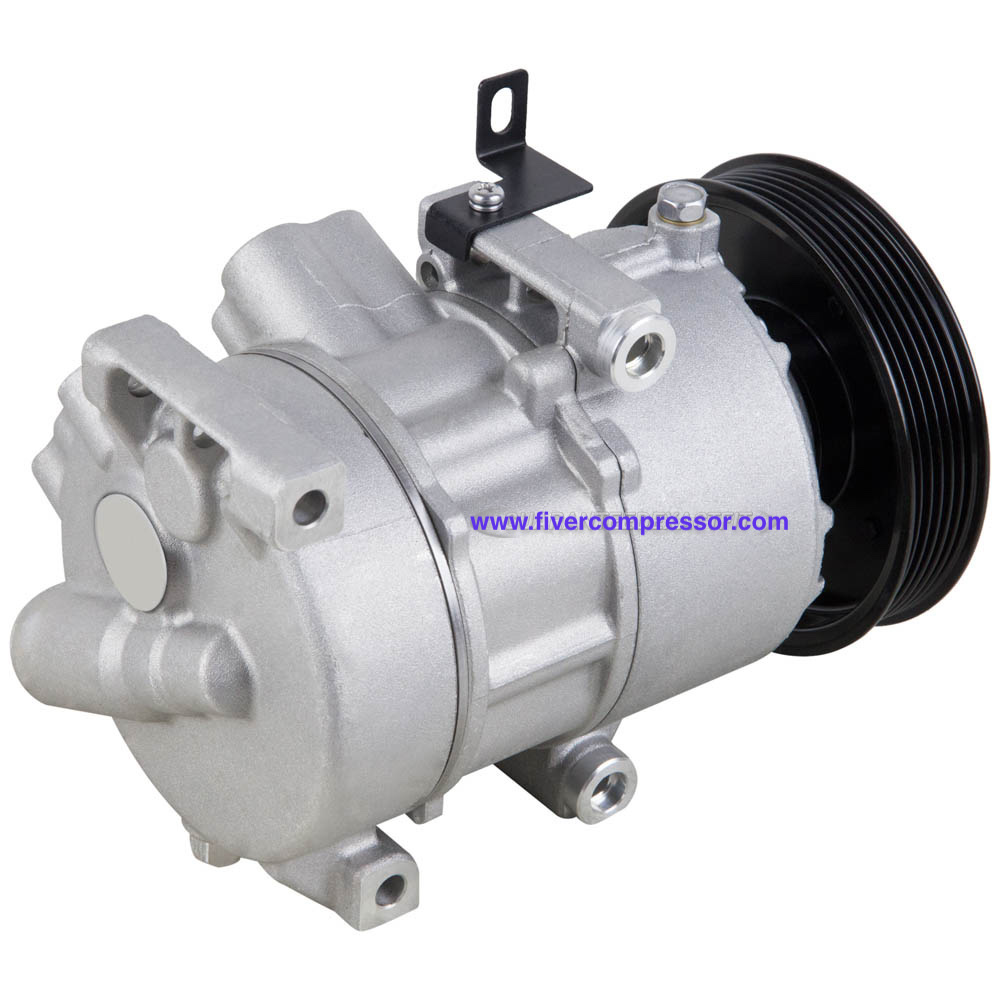

A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
AC Compressor for Hyundai Tucson; Hyundai Cooler Compressor; Auto Climate Control
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

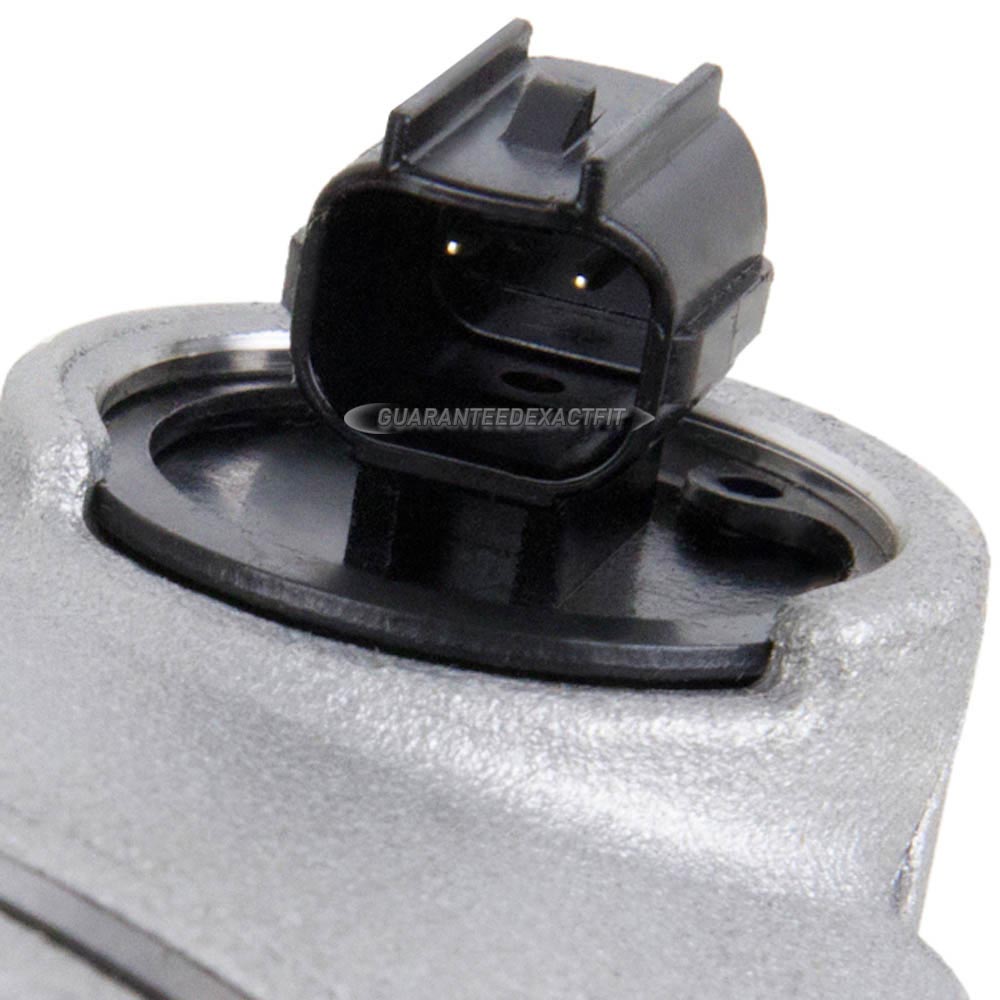

Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
DVE16 6PK Compressor Cooler 97701D3300 for Hyundai Tucson 1.6L 2016-2017

| Specifications | |
|---|---|
| Compressor Mount | tangent |
| Compressor Style | DVE16 |
| Control Valve (Y/ N) | Y |
| Discharge Port (MM) | 12 |
| Gauge Line (MM) | 85 |
| Grooves | 6 |
| Pulley Diameter (MM) | 125 |
| Suction Port (MM) | 18 |
| Voltage | 12 |
2017 Hyundai Tucson 1.6L Engine
2016 Hyundai Tucson 1.6L Engine
OE number:97701D3300, TSR5727
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
