A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
Automotive A/C Compressor; Auto A/C compressor supplier; Auto A/C Compressor for Hyundai Tucson; Kia Sportage AC Compressor
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

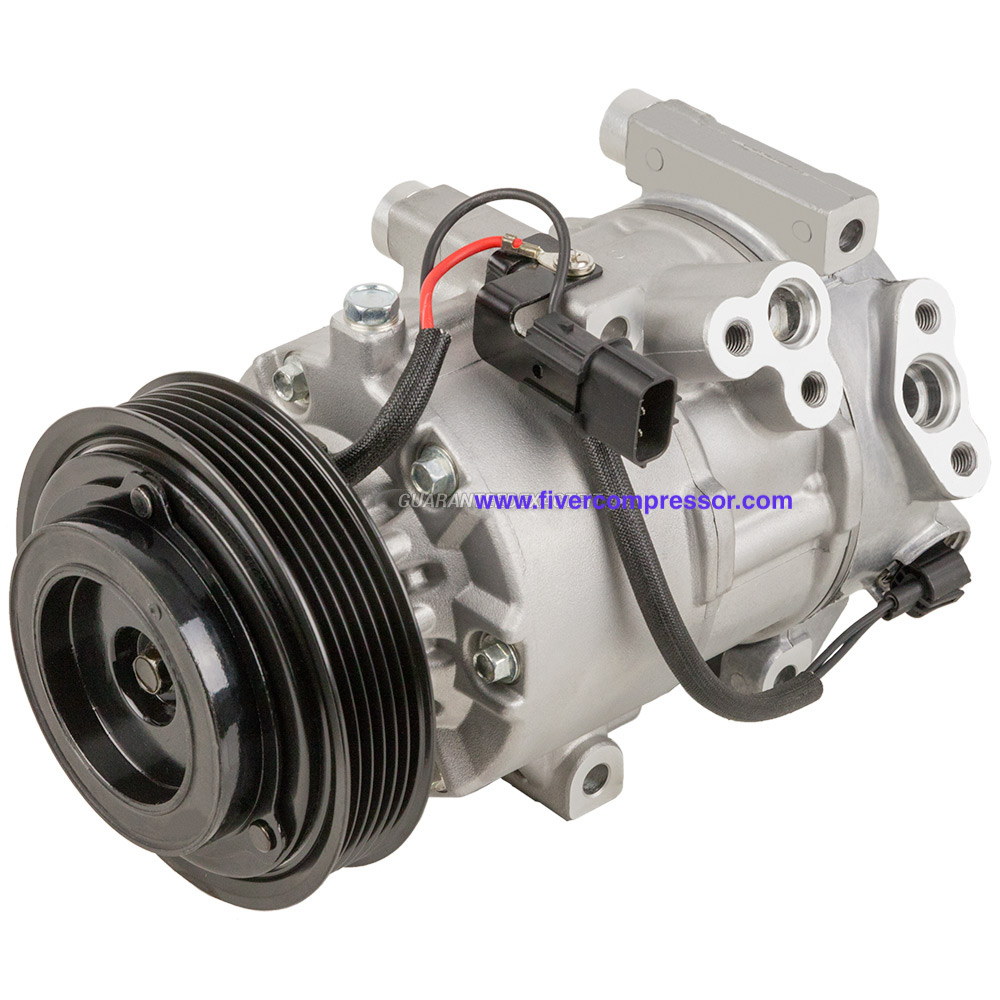

DVE16-6PK-Auto A/C Compressor 977012S500, 977012S502 for Hyundai Tucson 2010-2015 and for Kia Sportage 2011-2017

| Specifications | |
|---|---|
| Clocking | 12 |
| Compressor Mount | tangent |
| Compressor Type | DVE16 |
| Control Valve (Y/ N) | Yes |
| Discharge Port (MM) | 17 |
| Gauge Line (MM) | 86 |
| Grooves | 6 |
| Pulley Diameter (MM) | 120 |
| Suction Port (MM) | 19 |
| Voltage | 12V/PWM |
2014 Hyundai Tucson 2.4L Engine
2015 Hyundai Tucson 2.4L Engine
2010 Hyundai Tucson All Models
2011 Hyundai Tucson All Models
2012 Hyundai Tucson All Models
2013 Hyundai Tucson All Models
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
