A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
Automotive A/C Compressor Manufacturer; Auto A/C compressor supplier; Hyundai Genesis Coupe 3.8L AC Compressor
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

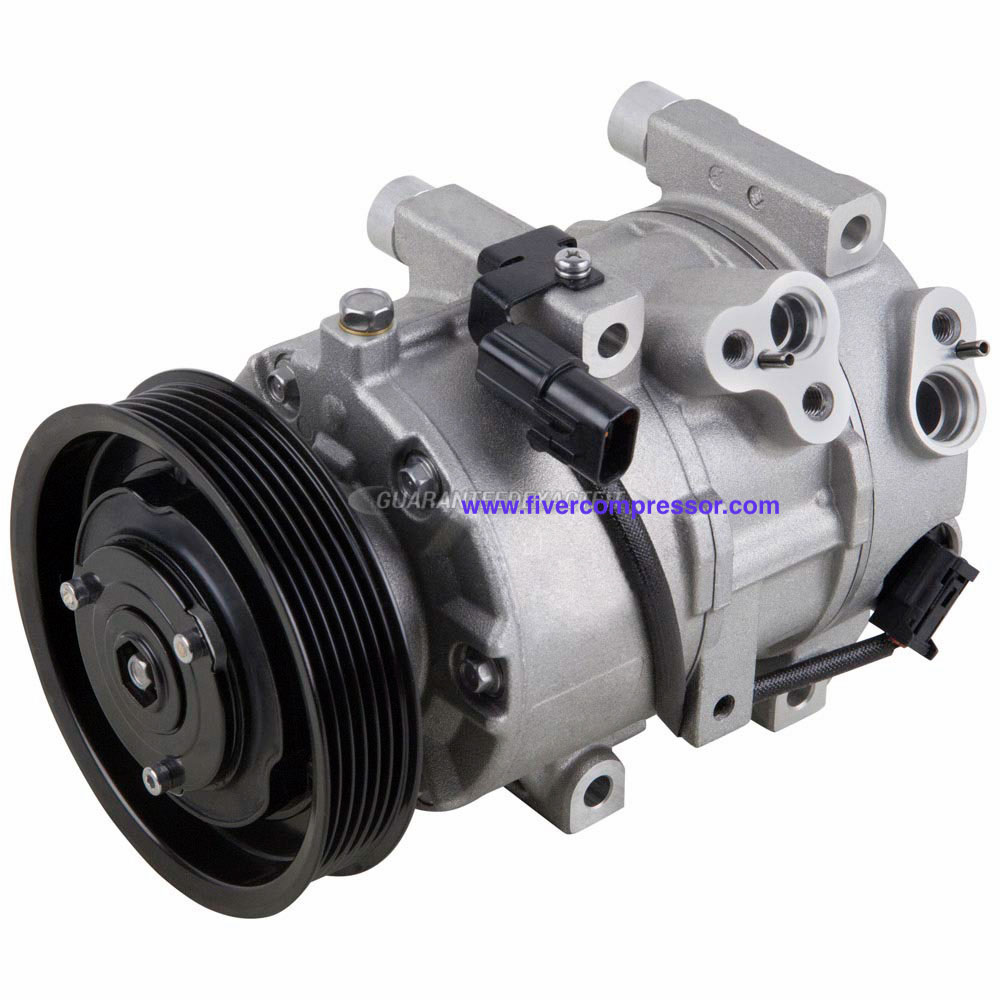

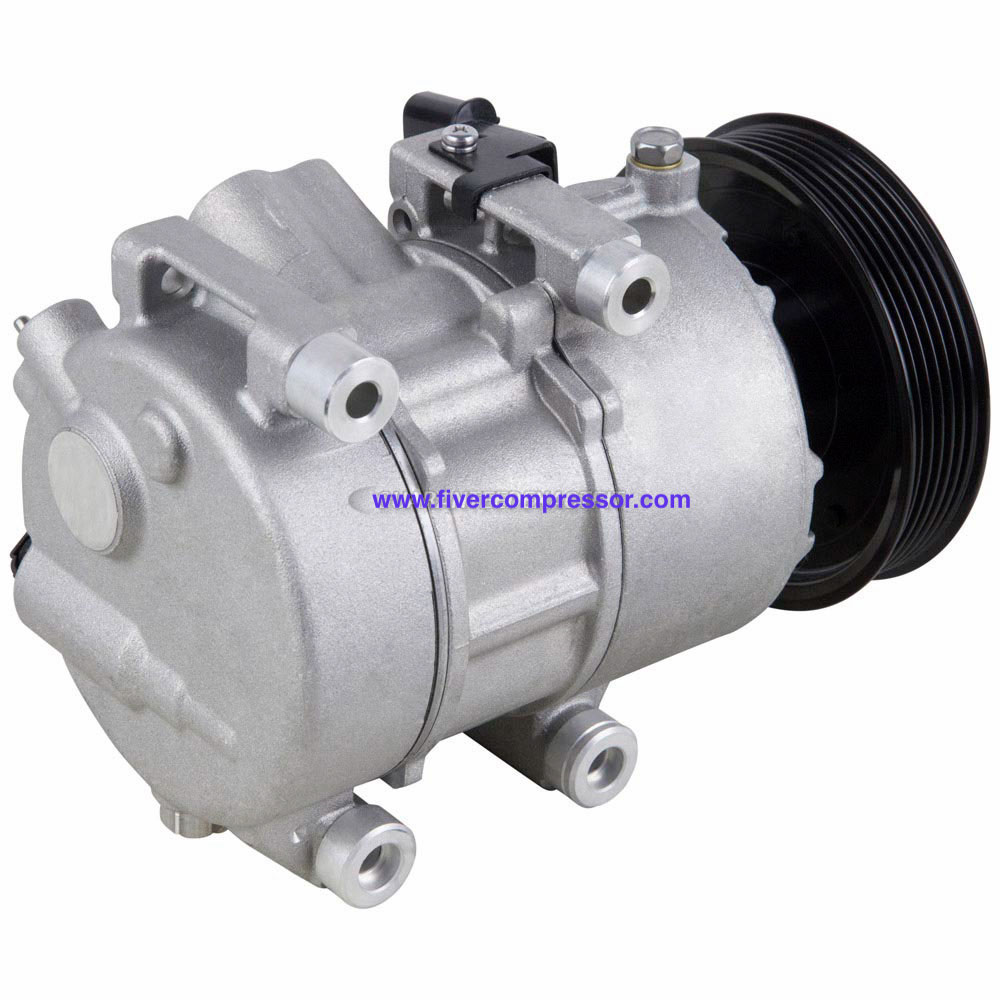

DVE16 - 6 POLY CLUTCH Automotive A/C Compressor 97701-2M600 for Hyundai GENESIS COUPE 3.8L 2013-2016

| Specifications | |
|---|---|
| [A/C Compressor] - Clutch Included | Included |
| [A/C Compressor] - Coil Clock Position | 1 Wire Lead |
| [A/C Compressor] - Coil Voltage | 12 2H |
| [A/C Compressor] - Compatible Refrigerant Oil Type | PAG 46 |
| [A/C Compressor] - Compressor Type | HCC-DVE16 |
| [A/C Compressor] - ECV Harness Connector | Compressor SE30F, Vehicle SE22M |
| [A/C Compressor] - Mounting Type | Tangent Mount |
| [A/C Compressor] - Oil Filled | Yes |
| [A/C Compressor] - Pulley Belt Type | Serpentine |
| [A/C Compressor] - Pulley Groove Quantity | 6 |
| [A/C Compressor] - Refrigerant Type | R134a |
| [A/C Compressor] - Terminal Type | Pin |
| [A/C Compressor] - Type | HALLA |
| [A/C Expansion Valve] - Liquid Inlet Size IN | 0.35 IN |
| [A/C Expansion Valve] - Liquid Out Size IN | 0.650 in |
| [A/C Expansion Valve] - Material | Aluminum |
| [A/C Expansion Valve] - Style | w/o Solenoid |
| [A/C Expansion Valve] - Suc In Size IN | 0.650 in |
| [A/C Expansion Valve] - Suc Out Size IN | 0.65 IN |
| [A/C Expansion Valve] - Super Heat | -8.000 |
| [A/C Expansion Valve] - Switch Included? | Not Included |
| [A/C Expansion Valve] - Tonnage | 1.5 |
VEHICLE FITMENT
2013 Hyundai Genesis Coupe 3.8L Engine
2014 Hyundai Genesis Coupe 3.8L Engine
2015 Hyundai Genesis Coupe 3.8L Engine
Alternate/OEM Part Number(s): 977012M600, TSR5919
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
