FIVER AUTOPARTS CO.,LTD

Hyundai A/C compressor

Type VS16E Compressor Cool VS16E 977013R000 F500-EB9AA08 for Hyundai Sonata and Kia Optima 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

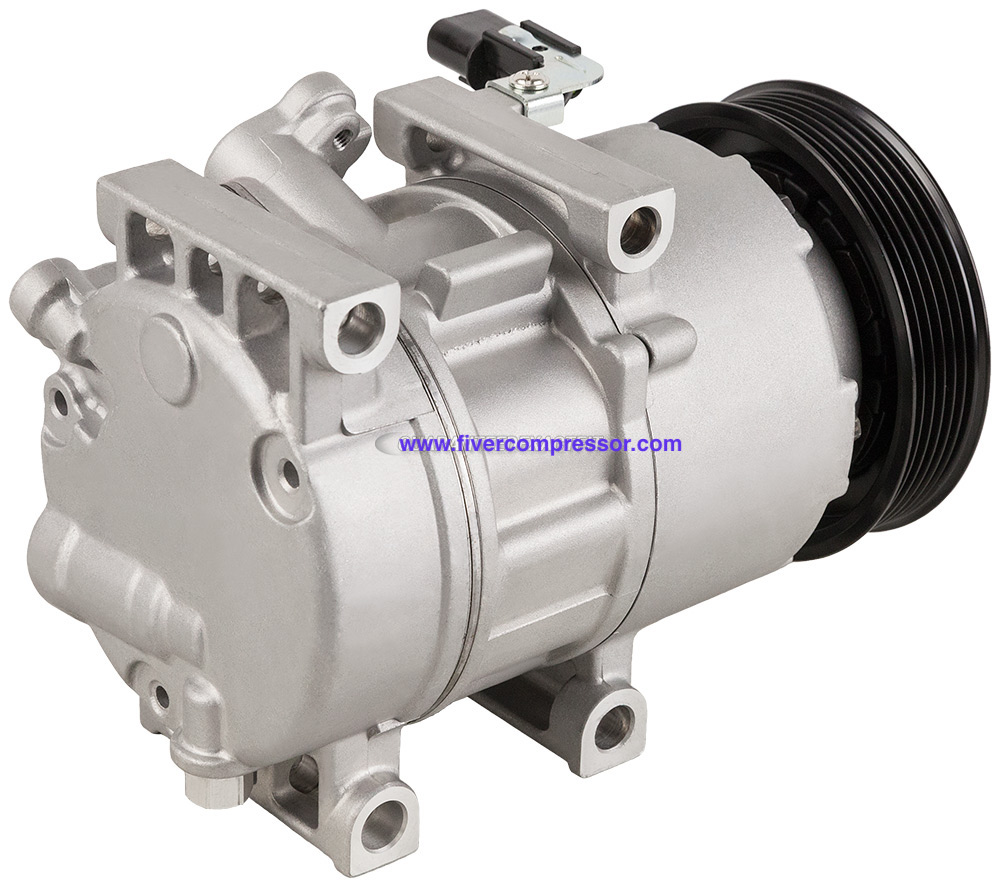

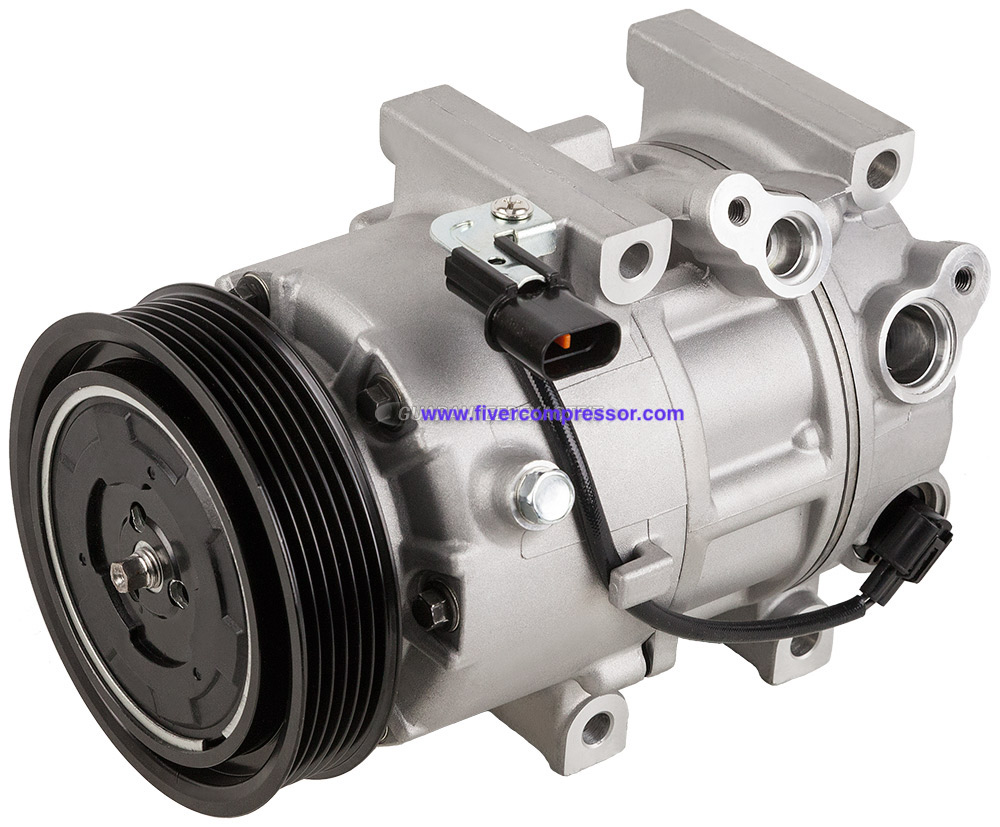

Hyundai VS16E A/C compressor

Compressor Cool VS16E 977013R000 F500-EB9AA08 for Hyundai Sonata and Kia Optima

OE / Part number
977013R000, F500-EB9AA08, 977013R000RU

we fivercompressor.com is a manufacturer of auto ac compressors, all our products are made following the original parts. excellent quality and exact fit. wide coverage.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS16E
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

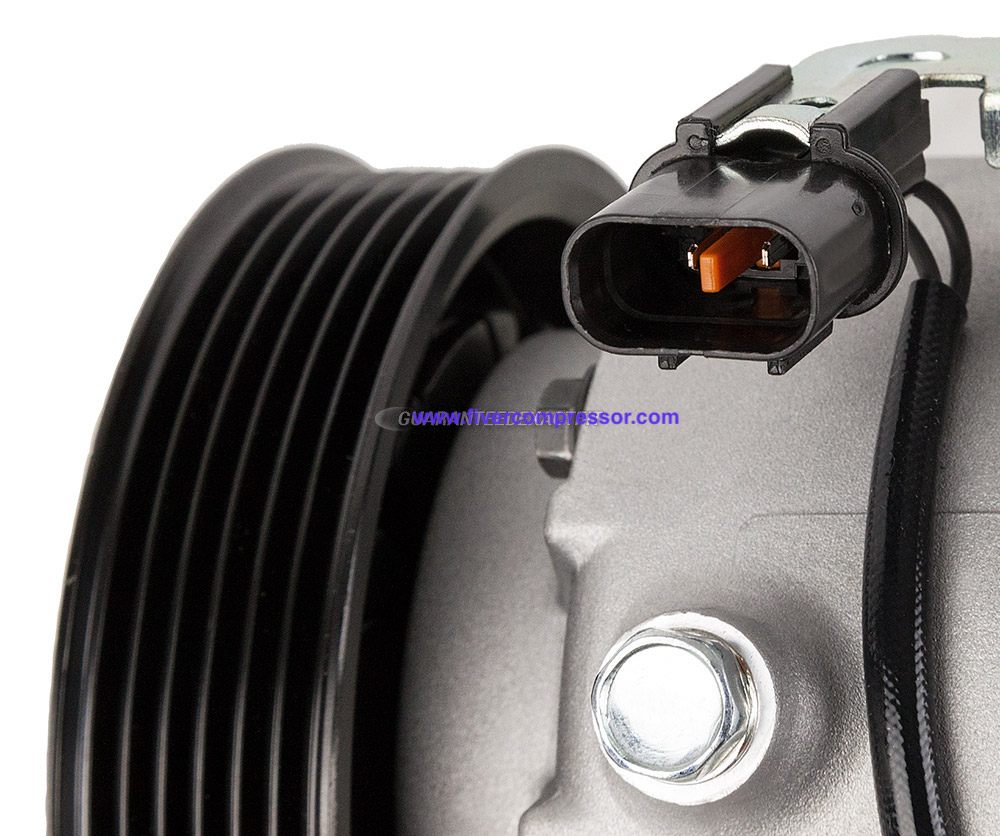

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS16E
Pulley Grooves6PK
Coil Voltage12V
OE / Part number977013R000, F500-EB9AA08, 977013R000RU

§ 04

Product details

Compressor Cool VS16E 977013R000 F500-EB9AA08 for Hyundai Sonata and Kia Optima

 Specifications
Compressor StyleVS16E
Control Valve (Y/ N)Y
Discharge Port (MM)17
Gauge Line (MM)92
Grooves6
Pulley Diameter (MM)114
Suction Port Diameter (MM)23
Vehicle Fitment

2012 Hyundai Sonata 2.0L Engine
2013 Hyundai Sonata 2.0L Engine
2011 Hyundai Sonata 2.0L Engine - To 11/15/2011

2012 Hyundai Sonata 2.4L Engine - Excl. Hybrid

2013 Hyundai Sonata 2.4L Engine - Excl. Hybrid

2011 Hyundai Sonata 2.4L Engine - Excl. Hybrid - To 11/15/2011

2014 Hyundai Sonata GLS

2014 Hyundai Sonata Limited - 2.4L Eng.

2014 Hyundai Sonata SE

2011 Kia Optima Non Hybrid Models

Alternate/OEM Part Number(s): 977013R000, 977013R000RU, F500-EB9AA08

§ 05

Similar compressors

No.CompressorClutchPulley
