A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
PV6 · 12V

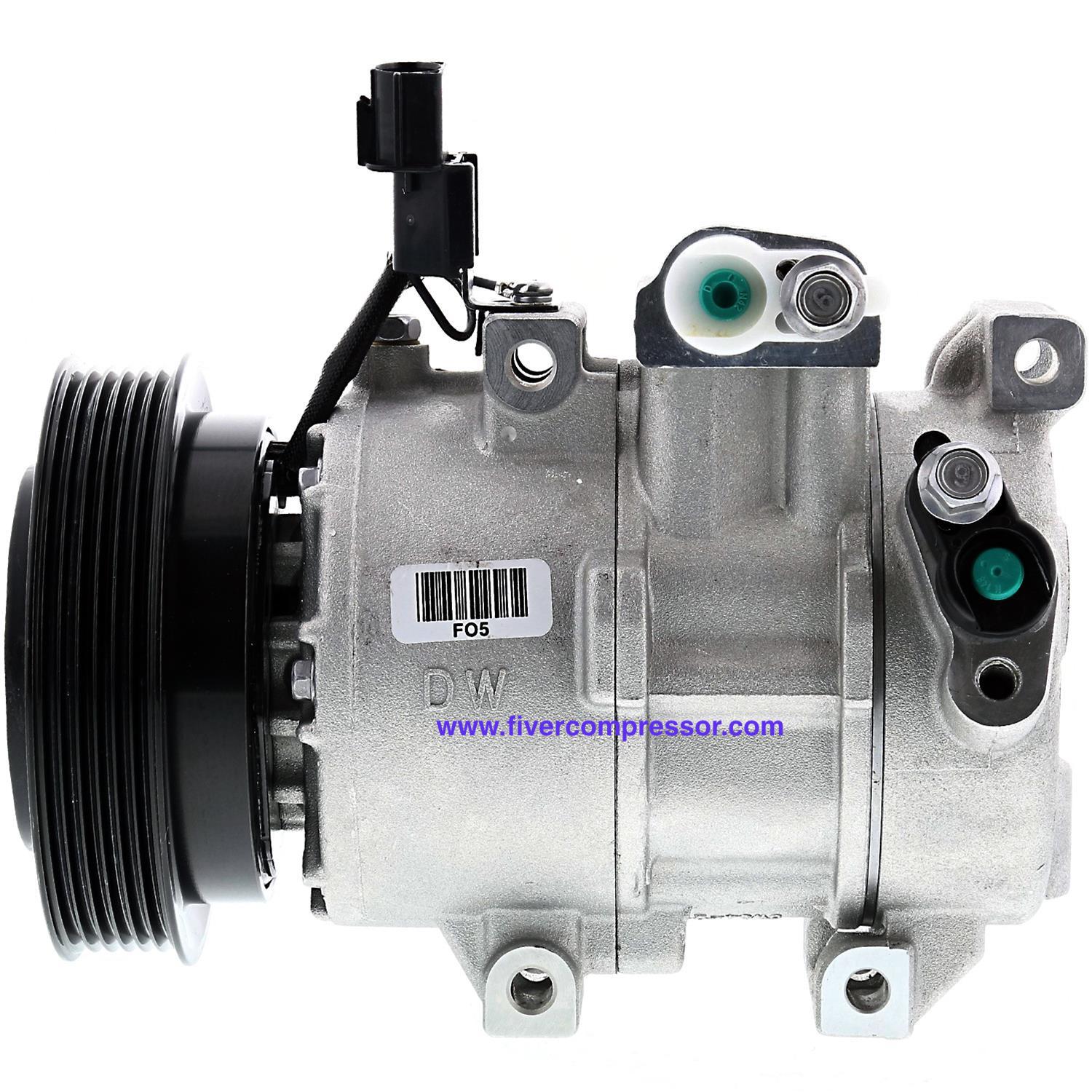

Compressor Assembly 97701-2V000 977011J101, 977011R000 DV13 6PK Auto A/C Compressor for Hyundai Veloster 2012-2017 — aftermarket A/C compressor OE 97701-2V000 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
Compressor Assembly 97701-2V000 977011J101, 977011R000 DV13 6PK Auto A/C Compressor for Hyundai Veloster 2012-2017

| UAC CO11360C Specifications | |
|---|---|
| Compressor Fitting | Pad |
| Compressor Mount | tangent |
| Compressor Mount | Direct |
| Compressor Style | DV13 |
| Grooves | 6 |
Suction Port Diameter (MM) Pulley Diameter | 16 125MM |
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
| 2017 | Hyundai | Veloster | Base, Turbo, Turbo R-Spec, Value Edition | 1.6L L4 - Gas |
| 2016 | Hyundai | Veloster | Base, Rally Edition, Turbo, Turbo R-Spec | 1.6L L4 - Gas |
| 2015 | Hyundai | Veloster | Base, RE:FLEX, Turbo, Turbo R-Spec | 1.6L L4 - Gas |
| 2014 | Hyundai | Veloster | Base, RE:FLEX, Turbo, Turbo R-Spec | 1.6L L4 - Gas |
| 2013 | Hyundai | Veloster | Base, Turbo | 1.6L L4 - Gas |
| 2012 | Hyundai | Veloster | Base | 1.6L L4 - Gas |
| Alternate/OEM Part Number(s): 977011J101, 977011R000, 977012V000 |
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
