A/C Compressor 97610-H1003/97701-4A370 for Hyundai Satelite
OE 97610-H1003, 97701-4A370
FIVER AUTOPARTS CO.,LTD
Hyundai A/C compressor
6PK · 12V
auto a/c compressor for Hyundai Accent; Kia Rio Air Conditioning Compressor; Auto AC Compressor Replacement; Compressor Assy with Pulley
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

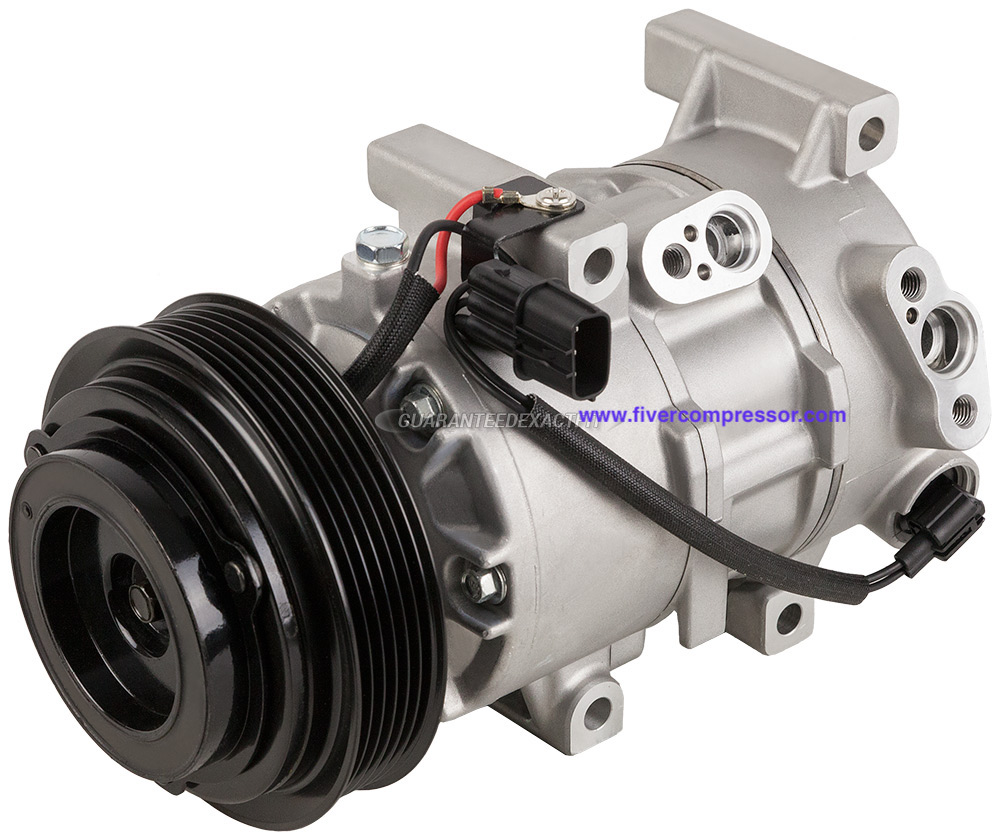

Auto A/C Compressor 977011R100, 977011W600 for Hyundai Accent 2012-2017 and for Kia Rio 2012-2017

| Specifications | |
|---|---|
| Compressor Mount | Tangent |
| Compressor Style | DVE12 |
| Control Valve (Y/ N) | Yes |
| Diode (Y/ N) | N |
| Gauge Line (MM) | 85 |
| Grooves | 6 |
| Pulley Diameter (MM) | 125 |
| Voltage | 12 |
2016 Hyundai Accent All Models
2017 Hyundai Accent All Models
2016 Hyundai Accent SE - 1.6L Eng. - w/ Automatic Temperature Control
2017 Hyundai Accent SE - 1.6L Eng. - w/ Automatic Temperature Control
2016 Hyundai Accent Sport - 1.6L Eng. - w/ Automatic Temperature Control
2017 Hyundai Accent Sport - 1.6L Eng. - w/ Automatic Temperature Control
2017 Hyundai Accent Value Edition - 1.6L Eng. - w/ Automatic Temperature Control
2012 Hyundai Accent with Automatic Temperature Control
2013 Hyundai Accent with Automatic Temperature Control
2014 Hyundai Accent with Automatic Temperature Control
2015 Hyundai Accent with Automatic Temperature Control
2012 Kia Rio All Models
2013 Kia Rio All Models
2014 Kia Rio All Models
2015 Kia Rio All Models
2016 Kia Rio All Models
2017 Kia Rio All Models
Alternated OE: 977011R100, 977011R100DR, 977011W600
§ 05
OE 97610-H1003, 97701-4A370
OE 97701A5501, 97701A5502, 97701A5502RU
OE 977011U600, 977011U650
