Hyundai A/C compressor

Type VS14M 6PK VS14M Auto A/C Compressor 97701F2100 TSR5894 for Hyundai ELANTRA 2017-2020 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

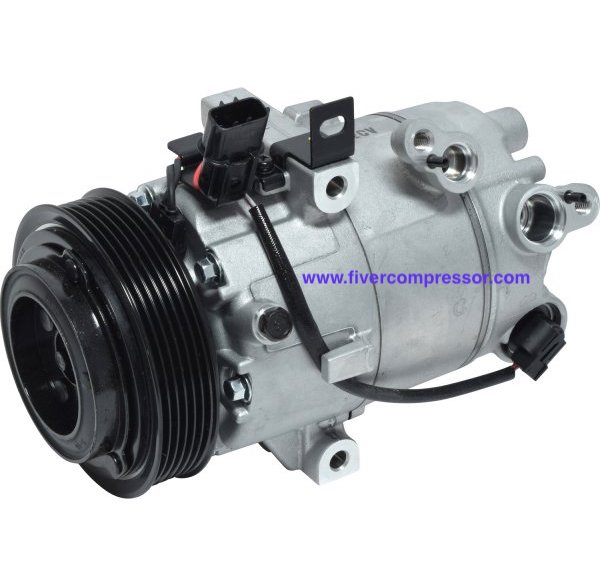

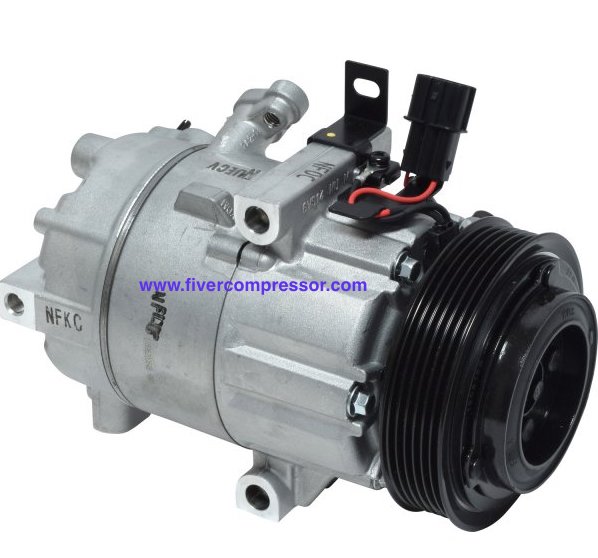

Hyundai VS14M A/C compressor

6PK VS14M Auto A/C Compressor 97701F2100 TSR5894 for Hyundai ELANTRA 2017-2020

OE / Part number
97701F2100, TSR5894

Compressor is used in the air conditional’s system, the compressor takes the refrigerant gas from the evaporator, compress it, and send it to the strip heater. it is activated from by a belt connected

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS14M
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS14M
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701F2100, TSR5894

§ 04

Product details

6PK VS14M Auto A/C Compressor 97701F2100 TSR5894 for Hyundai ELANTRA 2017-2020

Specifications

Compressor StyleVS14E
Control Valve (Y/ N)Y
Diode (Y/ N)Y
Discharge Port (MM)14
Gauge Line (MM)77
Grooves6
Pulley Diameter (MM)114
RotationCW
Suction Port (MM)20
Voltage12
Vehicle Fitment
HYUNDAIELANTRA2017-2020
HYUNDAIELANTRA GT2017

Alternated OE: 97701F2100 TSR5894
