Hyundai A/C compressor

Type DVE16 6PK DVE16 Auto A/C Compressor for Hyundai 1D27E-05500, 97701-2S600, 97701- 2S601 AC Compressor for Hyundai Tucson 2.0L 2014-2015 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

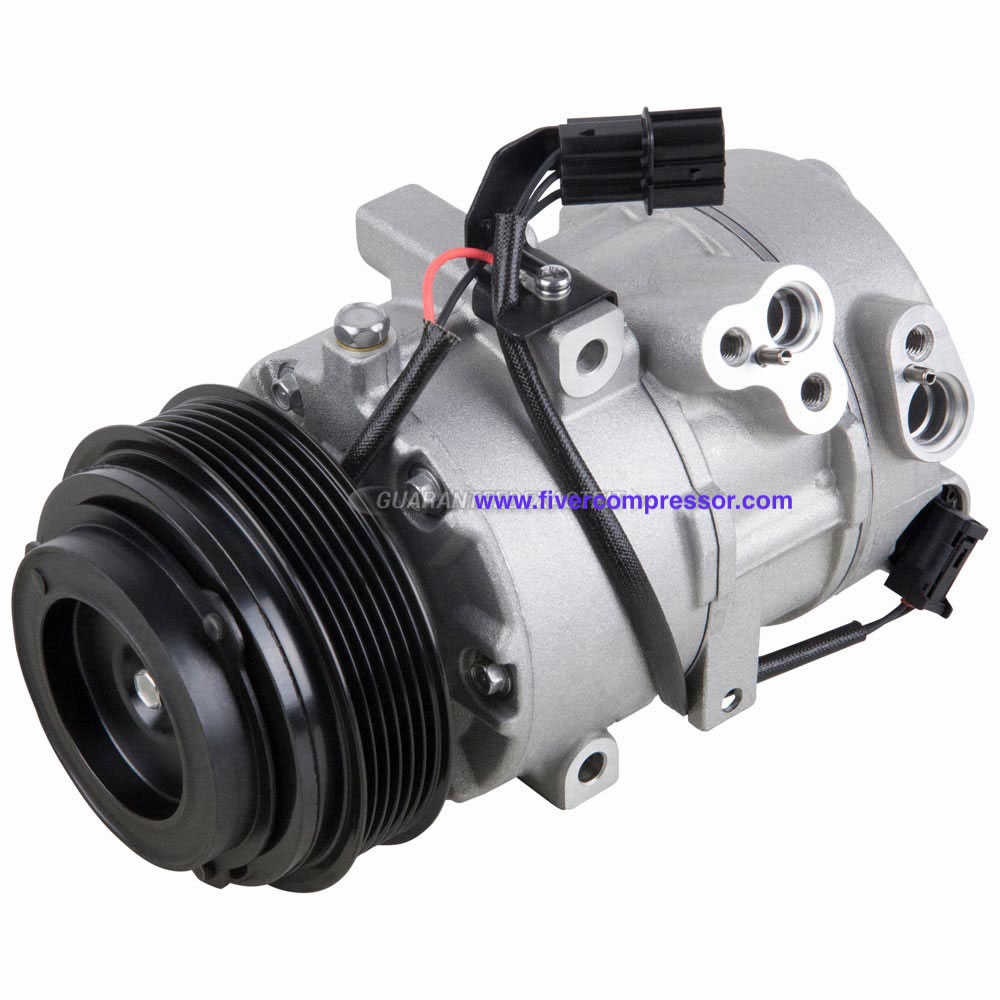

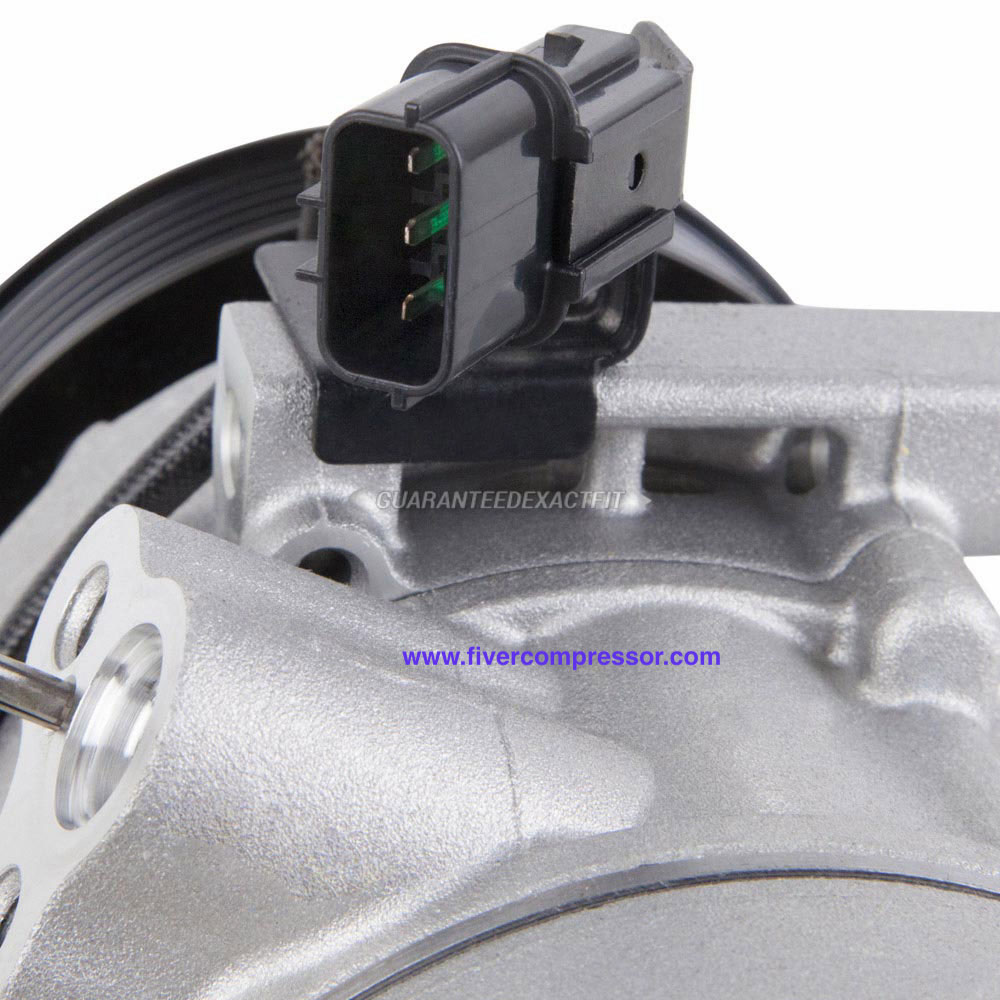

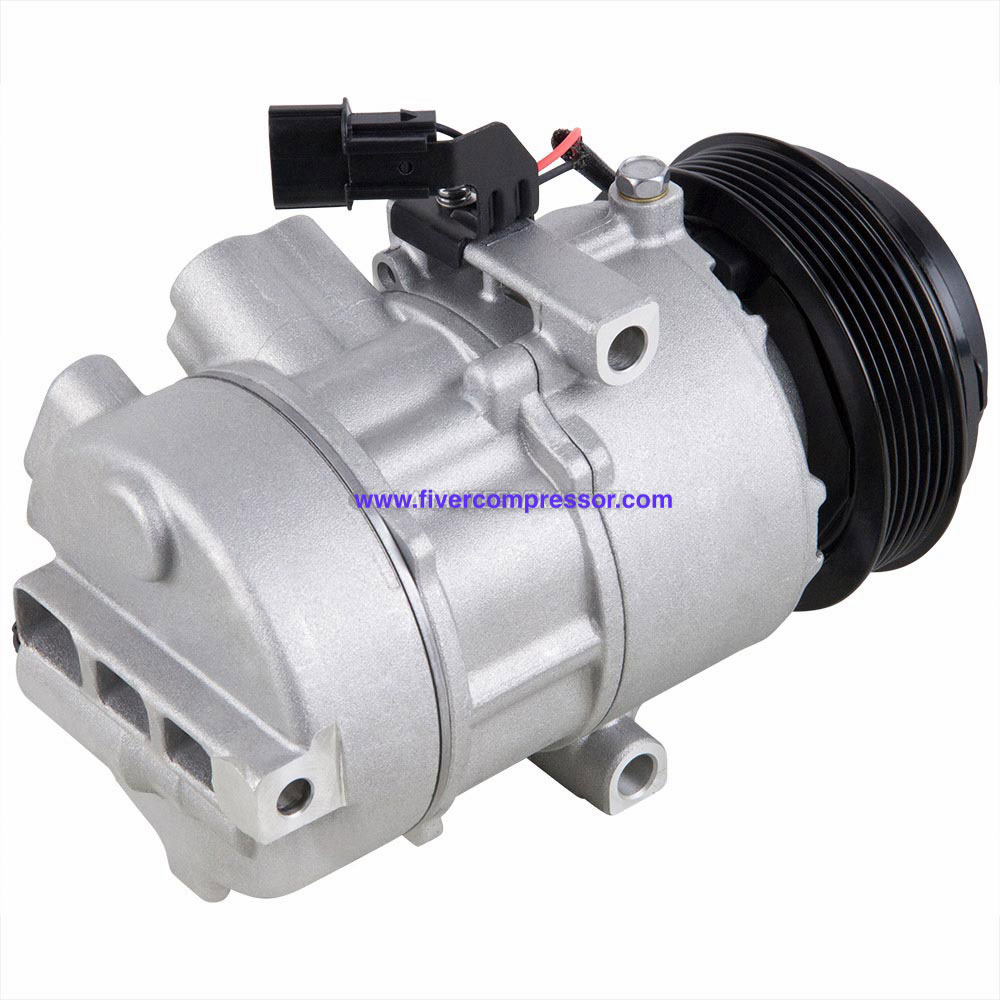

Hyundai DVE16 A/C compressor

6PK DVE16 Auto A/C Compressor for Hyundai 1D27E-05500, 97701-2S600, 97701- 2S601 AC Compressor for Hyundai Tucson 2.0L 2014-2015

OE / Part number
1D27E-05500, 97701-2S600, 2S601, 977012S601, 97701A5501, D27E-05500

6PK DVE16 Auto A/C Compressor for Hyundai 1D27E-05500, 97701-2S600, 97701- 2S601 AC Compressor for Hyundai Tucson 2.0L 2014-2015 — aftermarket A/C compressor OE 1D27E-05500 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDVE16
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDVE16
Pulley Grooves6PK
Coil Voltage12V
OE / Part number1D27E-05500, 97701-2S600, 2S601, 977012S601, 97701A5501, D27E-05500

§ 04

Product details

6PK DVE16 Auto A/C Compressor for Hyundai 1D27E-05500, 97701-2S600, 97701- 2S601 AC Compressor for Hyundai Tucson 2.0L 2014-2015

Specifications
Compressor StyleDVE16
Control Valve (Y/ N)Y
Discharge Port (MM)17
Gauge Line (MM)77
Grooves6
Pulley Diameter (MM)115MM
Suction Port (MM)20
Voltage12V
VEHICLE FITMENT

2015 Hyundai Tucson 2.0L Engine
2014 Hyundai Tucson 2.0L Engine
2014 Hyundai Tucson 2.0L Engine - w/ DVE16 Compressor
2015 Hyundai Tucson 2.0L Engine - w/ DVE16 Compressor

Alternate/OEM Part Number(s): 977012S601, 97701A5501,D27E-05500, 97701-2S600, 97701- 2S601
