Hyundai A/C compressor

Type DVE16 6PK DVE16 Auto AC Compressor 97701-2M500 977012M500 for Hyundai Genesis Coupe 2.0L 2013-2014 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

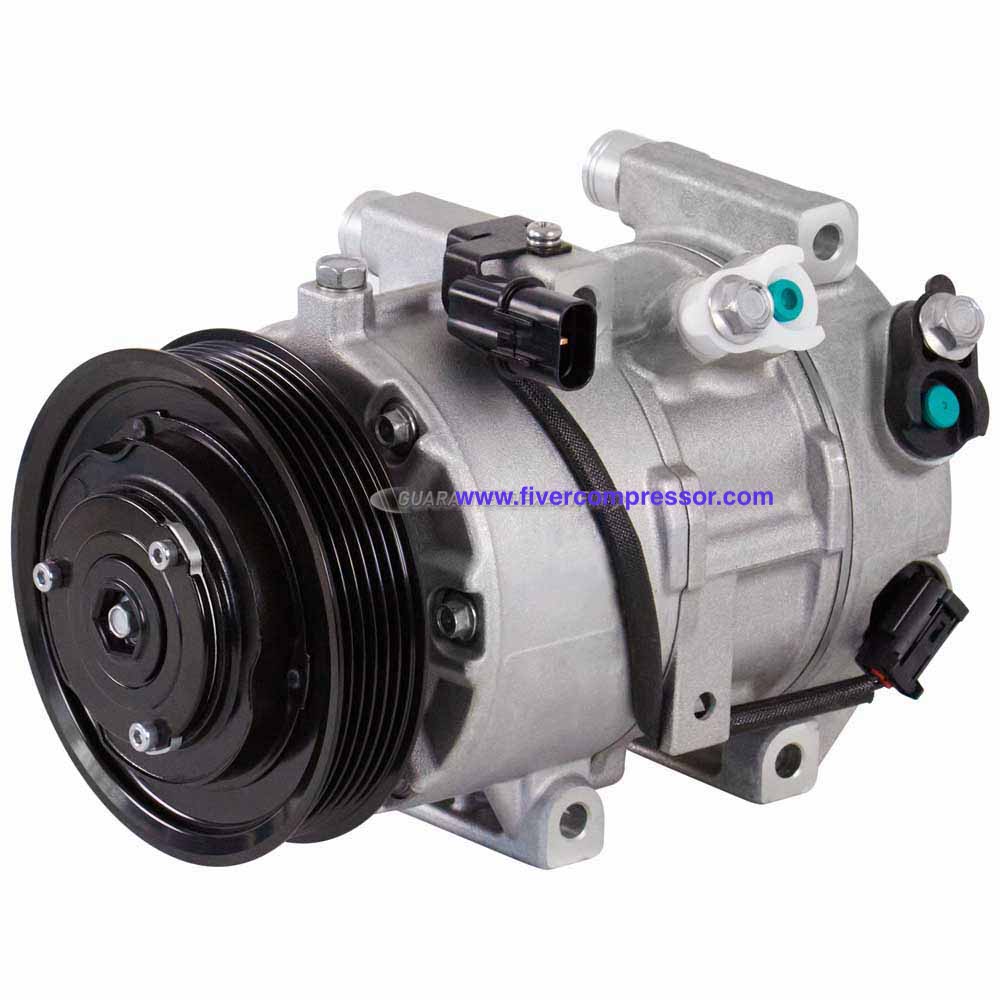

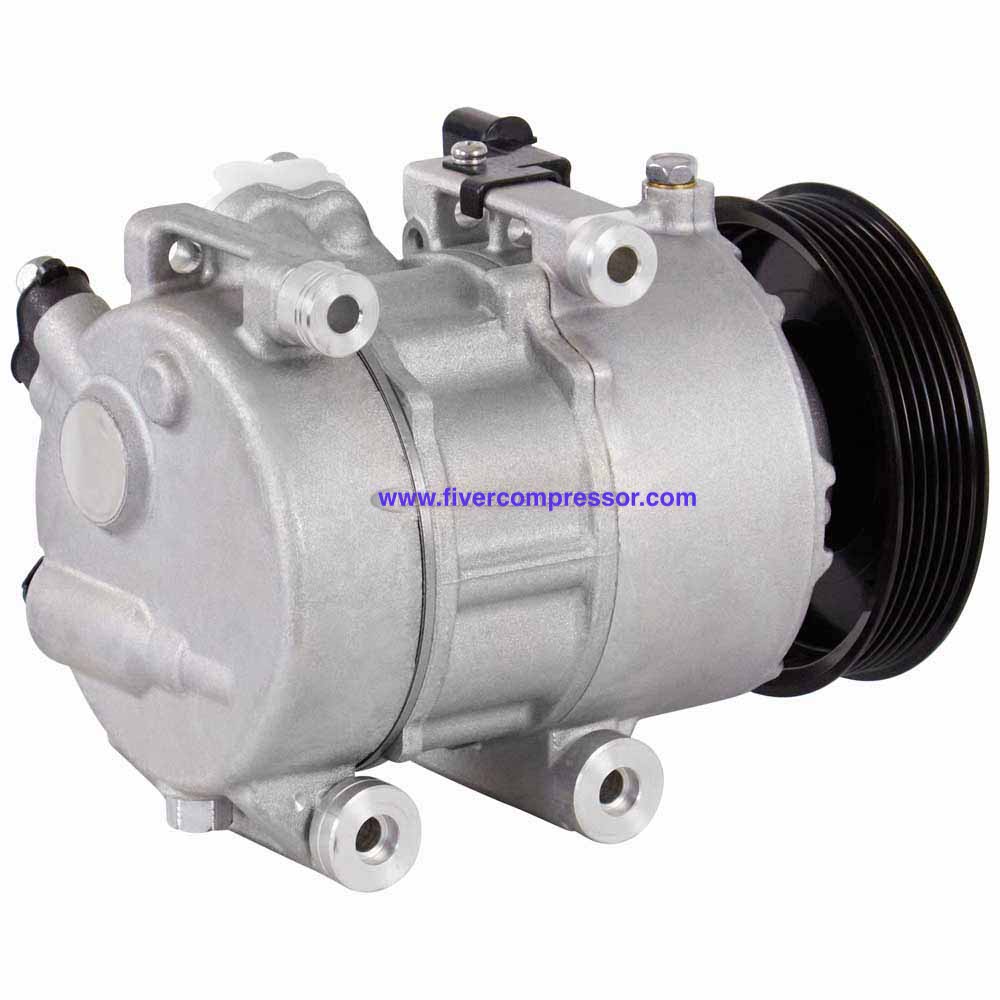

Hyundai DVE16 A/C compressor

6PK DVE16 Auto AC Compressor 97701-2M500 977012M500 for Hyundai Genesis Coupe 2.0L 2013-2014

OE / Part number
97701-2M500, 977012M500

Auto AC Compressor for Hyundai Genesis; Hyundai Genesis Air Conditioning Compressor; A/C Compressor 977012M500

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDVE16
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDVE16
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701-2M500, 977012M500

§ 04

Product details

6PK DVE16 Auto AC Compressor 97701-2M500 977012M500 for Hyundai Genesis Coupe 2.0L 2013-2014




NISSENS 890230 Specifications
Compressor OilPAG 46
Compressor RefrigerantR134a

Specialty

Pulley Diameter MM

Pulley Grooves

PREFILLED PAG OIL

117MM

6


Vehicle Fitment

2013 Hyundai Genesis Coupe 2.0L Engine
2014 Hyundai Genesis Coupe 2.0L Engine


Alternate/OEM Part Number(s): 977012M500,97701-2M500

§ 05

Similar compressors

No.CompressorClutchPulley
