Hyundai A/C compressor

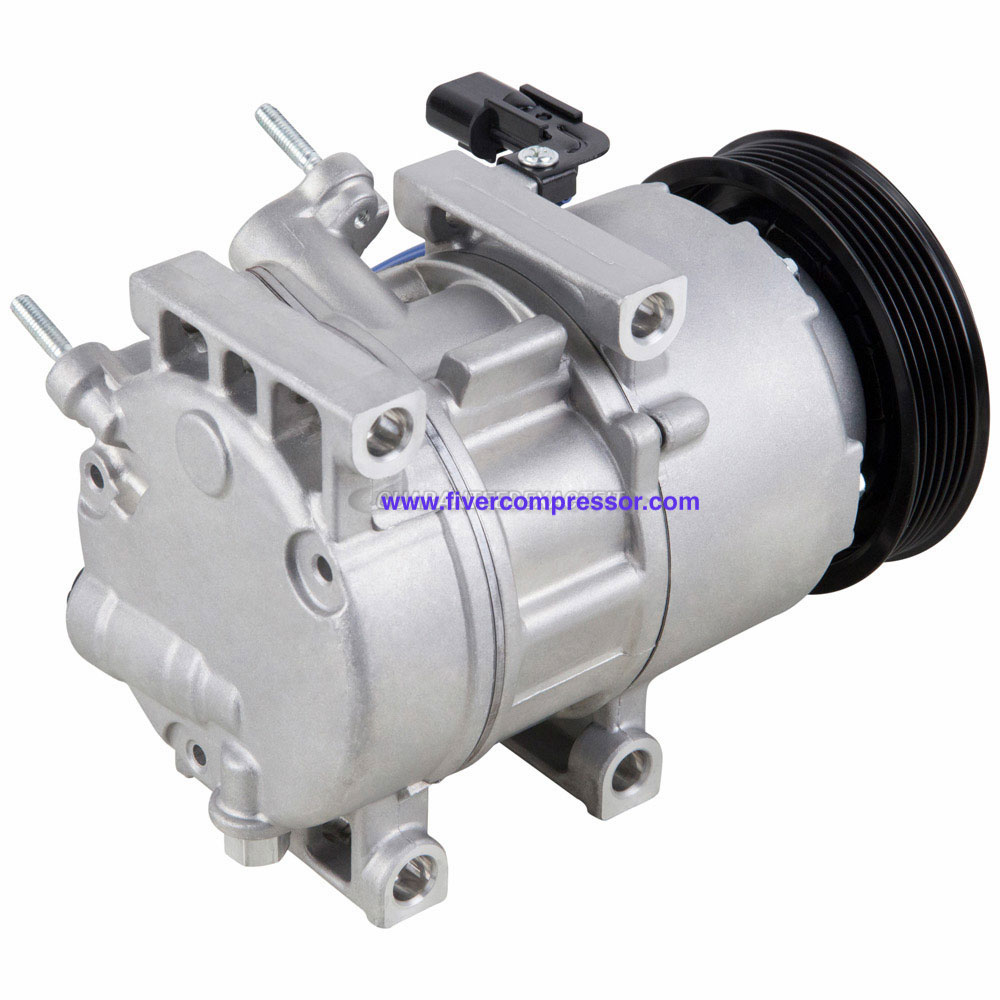

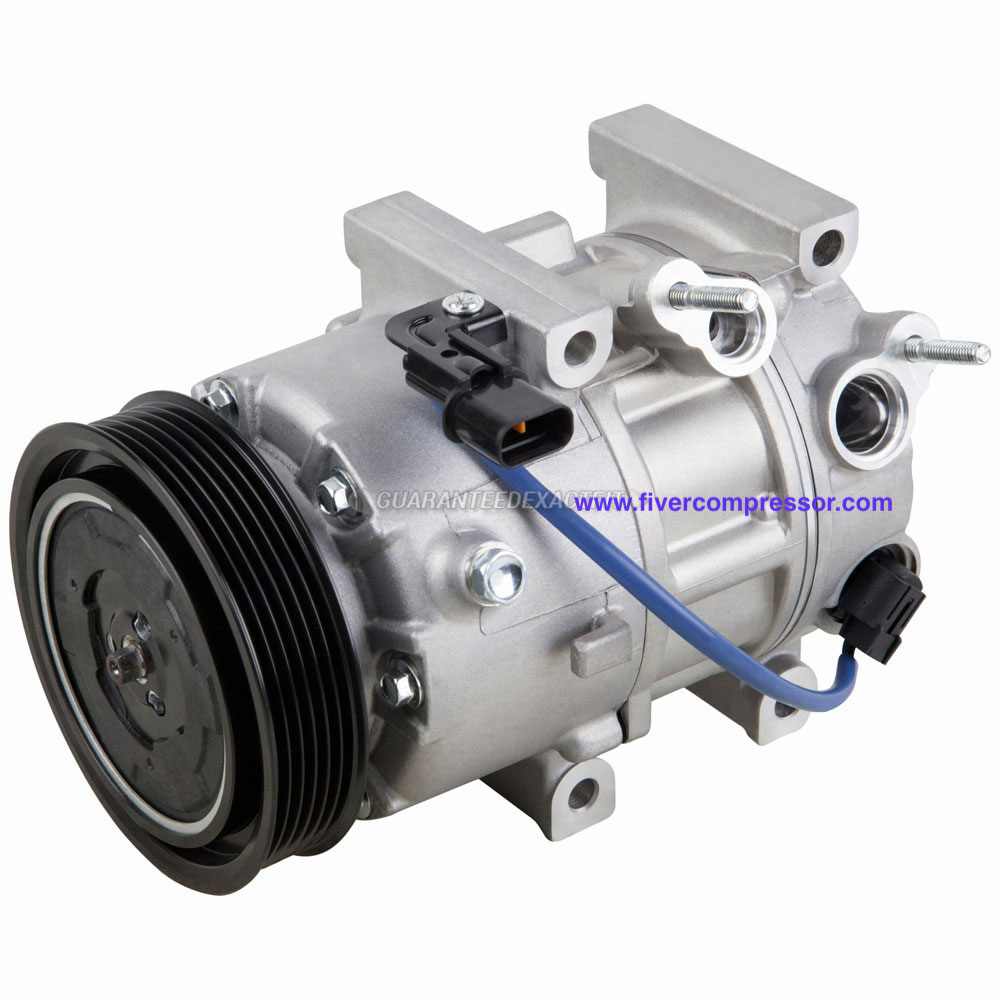

Type VS16E 12V 6PK VS16E Car Air Conditioning Compressor 97701-3V110 977013V110RU for Hyundai Azera and Kia Optima 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Hyundai VS16E A/C compressor

12V 6PK VS16E Car Air Conditioning Compressor 97701-3V110 977013V110RU for Hyundai Azera and Kia Optima

OE / Part number
97701-3V110, 977013V110RU

Auto A/C Compressor; Car AC Compressor for Hyundai Azera; Kia Optima ac compressor; Hyundai Sonata air conditioning compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeVS16E
Pulley Grooves6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeVS16E
Pulley Grooves6PK
Coil Voltage12V
OE / Part number97701-3V110, 977013V110RU

§ 04

Product details

12V 6PK VS16E Car Air Conditioning Compressor 97701-3V110 977013V110RU for Hyundai Azera and Kia Optima 2012-2018

 Specifications
Compressor StyleVS16E
Control Valve (Y/ N)Y
Discharge Port (MM)17
Gauge Line (MM)82
Grooves6
Pulley Diameter (MM)114
RotationCW
Suction Port (MM)23
Vehicle Fitment

2012 Hyundai Azera All Models
2016 Hyundai Azera All Models
2017 Hyundai Azera All Models

2016 Hyundai Azera Base - 3.3L Eng.

2017 Hyundai Azera Base - 3.3L Eng.

2016 Hyundai Azera Limited - 3.3L Eng.

2017 Hyundai Azera Limited - 3.3L Eng.

2011 Hyundai Sonata 2.0L Engine - From 11/16/2011

2011 Hyundai Sonata 2.4L Engine - Excl. Hybrid - From 11/16/2011

2014 Hyundai Sonata Limited - 2.0L Eng.

  • 2016 Kia Cadenza All Models
  • 2012 Kia Optima Excl. Hybrid
  • 2013 Kia Optima Excl. Hybrid
  • 2014 Kia Optima Excl. Hybrid
  • 2015 Kia Optima Excl. Hybrid
  • 2016 Kia Optima Excl. Hybrid
  • 2017 Kia Optima Excl. Hybrid
  • 2018 Kia Optima Excl. Hybrid

Alternated OE: 97701-3V110 977013V110RU
