FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Hyundai A/C compressor

Type 10PA17C 10PA17C Style Compressor Assy 977012J100, 977012M000, 977012M100 for Hyundai Genesis Coupe 2010-2012 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

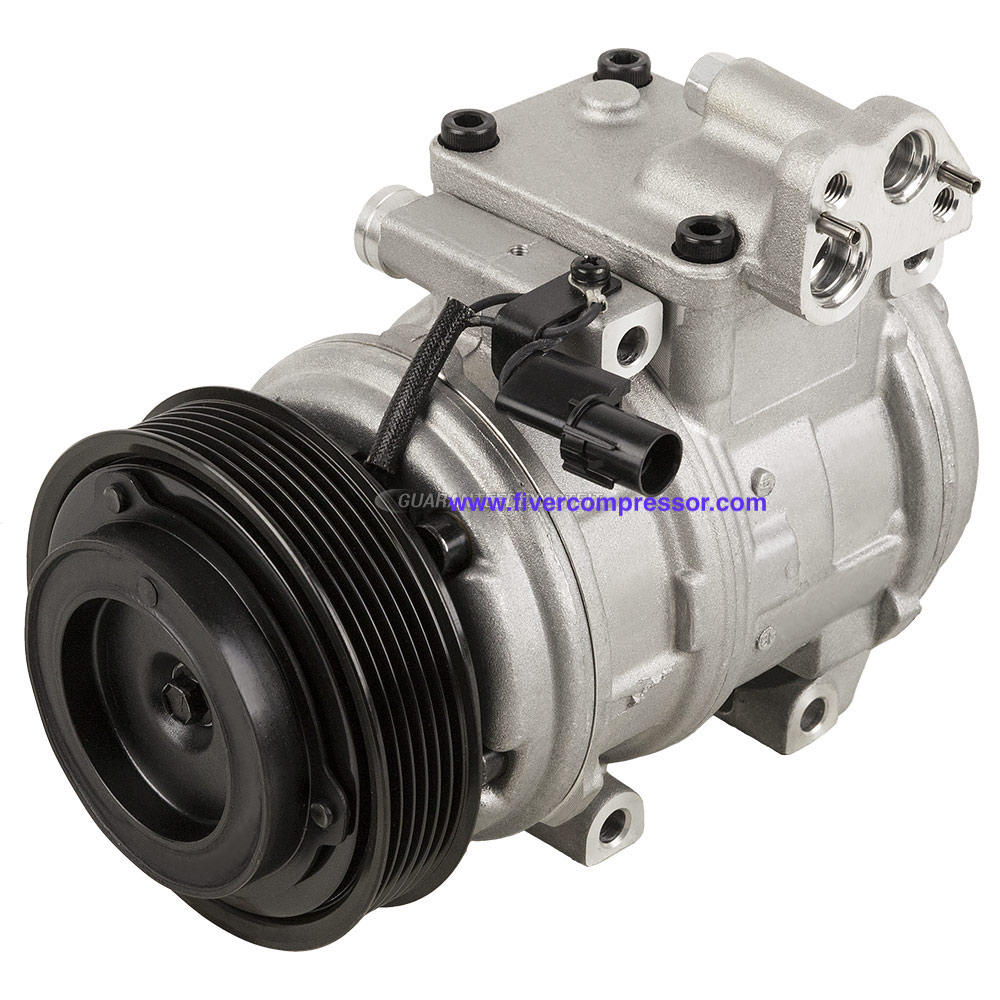

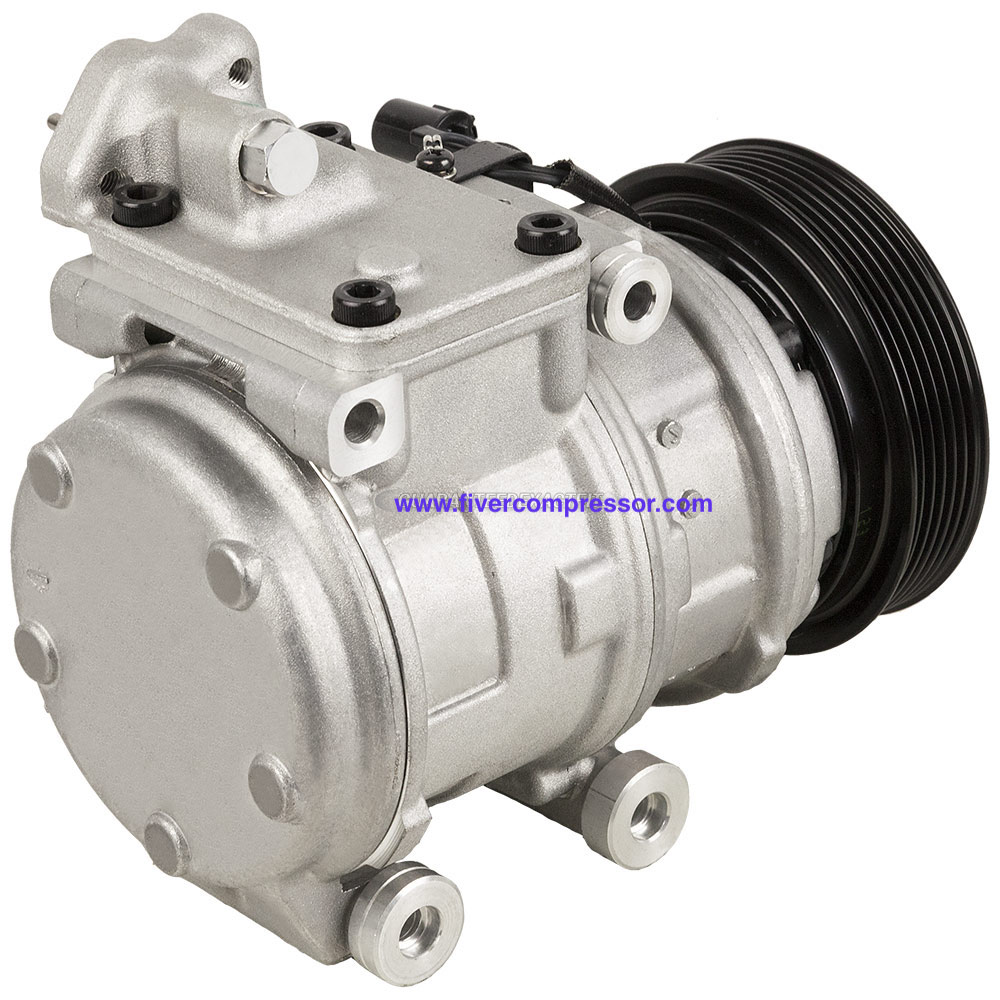

Hyundai 10PA17C A/C compressor

10PA17C Style Compressor Assy 977012J100, 977012M000, 977012M100 for Hyundai Genesis Coupe 2010-2012

OE / Part number
977012J100, 977012M000, 977012M100

10PA17C Style Compressor Assy 977012J100, 977012M000, 977012M100 for Hyundai Genesis Coupe 2010-2012 — aftermarket A/C compressor OE 977012J100 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA17C
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA17C
Pulley Groove6PK
Coil Voltage12V
OE / Part number977012J100, 977012M000, 977012M100

§ 04

Product details

10PA17C Style Compressor Assy 977012J100, 977012M000, 977012M100 for Hyundai Genesis Coupe 2010-2012

DENSO 4716031 Specifications
Clutch Maximum Diameter119.0 MM
Compressor Mount Hole Quantity6
Compressor Type10PA17C
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypeISUPAG 205A
Pulley Belt TypeSerpentine
Refrigerant TypeR134a
Vehicle Fitment

2010 Hyundai Genesis Coupe 2.0T Engine
2011 Hyundai Genesis Coupe 2.0T Engine
2012 Hyundai Genesis Coupe 2.0T Engine

2012 Hyundai Genesis Coupe 3.8T Engine

Alternate/OEM Part Number(s): 977012J100, 977012M000, 977012M100
