Honda A/C compressor

Type TRSE09 TRSE09 7PV A/C Compressor 38800-5LA-A01,388005LAA01,388005LA A010M2 for Honda CR-V 2.4L EX/LX 2015-2016 for Acura ILX 2.4L 2016-2020 7PV · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

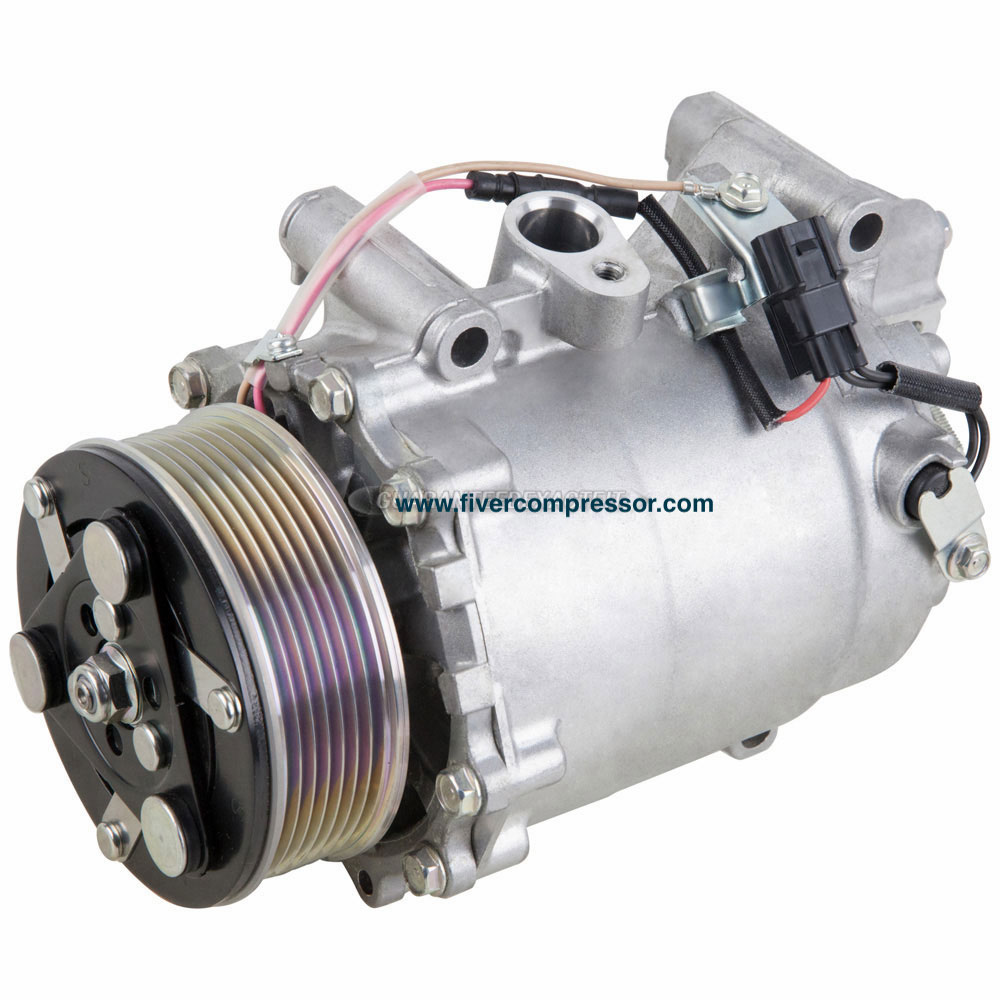

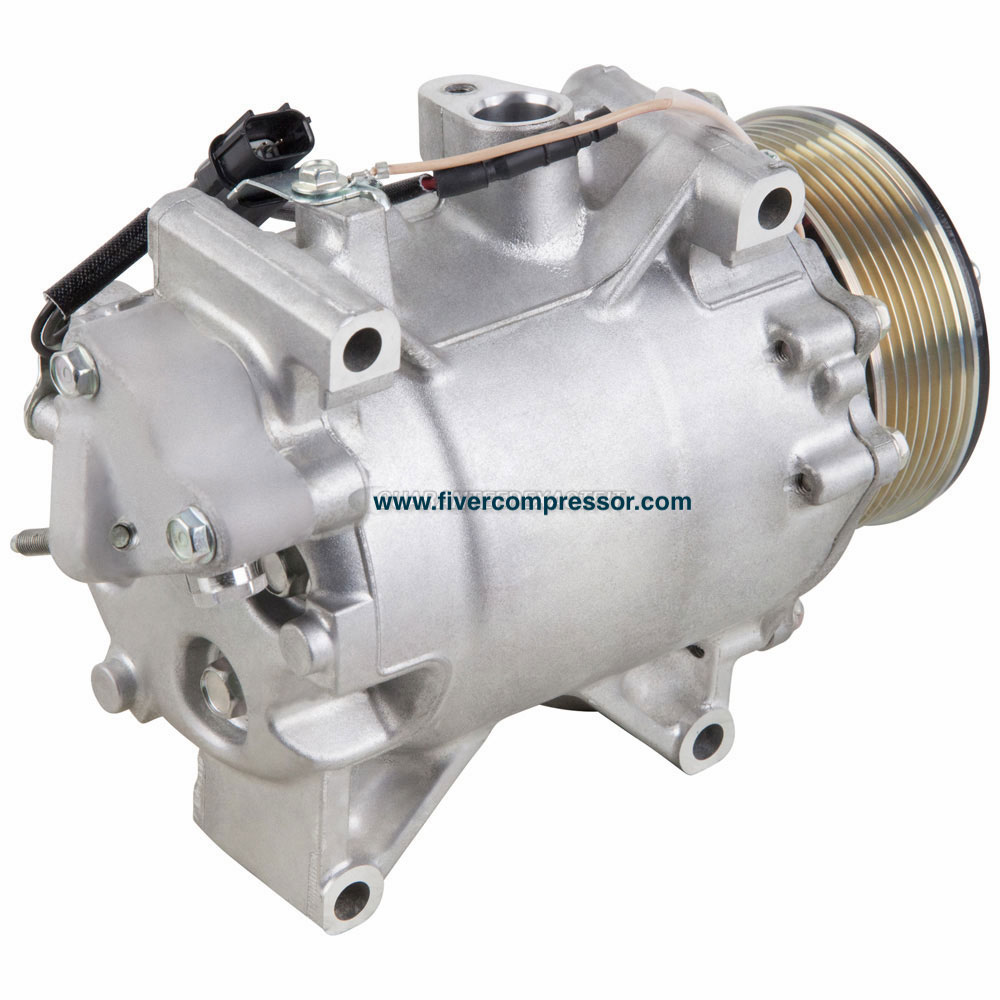

Honda TRSE09 A/C compressor

TRSE09 7PV A/C Compressor 38800-5LA-A01,388005LAA01,388005LA A010M2 for Honda CR-V 2.4L EX/LX 2015-2016 for Acura ILX 2.4L 2016-2020

OE / Part number
38800-5LA-A01, 388005LAA01, 388005LA, A010M2, 388005LAA010M2

A/C Compressor for Acura ILX 2.4L 2016-2020; Air Conditioner Compressor for Honda CR-V 2.4L EX/LX 2015-2016; Automotive A/C Compressor Supplier

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRSE09
Groove7PV

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRSE09
Groove7PV
Coil Voltage12V
OE / Part number38800-5LA-A01, 388005LAA01, 388005LA, A010M2, 388005LAA010M2
ApplicationApplications: Year

§ 04

Product details

TRSE09 7PV A/C Compressor 38800-5LA-A01,388005LAA01,388005LA A010M2 for Honda CR-V 2.4L EX/LX 2015-2016 for Acura ILX 2.4L 2016-2020

Specifications:

Compressor Type: TRSE09

Pulley Grooves: 7PV

Pulley Diameter: 115MM

Coil Voltage: 12V

Oil type: PAG 46

Oil quantity: 165ml

Refrigerant: R134a

Applications:

YearMakeModelBody & TrimEngine & Transmission
2020AcuraILXBase2.4L L4 - Gas
2019AcuraILXBase2.4L L4 - Gas
2018AcuraILXBase2.4L L4 - Gas
2017AcuraILXBase2.4L L4 - Gas
2016AcuraILXBase2.4L L4 - Gas
2016 HondaCR-VEX, EX-L, LX, SE, Touring 2.4L L4-Gas2.4L L4 - Gas
2015Honda CR-V EX, EX-L, LX, Touring 2.4L L4-Gas2.4L L4 - Gas

OE: 388005LAA01,38800-5LA-A01, 388005LAA010M2

§ 05

Similar compressors

No.CompressorClutchPulley
