Honda A/C compressor

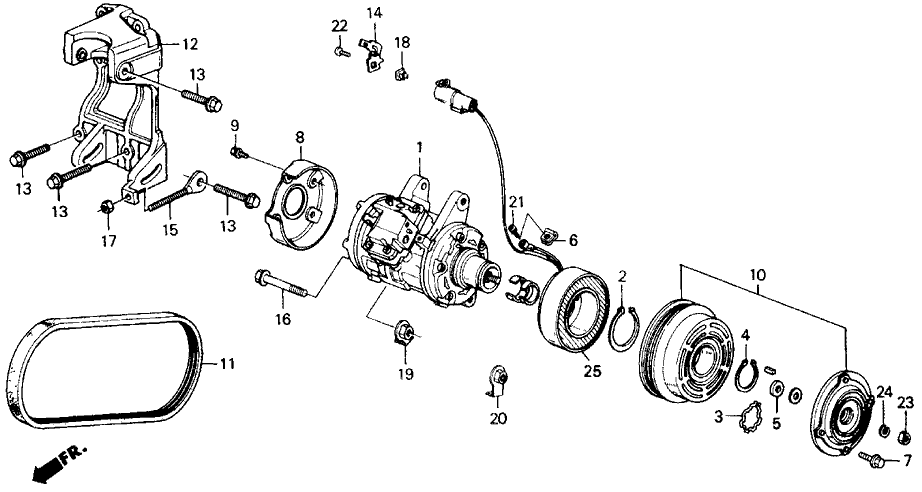

AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Honda A/C compressor

AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord

OE / Part number
38800-PH3-013, 38800PH3013

Product description: Each unit passes universal testing which includes vacuum, pressure, noise and performance; Charged with a lubricant to reduce internal friction promoting enhanced system performance and longevity;

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAC Compressor Assy / Automotive A/C Compressor Supplier / HONDA A/C Compressor / Honda Accord A/C Compressor
OE / Part number38800-PH3-013, 38800PH3013
ApplicationHonda ACCORD 1988-1989

§ 03

Product details

Part Name: COMPRESSOR ASSY FOR HONDA ACCORD

Part Number: 38800-PH3-013, 38800PH3013

Application: Honda ACCORD 1988-1989

§ 04

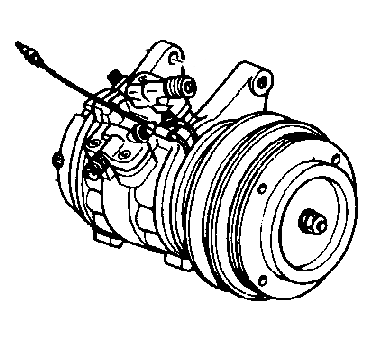

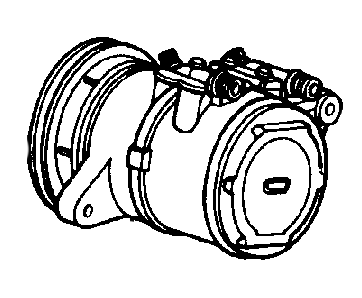

Similar compressors

No.CompressorClutchPulley
