Honda A/C compressor

Type TRSE07 TRSE07 4 Grooves Auto A/C Compressor 38810RBJA01, 38810RBJA02 for Honda CR-Z Hatchback1.5L 2 Doors 2011-2016 for Honda Insight EX/LX 1.3L… 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

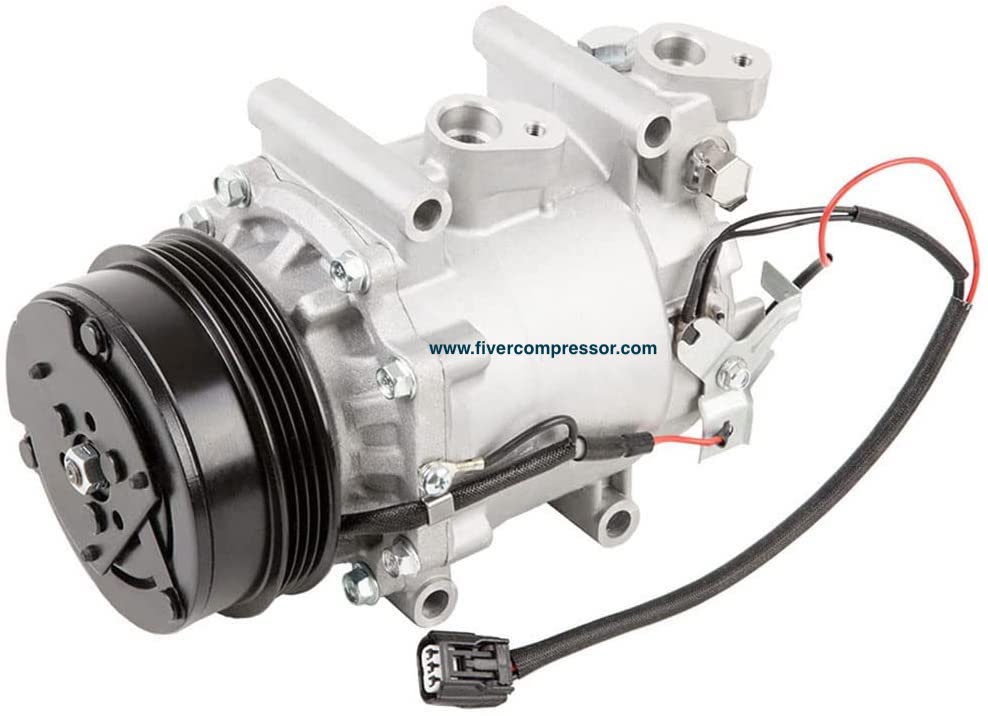

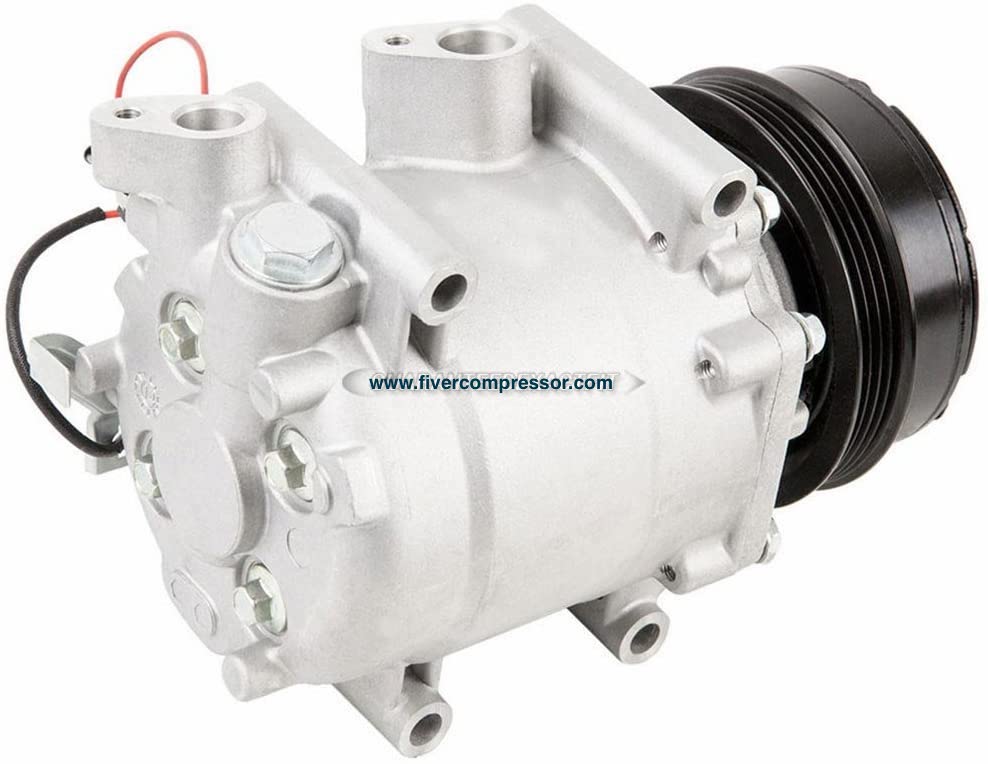

Honda TRSE07 A/C compressor

TRSE07 4 Grooves Auto A/C Compressor 38810RBJA01, 38810RBJA02 for Honda CR-Z Hatchback1.5L 2 Doors 2011-2016 for Honda Insight EX/LX 1.3L 2010-2014

OE / Part number
8810RBJA01, 38810-RBJ-A01, 38810RBJA02, 38810-RBJ-A02

Air Conditioning Compressor for Honda CR-Z Hatchback1.5L 2 Doors 2011-2016; A/C Compressor Assy for Honda Insight EX/LX 1.3L 2010-2014; Automotive A/C Compressor Supplier.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRSE07
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRSE07
Pulley Groove4PK
Coil Voltage12V
OE / Part number8810RBJA01, 38810-RBJ-A01, 38810RBJA02, 38810-RBJ-A02
ApplicationApplications: Year

§ 04

Product details

TRSE07 4 Grooves Auto A/C Compressor 38810RBJA01, 38810RBJA02 for Honda CR-Z Hatchback1.5L 2 Doors 2011-2016 for Honda Insight EX/LX 1.3L 2010-2014

Specifications
Refrigerant TypeR-134A
Pulley Groove Quantity4
Clutch IncludedYes
Belt TypeSerpentine
Coil Clock Position3 Wire Lead
Compressor TypeTRSE07
Clutch Pulley Diameter4.400
Coil Voltage12
Mounting TypeTangent Mount
Distance Between Mounting Holes1.530
Ctch Dia. MM Prmy111.760
O-Ring A Number/Desc[24681] / Green O-Ring
Discharge Port TypeO-Ring
Mount Distance MM38.862
Suction Port TypeO-Ring
O-Ring A Quantity1
Switch / Sensor DescHeat Switch
O-Ring B Quantity1
New or RemanRemanufactured
Lead WireLead Wires
Oil TypePAG 46
StylePiston


Applications:


YearMakeModelTrimEngine
2015HondaCR-ZBase Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2015HondaCR-ZEX Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2014HondaCR-ZBase Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2014HondaCR-ZEX Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2014HondaInsightBase Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2014HondaInsightEX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2014HondaInsightLX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2013HondaCR-ZBase Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2013HondaCR-ZEX Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2013HondaInsightBase Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2013HondaInsightEX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2013HondaInsightLX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2012HondaCR-ZBase Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2012HondaCR-ZEX Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2012HondaInsightBase Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2012HondaInsightEX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2012HondaInsightLX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2011HondaCR-ZBase Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2011HondaCR-ZEX Hatchback 2-Door1.5L 1497CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2011HondaInsight

Base Hatchback 4-Door

1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated



2011HondaInsightEX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2011HondaInsightLX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2010HondaInsightEX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated
2010HondaInsightLX Hatchback 4-Door1.3L 1339CC l4 ELECTRIC/GAS SOHC Naturally Aspirated

OE: 8810RBJA01 38810-RBJ-A01, 38810RBJA02 38810-RBJ-A02
