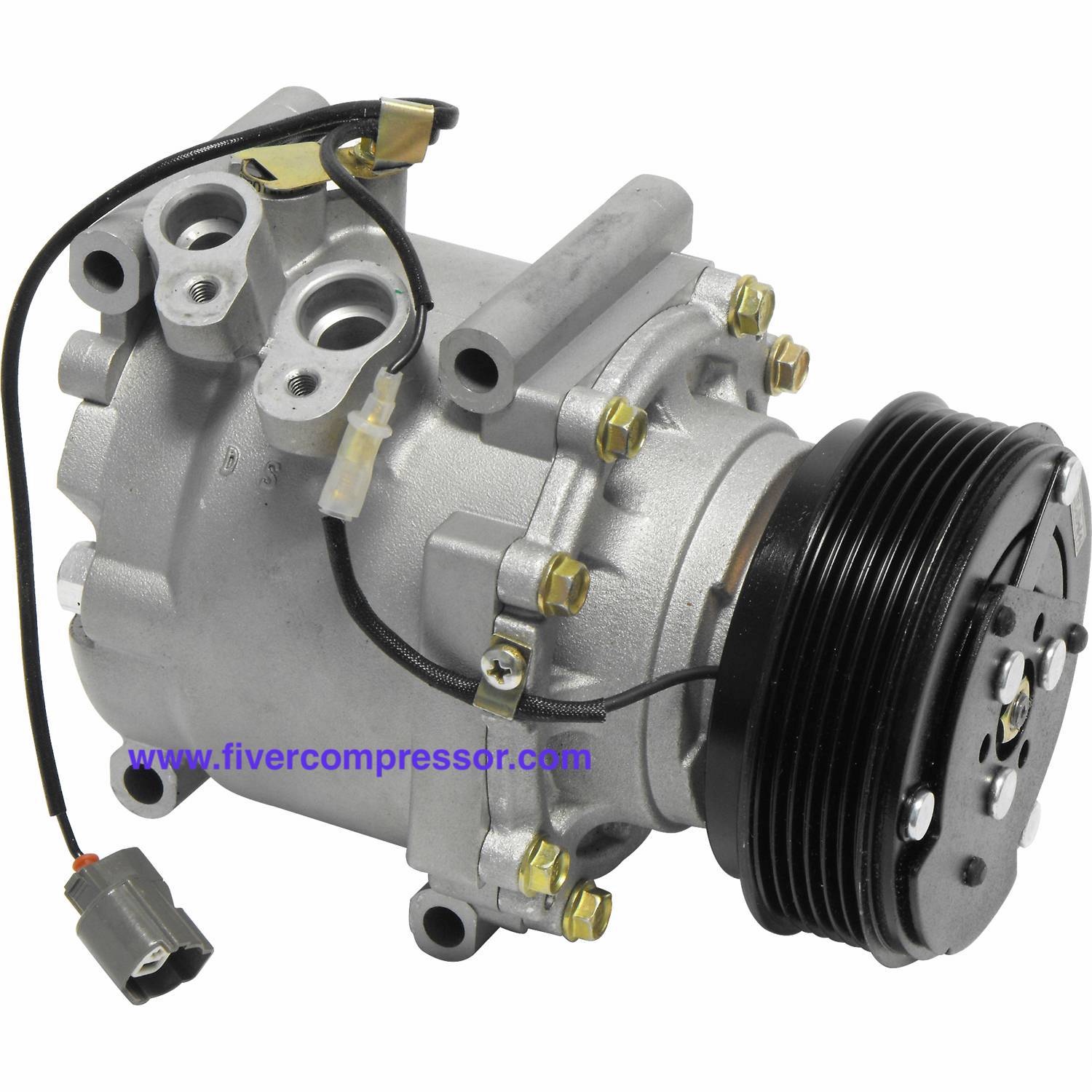

Honda A/C compressor

TRA090 Type 6 Grooves 38810P5M006 38810P5M016 38810PLMA12 38810PRA006 for Honda Civic for Honda Prelude for Acura EL 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Honda A/C compressor

TRA090 Type 6 Grooves 38810P5M006 38810P5M016 38810PLMA12 38810PRA006 for Honda Civic for Honda Prelude for Acura EL

OE / Part number
38810P5M006, 38810P5M016, 38810PLMA12, 38810PRA006

A/C Compressor for Hona Civic 1.7L 2001-2005; AC Compressor for Honda Prelude 2.2L 1997-2001; Acura EL 1.7L 2001-2005; A/C Compressor manufacturer China

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Pulley Groove6PK
Coil Voltage12V

Clutch and fitment

modelCompressor Type; TRA090

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Pulley Groove6PK
Coil Voltage12V
modelCompressor Type; TRA090
OE / Part number38810P5M006, 38810P5M016, 38810PLMA12, 38810PRA006
ApplicationModel: Compressor Type; TRA090

§ 04

Product details

TRA090 Type 6 Grooves 38810P5M006 38810P5M016 38810PLMA12 38810PRA006 for Honda Civic L4 1.7L 2001-2005 for Honda Prelude L4 2.2L 1997-2001 for Acura EL L4 1.7L 2001-2005



 Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter4.370 in
Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeHS090
Distance From Clutch To Mounting Flange0.920 IN
Mount Distance MM23.368 mm
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanRemanufactured
O-Ring A Number/Desc[24681] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24661] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM110.998 mm
Pulley Groove Quantity6
Pulley Lip Diameter4.370 in
Pulley Ridge Diameter4.370 in
Refrigerant TypeR134a


VEHICLE FITMENT

ACURAEL L4 1.7L2001-2005
HONDACIVIC. L4 1.7L2001-2005
HONDAPRELUDE. L4 2.2L1997-2001

OE: 38810P5M006 38810P5M016 38810PLMA12 38810PRA006
