Honda A/C compressor

Type HS110R Supply Quality Auto AC Compressor Replacement Type HS110R 7PK for Honda CR-V 2.4L Sport 2002-2006 OE 8810-PNB-006 38810PNB006 38870PNB006… 7PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

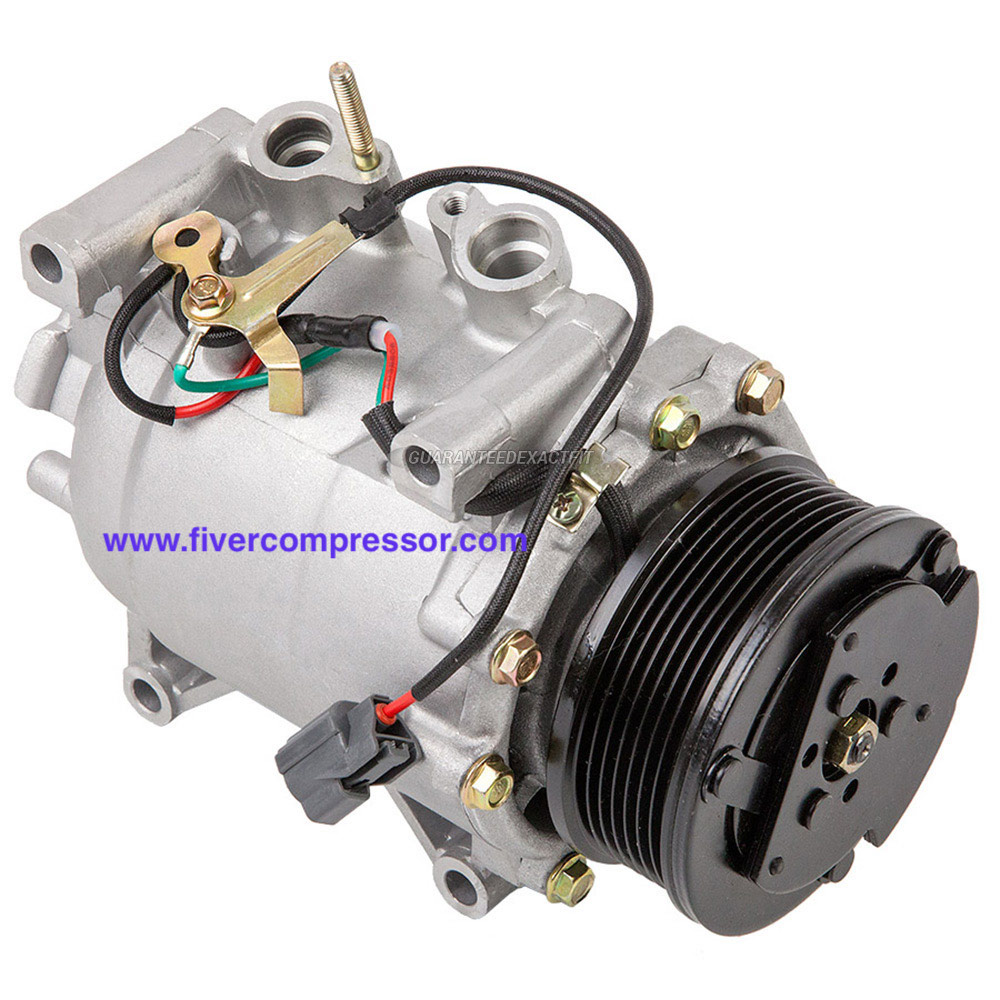

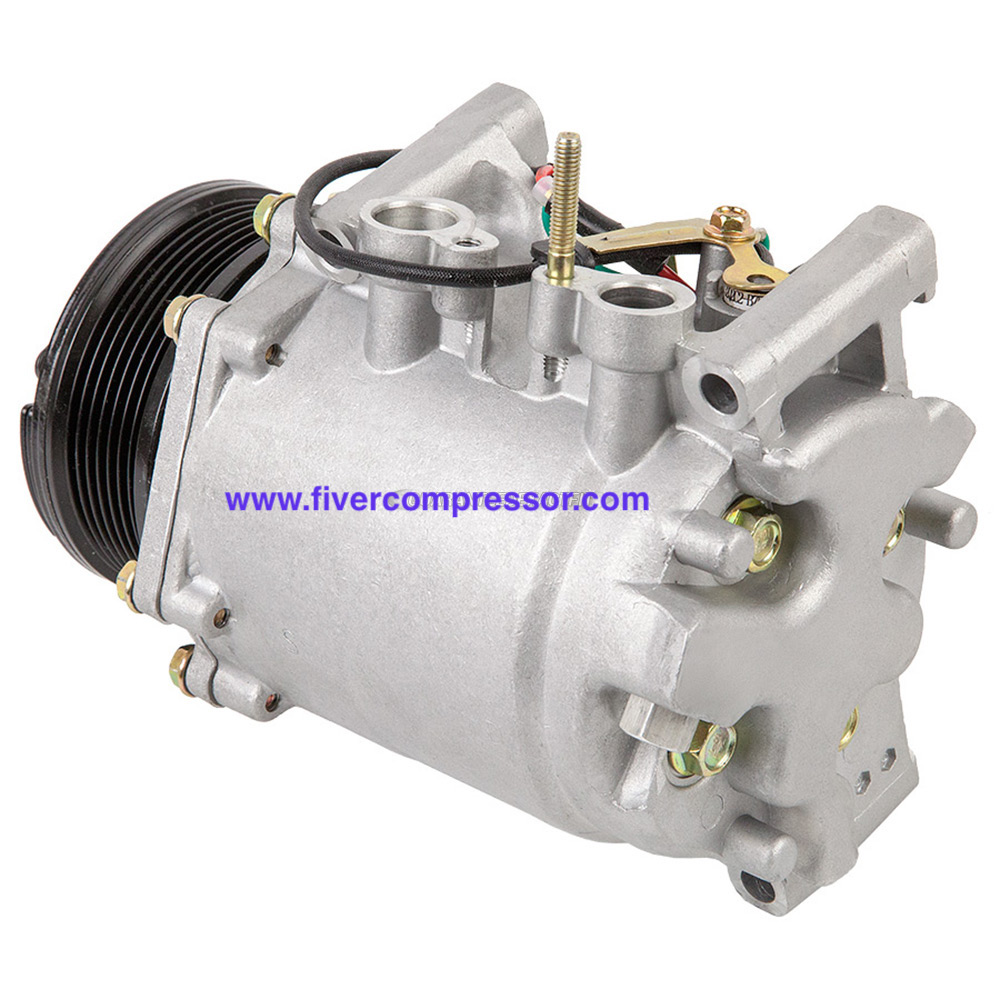

Honda HS110R A/C compressor

Supply Quality Auto AC Compressor Replacement Type HS110R 7PK for Honda CR-V 2.4L Sport 2002-2006 OE 8810-PNB-006 38810PNB006 38870PNB006 38900PNB006

OE / Part number
8810-PNB-006, 38810PNB006, 38870PNB006, 38900PNB006

Honda CR-V Sport 2.4L AC Compressor, A/C Compressor Replacement for Honda Civic 2.4L: Auto AC Compressor Repair; auto a/c compressor for Honda

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS110R
Pulley Groove7PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS110R
Pulley Groove7PK
Coil Voltage12V
OE / Part number8810-PNB-006, 38810PNB006, 38870PNB006, 38900PNB006

§ 04

Product details

Supply Quality Auto AC Compressor Replacement Type HS110R 7PK for Honda CR-V 2.4L Sport 2002-2006 OE 8810-PNB-006 38810PNB006 38870PNB006 38900PNB006

 Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter3.875 in
Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeHs110r
Distance From Clutch To Mounting Flange1.400 in
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanNew
O-Ring A Number/Desc[24681] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24661] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM98.425 MM
Pulley Groove Quantity7
Pulley Lip Diameter3.875 in
Pulley Ridge Diameter3.875 in
Refrigerant TypeR134a
Suction Port TypeO-Ring

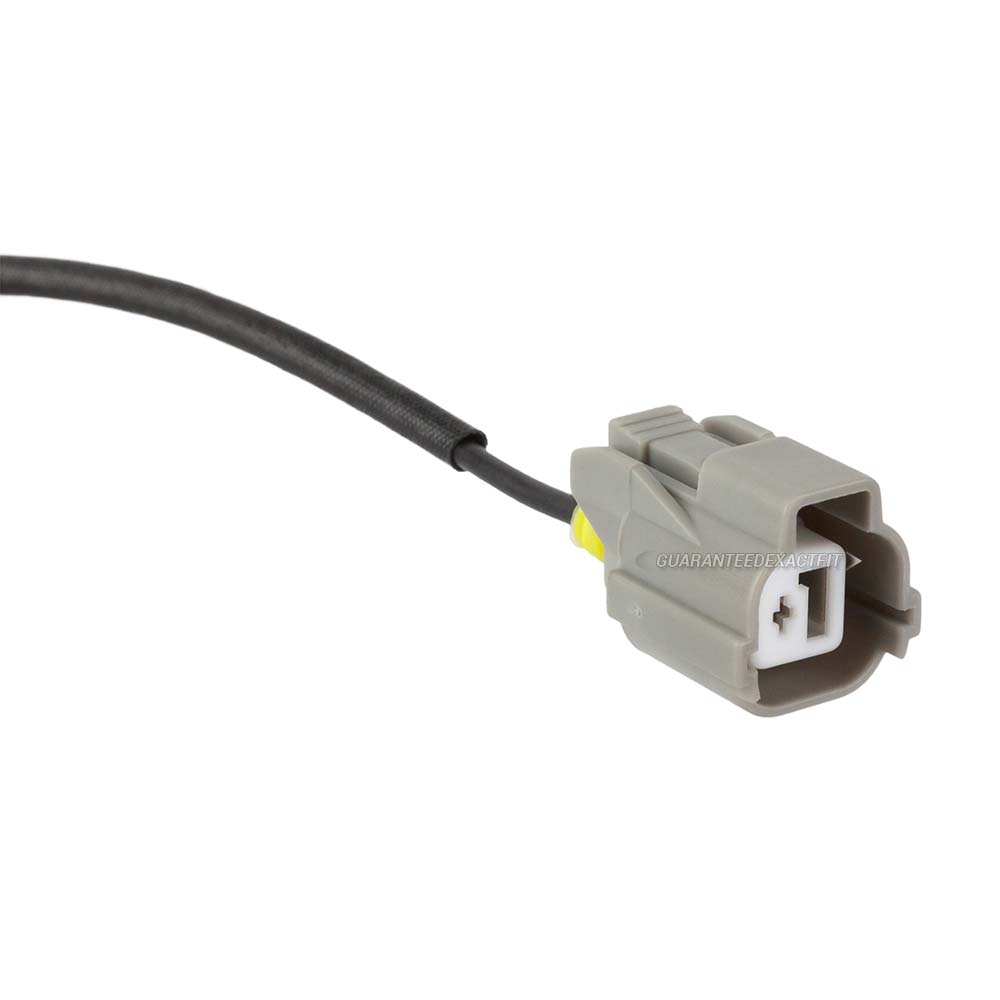

Terminal TypePin
TypeKEIHIN


VEHICLE FITMENT


YearMakeModelTrimEngine
2006HondaCR-VEX-L Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2006HondaCR-VEX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2006HondaCR-VLX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2006HondaCR-VSE Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated
2005HondaCR-VEX-L Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2005HondaCR-VEX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2005HondaCR-VLX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2005HondaCR-VSE Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2004HondaCR-VEX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2004HondaCR-VLX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated
2003HondaCR-VBase Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2003HondaCR-VEX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2003HondaCR-VLX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated
2002HondaCR-VBase Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2002HondaCR-VEX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

2002HondaCR-VLX Sport Utility 4-Door2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated

OE: 8810-PNB-006 38810PNB006 38870PNB006 38900PNB006
