Honda A/C compressor

Type TRSE07 Offer TRSE07 Auto A/C Compressor with Clutch 5PK OE 38800-RP3 -A011,38810-RP3-A01, 38810-RP3-305 38810RP3A01, 38810RP3305 for Honda Fit… 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

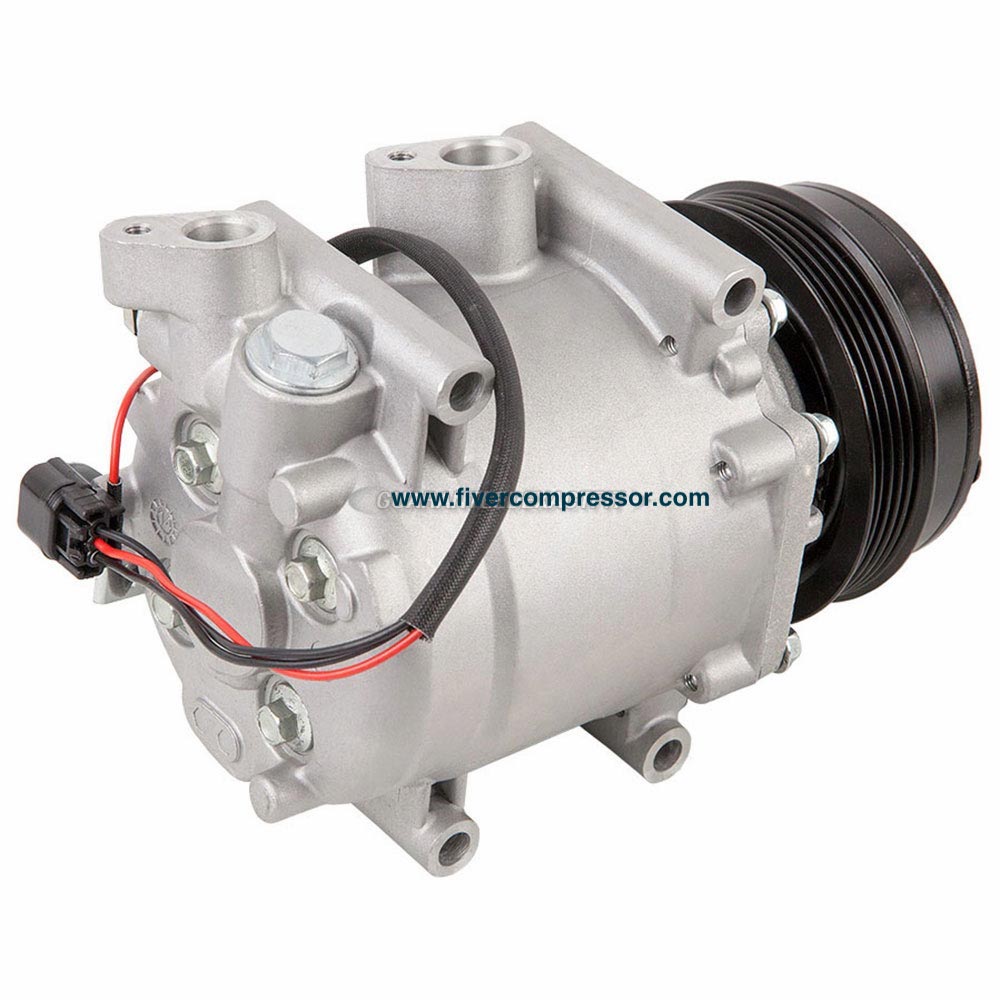

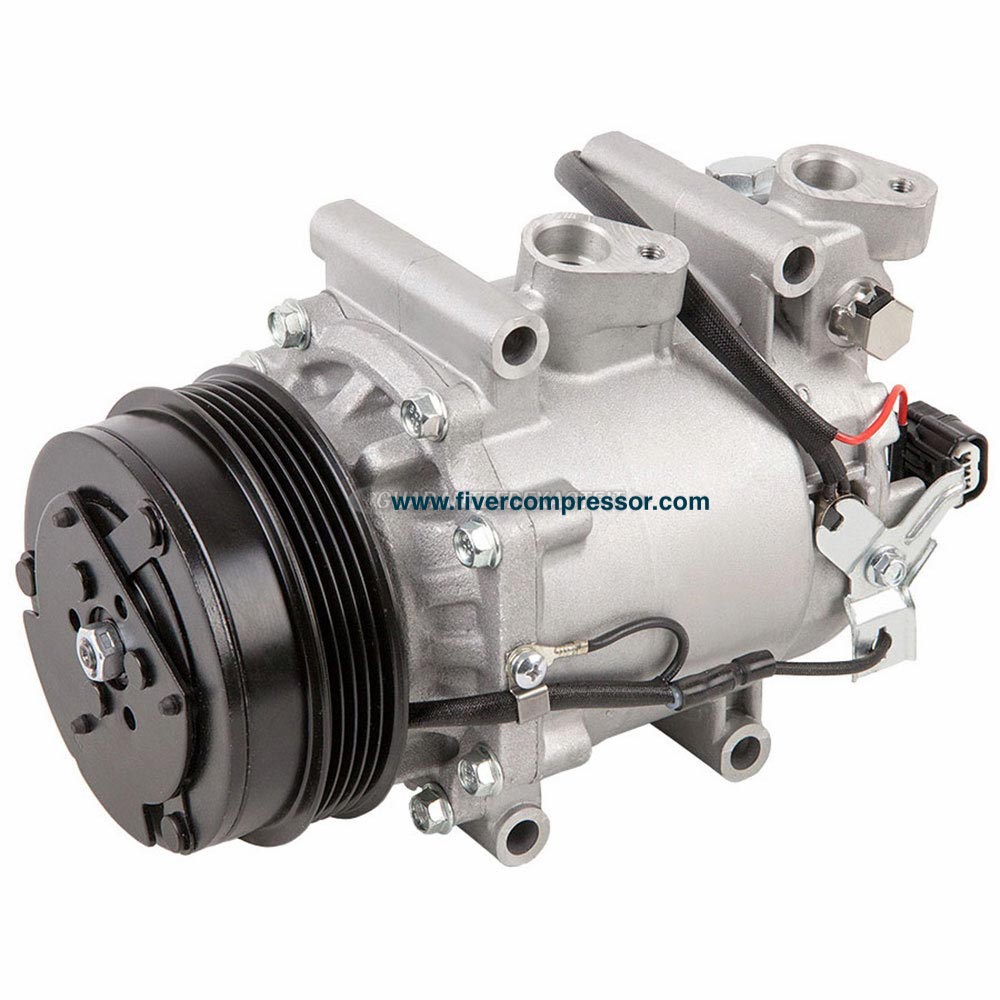

Honda TRSE07 A/C compressor

Offer TRSE07 Auto A/C Compressor with Clutch 5PK OE 38800-RP3 -A011,38810-RP3-A01, 38810-RP3-305 38810RP3A01, 38810RP3305 for Honda Fit 1.5L 2009-2013

OE / Part number
38800-RP3, 38810RP3A01, 38810RP3305, 38810-RP3-A01, 38810-RP3-305, 38800RP3A011M2, 38800RP3A03, 38800RP3A03RM

This Compressor is a OE quality replacement for TRSE07 Auto A/C Compressor with Clutch 5PK OE 38800-RP3 -A011,38810-RP3-A01, 38810-RP3-305 38810RP3A01, 38810RP3305 for Honda Fit 1.5L 2009-2013

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRSE07
Pulley Groove5PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRSE07
Pulley Groove5PK
Coil Voltage12V
OE / Part number38800-RP3, 38810RP3A01, 38810RP3305, 38810-RP3-A01, 38810-RP3-305, 38800RP3A011M2, 38800RP3A03, 38800RP3A03RM

§ 04

Product details

Offer TRSE07 Auto A/C Compressor with Clutch 5PK OE 38800-RP3 -A011,38810-RP3-A01, 38810-RP3-305 38810RP3A01, 38810RP3305 for Honda Fit 1.5L 2009-2013

Specifications
Refrigerant Type R134a
Clutch Maximum Diameter 135.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent

VEHICLE FITMENT


HONDA FIT BASE,SPORT 1.5L L4 Gas SOHC 2009-2014


Alternate/OEM Part Number(s): 3423, 3445, 3484, 38800RP3A011M2, 38800RP3A03, 38800RP3A03RM, 38810RP3305, 38810RP3A01
