Honda A/C compressor

Type 10S17C OE Equivalent 10S17C 7PK Climate Compressor 38810-PZD-A00 38800PZDA013 38810PZDA00 38810-PZD-A00 437230-5060 447220-4941 for Honda Element… 7PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

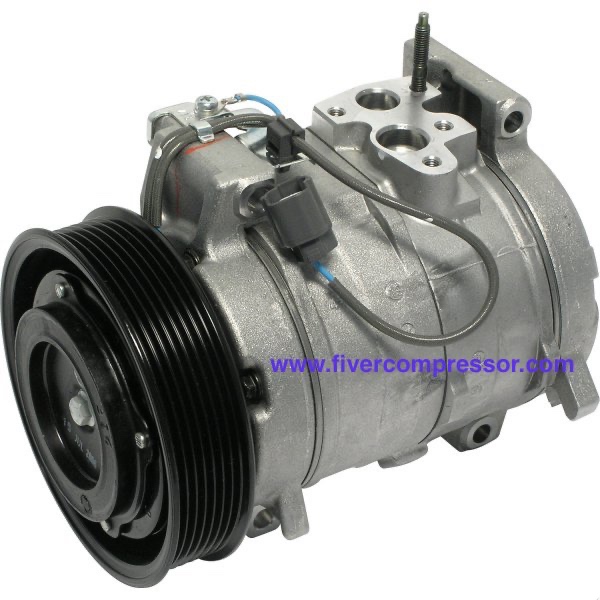

Honda 10S17C A/C compressor

OE Equivalent 10S17C 7PK Climate Compressor 38810-PZD-A00 38800PZDA013 38810PZDA00 38810-PZD-A00 437230-5060 447220-4941 for Honda Element 2.4L L4 2003-2011

OE / Part number
38810-PZD-A00, 38800PZDA013, 38810PZDA00, 437230-5060, 447220-4941, 10S17C, 255510, 275541, 4471804834

A/C Compressor for Honda Element 2.4L L4 2003-2011; Honda Element 2.4L AC Compressor; Buy A/C Compressor Online

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S17C
Pulley Groove7PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S17C
Pulley Groove7PK
Coil Voltage12V
OE / Part number38810-PZD-A00, 38800PZDA013, 38810PZDA00, 437230-5060, 447220-4941, 10S17C, 255510, 275541, 4471804834
ApplicationApplications: HONDA

§ 04

Product details

OE Equivalent 10S17C 7PK Climate Compressor 38810-PZD-A00 38800PZDA013 38810PZDA00 38810-PZD-A00 437230-5060 447220-4941 for Honda Element 2.4L L4 2003-2011

 Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter120.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 7PK
Mounting TypeBolt Tangent
Applications:
HONDAELEMENT 2.4L L42003-2011

Alternate/OEM Part Number(s): 255510, 275541, 38800PZDA013, 38810PZDA00, 447180483438810-PZD-A00 38810-PZD-A00 437230-5060 447220-4941
