Products A/C compressor

Type TRSE09 Honda Civic 1.8L R18Z1 Engine 2012-2015 Acura ILX 2.0L 2013-2016 TRSE09 6PK Air Conditioner Compressor 38810R1AA01, 38810R9AA01 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products TRSE09 A/C compressor

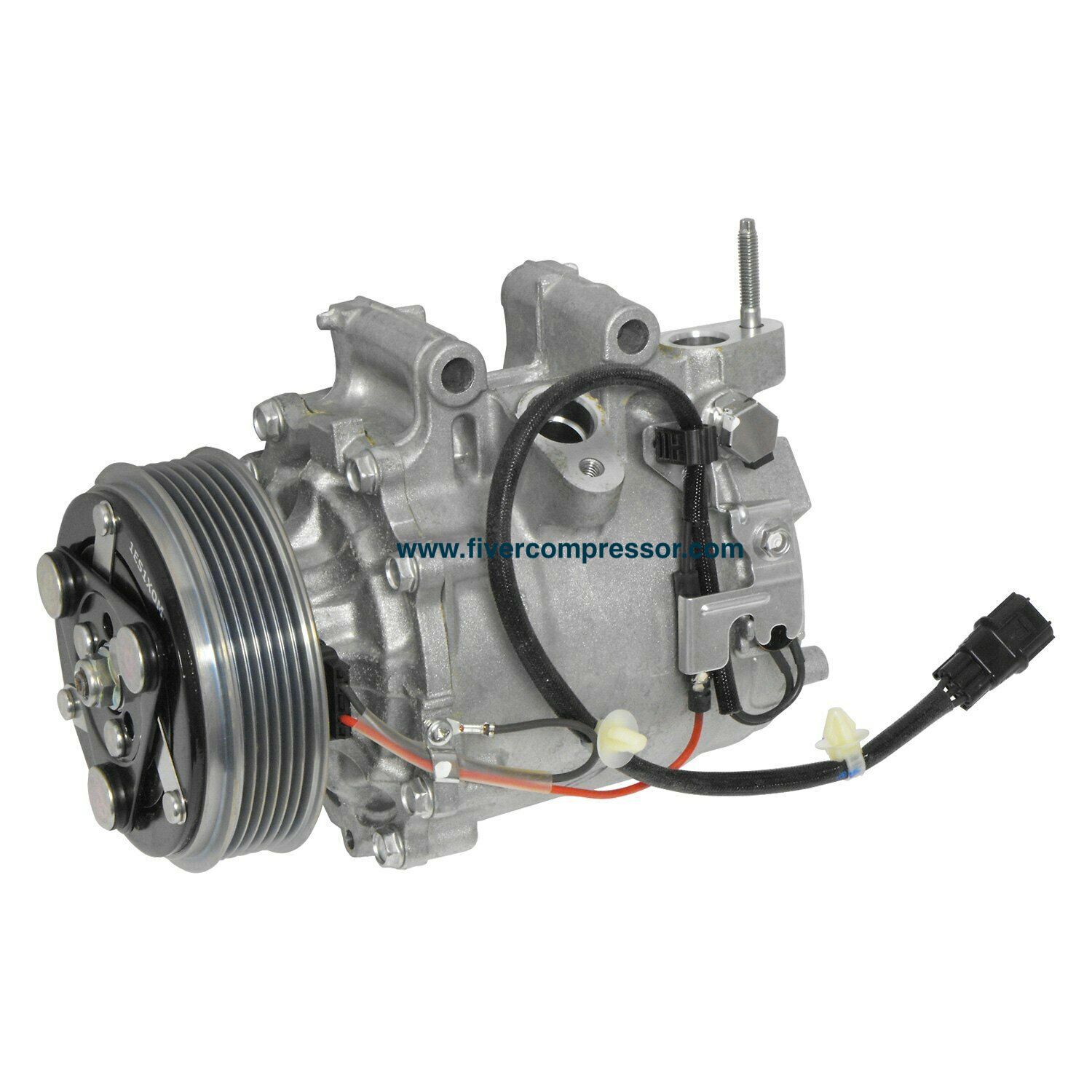

Honda Civic 1.8L R18Z1 Engine 2012-2015 Acura ILX 2.0L 2013-2016 TRSE09 6PK Air Conditioner Compressor 38810R1AA01, 38810R9AA01

OE / Part number
38810R1AA01, 38810R9AA01, 38810-R1A-A01, 38810-R9A-A01

2012-2015 Honda Civic A/C Compressor, Honda Civic Air Conditioning,A/C Compressor,Air Conditioning, TRSE09 Compressor Assembly Climate Control DX, EX, EX-L, GX, HF, LX, Natural Gas, SE, Touring, SOHC, CNG, GAS 12-15 Honda A/C Compressor. Replacement A/C Compressor Parts. 2012 2013 2014 2015

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRSE09
Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRSE09
Groove6PK
Coil Voltage12V
OE / Part number38810R1AA01, 38810R9AA01, 38810-R1A-A01, 38810-R9A-A01
ApplicationApplications: Vehicle

§ 04

Product details

Honda Civic 1.8L R18Z1 Engine 2012-2015 Acura ILX 2.0L 2013-2016 TRSE09 6PK Air Conditioner Compressor 38810R1AA01, 38810R9AA01

Specifications
Refrigerant TypeR-134A
Pulley Groove Quantity6PK
Clutch IncludedYes
Belt TypeSerpentine
Coil Clock PositionWire Lead
Compressor TypeTRSE09
Clutch Pulley Diameter4.40625"
Coil Voltage12
Mounting TypeTangent Mount
Distance Between Mounting Holes1.84375
Switch / Sensor DescHeat Switch
TypeSanden/Sankyo
Suction Port TypeO-Ring
Oil TypePAG 46
Discharge Port TypeO-Ring
New or RemanNew
O-Ring B Number/Desc[24661] / Green O-Ring
O-Ring A Quantity1
O-Ring B Quantity1
Mount Distance MM46.736
Ctch Dia. MM Prmy112.014
DescriptionCompressors - New
O-Ring A Number/Desc[24681] / Green O-Ring
StyleSCROLL
Applications:
VehicleSub ModelEngine
2012 Honda CivicEX-L1.8L 4 Cyl R18Z1 MFI Electronic SOHC GAS
2012 Honda CivicDX1.8L 4 Cyl R18Z1 MFI Electronic SOHC GAS
2012 Honda CivicLX1.8L 4 Cyl R18Z1 MFI Electronic SOHC GAS
2012 Honda CivicEX1.8L 4 Cyl R18Z1 MFI Electronic SOHC GAS
2012 Honda CivicGX1.8L 4 Cyl R18A9 MFI Electronic SOHC CNG
2012 Honda CivicHF1.8L 4 Cyl R18Z1 MFI Electronic SOHC GAS
2013 Honda CivicHF1.8L 4 Cyl R18Z1 SOHC GAS
2013 Honda CivicNatural Gas1.8L 4 Cyl R18A9 SOHC CNG
2013 Honda CivicDX1.8L 4 Cyl R18Z1 SOHC GAS
2013 Honda CivicTouring1.8L 4 Cyl R18Z1 SOHC GAS
2013 Honda CivicLX1.8L 4 Cyl R18Z1 SOHC GAS
2013 Honda CivicEX-L1.8L 4 Cyl R18Z1 SOHC GAS
2013 Honda CivicEX1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicTouring1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicEX-L1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicEX-L1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicLX1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicLX1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicEX1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicHF1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicDX1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicEX1.8L 4 Cyl R18Z1 SOHC GAS
2014 Honda CivicNatural Gas1.8L 4 Cyl R18A9 SOHC CNG
2015 Honda CivicLX1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicNatural Gas1.8L 4 Cyl R18A9 SOHC CNG
2015 Honda CivicEX1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicEX-L1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicEX-L1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicSE1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicHF1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicEX1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicTouring1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicLX1.8L 4 Cyl R18Z1 SOHC GAS
2015 Honda CivicDX

1.8L 4 Cyl R18Z1 SOHC GAS

2013 Acura ILX Base Sedan 4-Door 2.0L 1997CC 122Cu. In. l4 GAS SOHC
2014 Acura ILX Base Sedan 4-Door 2.0L 1997CC 122Cu. In. l4 GAS SOHC

2015 Acura ILX Base Sedan 4-Door 2.0L 1997CC 122Cu. In. l4 GAS SOHC


OE: 38810R1AA01, 38810R9AA01; 38810-R1A-A01, 38810-R9A-A01
