Products A/C compressor

Type HS15 HS15 4PK Auto A/C Compressors 1K2NA61450C, 1K2NA61L10, 1K2N5-61450A for Hyundai Genesis 5.0L 2015-2016 for Kia Sephia and Kia Spectra 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products HS15 A/C compressor

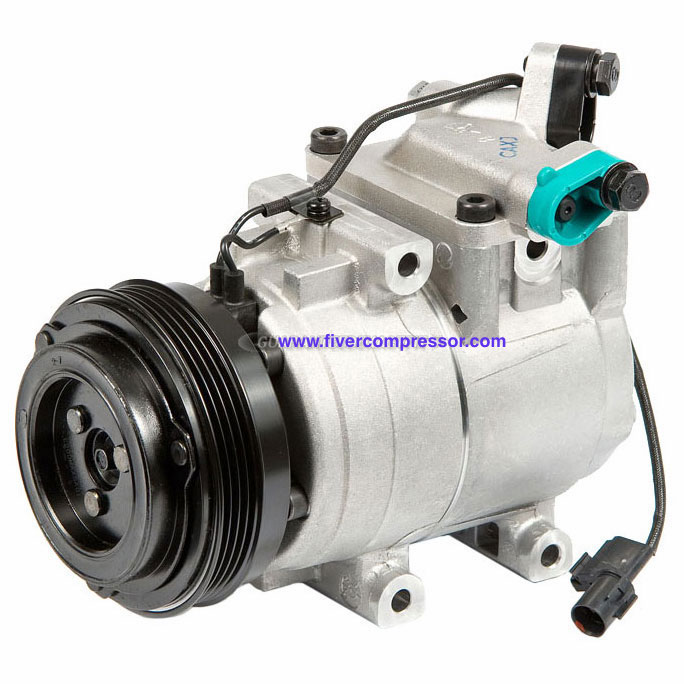

HS15 4PK Auto A/C Compressors 1K2NA61450C, 1K2NA61L10, 1K2N5-61450A for Hyundai Genesis 5.0L 2015-2016 for Kia Sephia and Kia Spectra

OE / Part number
1K2N561450A, 1K2NA61450, 1K2NA61450A, 1K2NA61450C, 255289, 275490, RK2NA61450U

Automotive A/C Compressor for Hyundai Genesis 5.0L; Kia Sephia Air-con Compressor; Kia Spectra ac compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS15
Pulley Grooves4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS15
Pulley Grooves4PK
Coil Voltage12V
OE / Part number1K2N561450A, 1K2NA61450, 1K2NA61450A, 1K2NA61450C, 255289, 275490, RK2NA61450U

§ 04

Product details

HS15 4PK Auto A/C Compressors 1K2NA61450C, 1K2NA61L10, 1K2N5-61450A for Hyundai Genesis 5.0L 2015-2016 for Kia Sephia 1999-2001 and Kia Spectra 2001-2004

 Specifications
Clutch Maximum Diameter115.0 MM
Compressor Mount Hole Quantity4
Compressor TypeHS15
Mounting TypeBolt Tangent
Oil Included in Compressor (cc)150 cc
Oil Included in Compressor (oz)5.1 oz
Oil TypePAG-FD46XG
Pulley Belt TypeSerpentine
Refrigerant TypeR134a
Vehicle Fitment

1999 Kia Sephia with HS15 compressor

2000 Kia Sephia All Models

2001 Kia Sephia All Models


2015 Hyundai Genesis 5.0L Engine
2016 Hyundai Genesis 5.0L Engine

2000 Kia Spectra 1.8L Engine

2001 Kia Spectra All Models

2002 Kia Spectra All Models

2003 Kia Spectra All Models

2004 Kia Spectra All Models


Alternate/OEM Part Number(s): 1K2N561450A, 1K2NA61450, 1K2NA61450A, 1K2NA61450C, 255289, 275490, RK2NA61450U
