Products 10PA20C A/C compressor

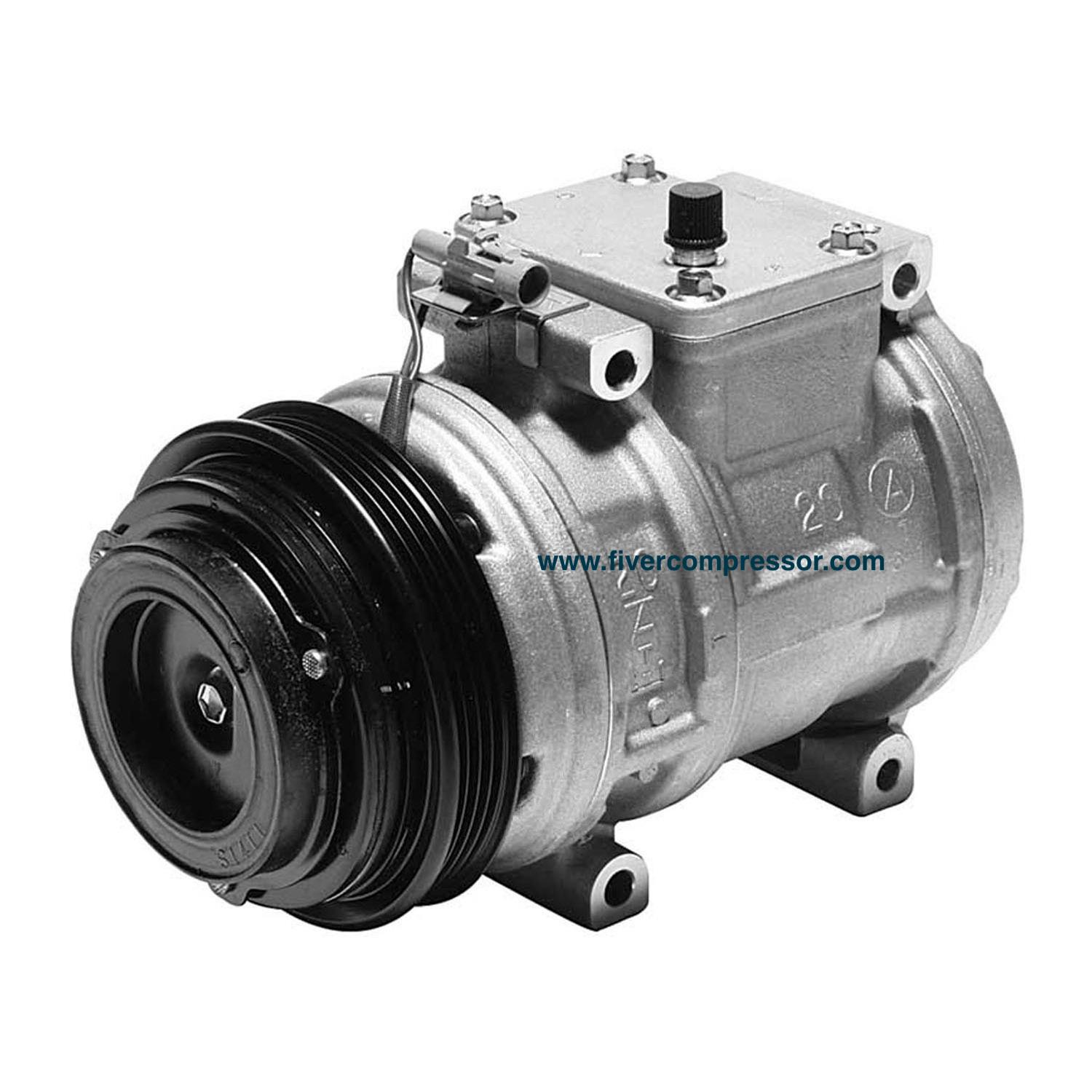

Denso 10PA20C Groove 4PK 12V A/C Compressor 88320-22580, 8832022580,8831022560 for Toyota CRESSIDA/ CRESSIDA WAGON MX83 Grade GLX 1988-1992

OE / Part number
88320-22580, 8832022580, 8831022560, 1471006073, 254162, 254286, 4711149

This Compressor is a replacement for A/C Compressor 88320-22580, 8832022580,8831022560 for Toyota CRESSIDA/ CRESSIDA WAGON MX83 Grade GLX 1988-1992

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA20C
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA20C
Groove4PK
Coil Voltage12V
OE / Part number88320-22580, 8832022580, 8831022560, 1471006073, 254162, 254286, 4711149
ApplicationApplications: Toyota

§ 04

Product details

Denso 10PA20C Groove 4PK 12V A/C Compressor 88320-22580, 8832022580,8831022560 for Toyota CRESSIDA/ CRESSIDA WAGON MX83 Grade GLX 1988-1992

 Specifications
Refrigerant TypeR12
Clutch Maximum Diameter120.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 4PK
Mounting TypeBolt Tangent
Applications:

Toyota

CRESSIDA/ CRESSIDA WAGON

MX83L-AEPQFA | FrameMX83gradeGLXbodySED | ENGINE7MGE | ATM | 08.1988To07.1992 | 4FC | USA |

MX83L-AEPQFK | FrameMX83gradeGLXbodySED | ENGINE7MGE | ATM | 08.1988To07.1992 | 4FC | CAD |


Alternate/OEM Part Number(s): 1471006073, 254162, 254286, 4711149, 8831022560, 8832022580
