FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Honda A/C compressor

Type 10PA17C Denso 10PA17C 5 Grooves Auto A/C Compressor 38810PT001, 38900PT0013, 38900-PT0-013 for Honda Accord 2.2L L4 1990-1993 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

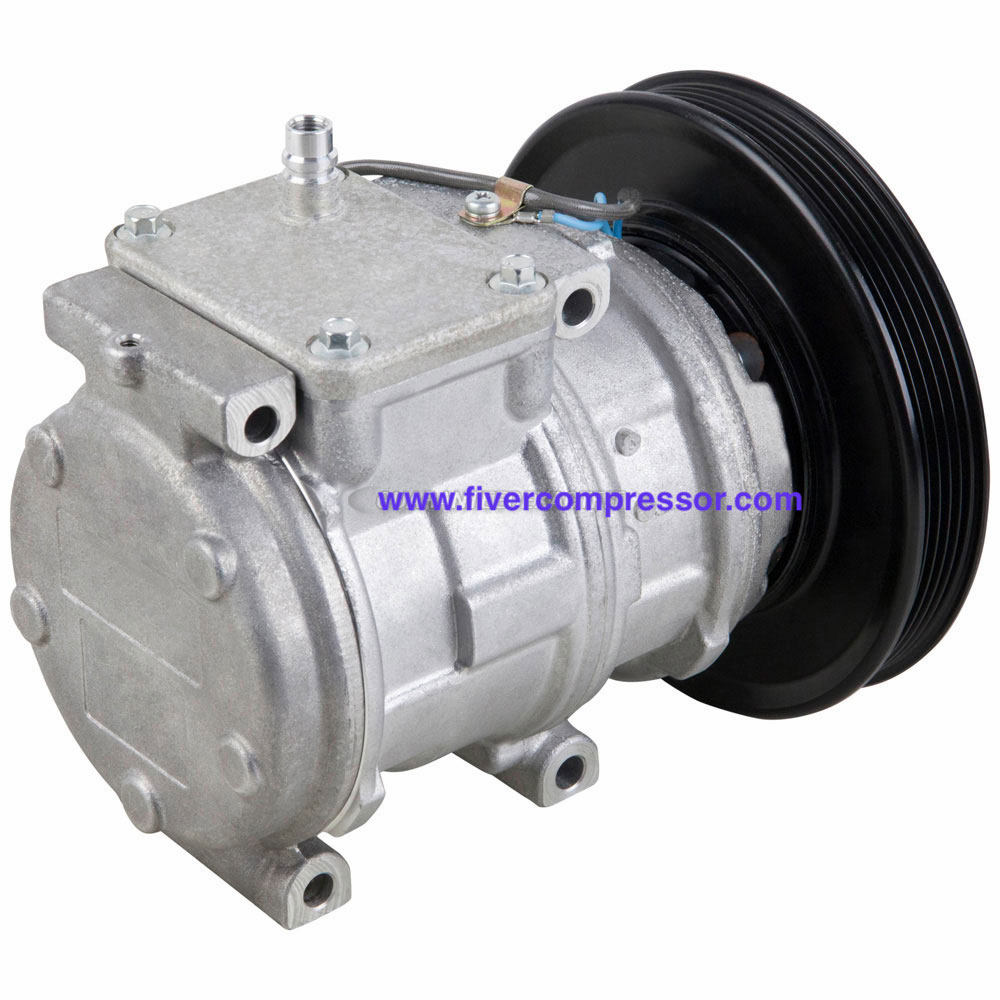

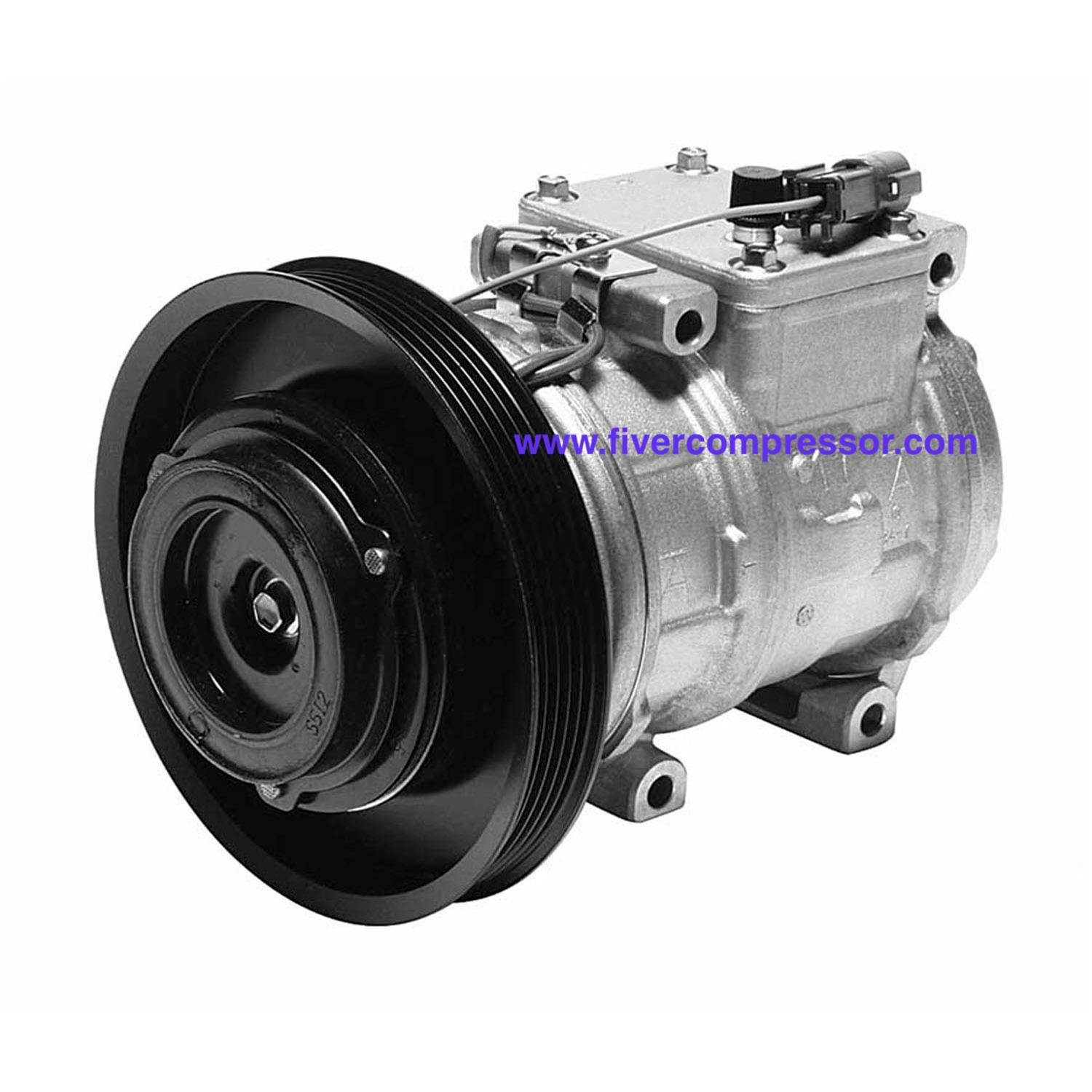

Honda 10PA17C A/C compressor

Denso 10PA17C 5 Grooves Auto A/C Compressor 38810PT001, 38900PT0013, 38900-PT0-013 for Honda Accord 2.2L L4 1990-1993

OE / Part number
38810PT001, 38900PT0013, 38900-PT0-013, 06388PT3505RM, 06388PV1505RM, 1471008165, 254259, 274359, 38800PT00034, 38810PT0013, 38810PT6A04, 4710186

AC Compressor for Honda Accord 2.2L 1990-1993; Honda Accord A/C Compressor; AC Compressor Replacement for Honda Accord 2.2L 1990-1993

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA17C
Pulley Groove5PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA17C
Pulley Groove5PK
Coil Voltage12V
OE / Part number38810PT001, 38900PT0013, 38900-PT0-013, 06388PT3505RM, 06388PV1505RM, 1471008165, 254259, 274359, 38800PT00034, 38810PT0013, 38810PT6A04, 4710186

§ 04

Product details

Denso 10PA17C 5 Grooves Auto A/C Compressor 38810PT001, 38900PT0013, 38900-PT0-013 for Honda Accord 2.2L L4 1990-1993

Specifications
Refrigerant TypeR12
Clutch Maximum Diameter160.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 5PK
Mounting TypeBolt Tangent

VEHICLE FITMENT

YearMakeModelBody & TrimEngine & Transmission
1993HondaAccord10th Anniversary, DX, EX, LX2.2L L4 - Gas
1992HondaAccordDX, EX, LX2.2L L4 - Gas
1991HondaAccordDX, EX, LX, SE2.2L L4 - Gas
1990HondaAccordDX, EX, LX2.2L L4 - Gas


Alternate/OEM Part Number(s): 06388PT3505RM, 06388PV1505RM, 1471008165, 254259, 274359, 38800PT00034, 38810PT0013, 38810PT6A04, 4710186

§ 05

Similar compressors

No.CompressorClutchPulley
